Grundfos 92591049 - CRN 20-3 A-FGJ-A-K-HQQK | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92591049

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 92591049 - CRN 20-3 A-FGJ-A-K-HQQK is a vertical multistage centrifugal pump suited for industrial and commercial fluid-handling systems, used by maintenance technicians and service shops for high-pressure inline applications.

Key features

  • Vertical multistage centrifugal design for compact, high-pressure pumping
  • Configured for inline installation and service replacement (tags indicate centrifugal, multi-stage, vertical)
  • Provides reliable pressure boosting and efficient staged flow for consistent system performance

Applications

Typical uses include water transfer, pressure boosting, boiler feed, RO and filtration support, and other high-pressure inline industrial or commercial services.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92591049

EAN 5715116741307
Actual impeller diameter 4.13 in
Approvals CE
Code for rubber K
Code for shaft seal HQQK
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Flange rating inlet 300 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 104.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range 32 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 206 ft
Maximum operating pressure 25 bar
Model A
Motor 213TC
Motor standard NEMA
Net weight 86.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3467 rpm
Pump version A
Rated flow 111 US gpm
Rated head 159.1 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber K
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 3
Standard NEMA
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

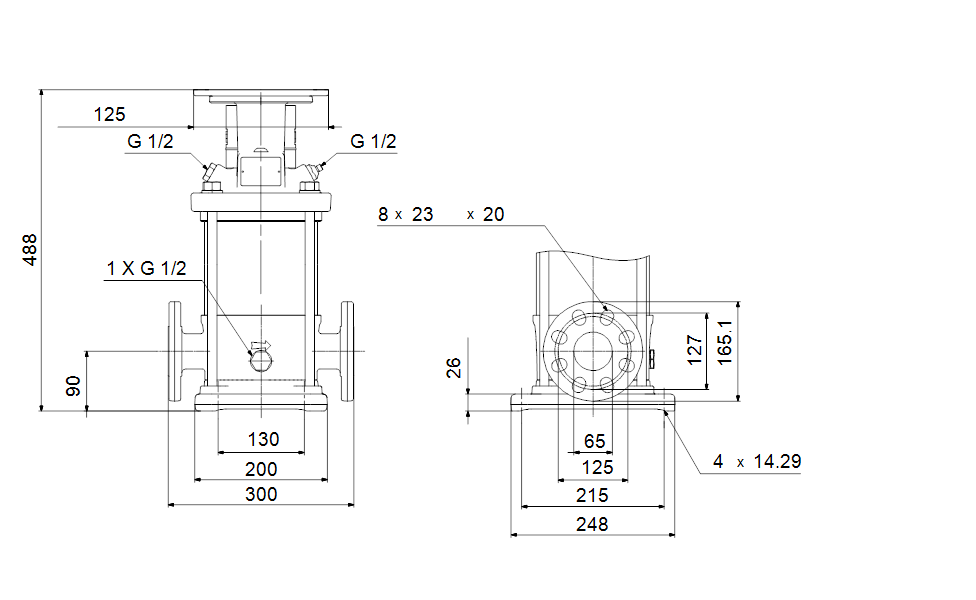

Dimensional Drawing
