Grundfos 97734994 - CRN 20-2 H-G05-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $3,529.72
GRUNDFOSSKU: 97734994

Price:
Sale price$4,717.28 Regular price$8,247.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97734994 - CRN 20-2 H-G05-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for boosting pressure in water supply systems, HVAC applications, and other demanding environments.

This model features a robust construction and advanced design, ensuring optimal performance and longevity. The CRN series is known for its versatility and ability to handle various fluids, making it suitable for both commercial and industrial use. With its multi-stage design, the CRN 20-2 provides high pressure and flow rates, meeting the needs of diverse applications.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches, and our team is here to help if you're having trouble locating the right item.

Explore our extensive range of Grundfos centrifugal pumps, including single and multi-stage options, and discover the perfect solution for your pumping needs.

Approvals on nameplate CURUS
Bearing 1 SIC
Built-in motor protection PTC
Code for rubber V
Code for shaft seal HQQV
Connect code G05
Connection PN 16
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 150 lb
Flange size for motor 182TC
Frequency 60 Hz
Frequency converter NONE
Gross weight 362.0 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency Product name:CRN 20-2 H-G05-A-V-HQQV
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
IP Class 55 Dust/Jetting
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum ambient temperature 140 °F
Maximum head 135.5 ft
Maximum operating pressure 232.06 psi
Model A
Motor 182TC
Motor efficiency at 1/2 load 86.9-84.7 %
Motor efficiency at 3/4 load 88.5-87.3 %
Motor efficiency at full load 1 88.5-88.5 %
Motor standard NEMA
Motor type 112CA
n rpm F
Net weight 198.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 kW 5.5 HP
Phase 3
Power (P2) required by pump 5.5 HP
Power factor 1 0.89-0.86
Pressure rating for connection PN 16
Pressure sensor N
Pump 5.5 HP
Pump version H
Rated current 14,1-13,1/7,29 A
Rated flow 88.1 US gpm
Rated head 113.2 ft
Rated power - P2 5.5 HP
Rated speed 3525-3540 rpm
Rated voltage 3 x 208-230YY/460Y V
Rubber V
Sales region USA
Service factor 1.15
Shaft Product name:CRN 20-2 H-G05-A-V-HQQV
Shaft seal HQQV
Stages 2
Standard NEMA
Starting current 1000-1470 %
Type 112CA
Version H

Motor Curves

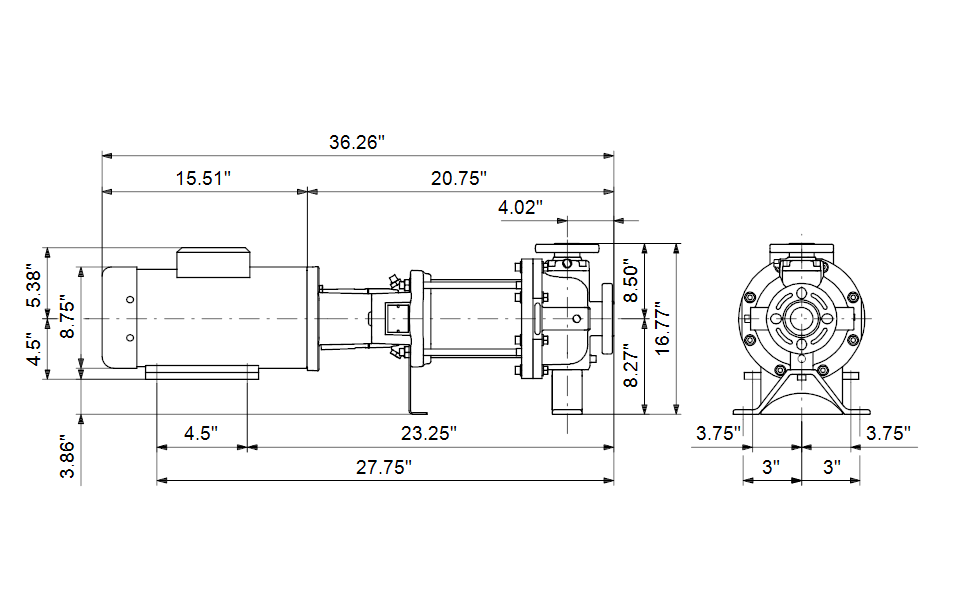

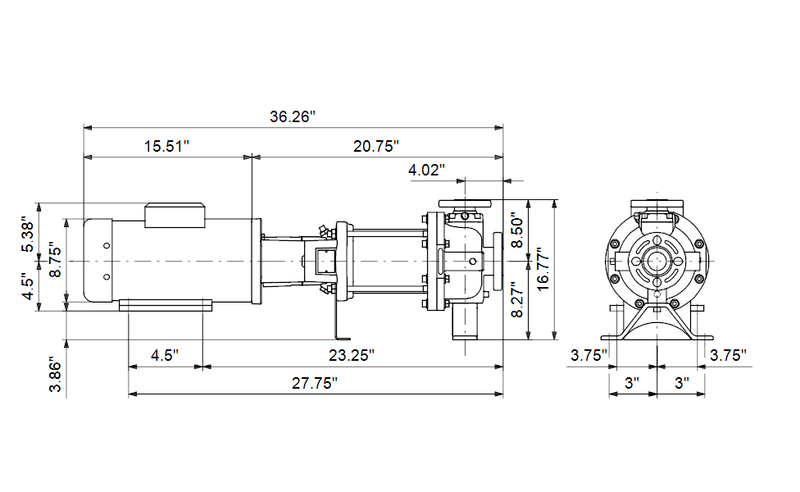

Dimensional Drawing

DWiring Diagram
