Description
Overview

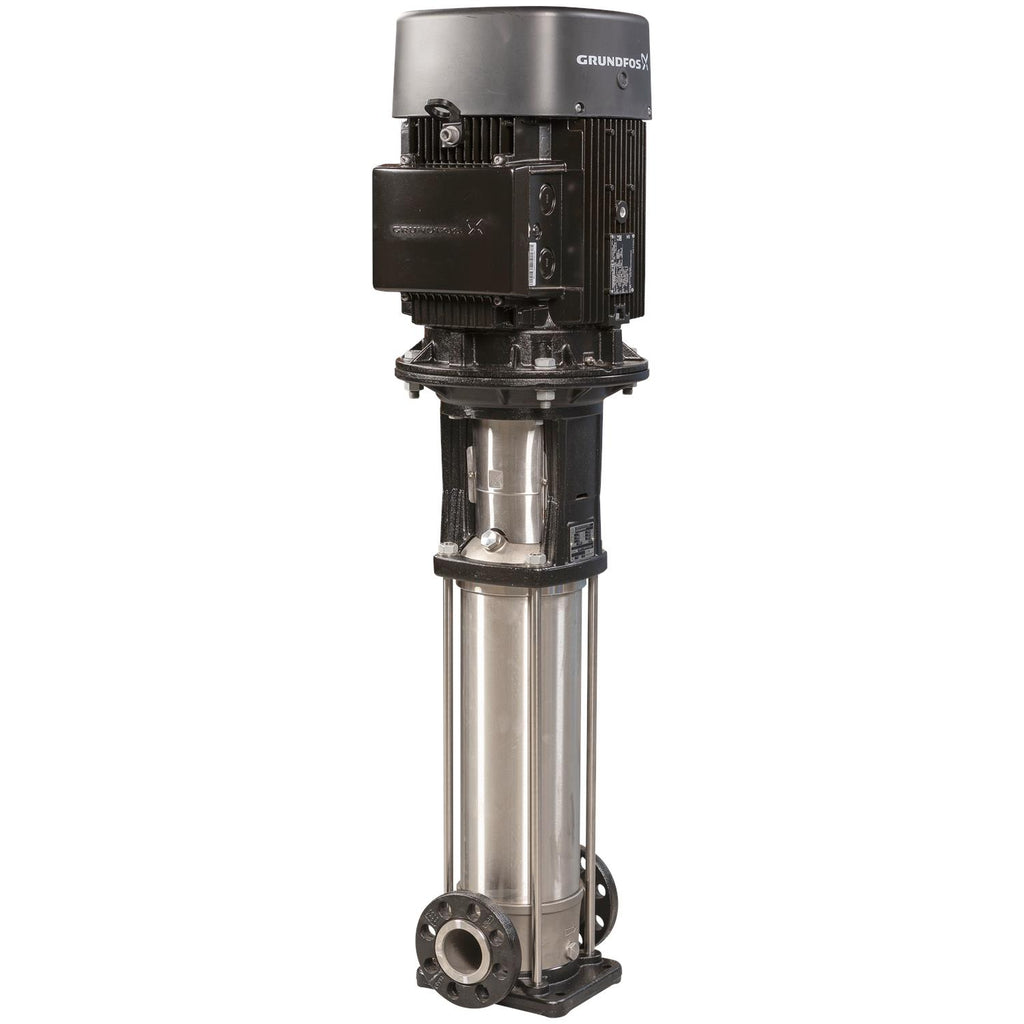

Grundfos 96500403 is a vertical, multistage centrifugal pump suited for industrial and commercial fluid transfer. It fits installations requiring high-pressure, in-line vertical pumping and is used by maintenance teams and system integrators.
Key features
- Multistage centrifugal design for high head and efficient performance
- Configured for vertical, in-line installations and high-pressure service
- Robust construction for industrial applications and reliable duty cycles
Applications
Typical uses include boiler feed, high-pressure water supply, HVAC systems, process boosting, and other industrial liquid transfer tasks where vertical multistage pumps are specified.
Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.
SKU: 96500403
Motor Curves
Dimensional Drawing
DWiring Diagram
CR, CRN, CRI, CRT, Removal of TRANSPORT BRACKET (Quick Guide)
CRN PUMP MODEL GS (Product brochure)
Grundfos solar surface pump (Installation and operating instructions)
CR, CRI, CRN 10/15/20 Chamber stack (Service kit Instruction)
CR, CRI, CRN 1, 3 , 5, 32, 45, 90 Bearing flange (Service kit instruction)
CR, CRI, CRN (Service Kit Catalogue)
CR, CRI, CRN 1 to 150 (Recommended spare parts) (Service Kit Catalogue)
Couplings (Service kit instruction)
CR, CRI, CRN - Coupling/shaft seal (Service kit instruction)
