Grundfos 97740143 - CRN 20-10 H-G05-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $5,732.63
GRUNDFOSSKU: 97740143

Price:
Sale price$7,661.37 Regular price$13,394.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97740143 - CRN 20-10 H-G05-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver reliable and efficient performance in demanding environments.

This model features a robust construction and advanced design, making it suitable for various fluid handling tasks. It is categorized under Grundfos Centrifugal Pumps, specifically within the Multi-Stage and Horizontal Multistage types, ensuring versatility and adaptability for your pumping needs.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches, ensuring compatibility and optimal performance. If you encounter any difficulties in locating the right item, our team is here to help!

Approvals on nameplate CE
Bearing 1 SIC
Code for rubber V
Code for shaft seal HQQV
Connect code G05
Connection PN 25
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 284TC
Frequency converter NONE
Gross weight 315.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum head 676.2 ft
Maximum operating pressure 362.59 psi
Model A
Motor 284TC
Motor standard NEMA
n rpm 3521rpm
Net weight 152.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump Y
Pump version H
Rated flow 101 US gpm
Rated head 555.1 ft
Rubber V
Sales region USA
Shaft Product name:CRN 20-10 H-G05-A-V-HQQV
Shaft seal HQQV
Stages 10
Standard NEMA
Version H

Motor Curves

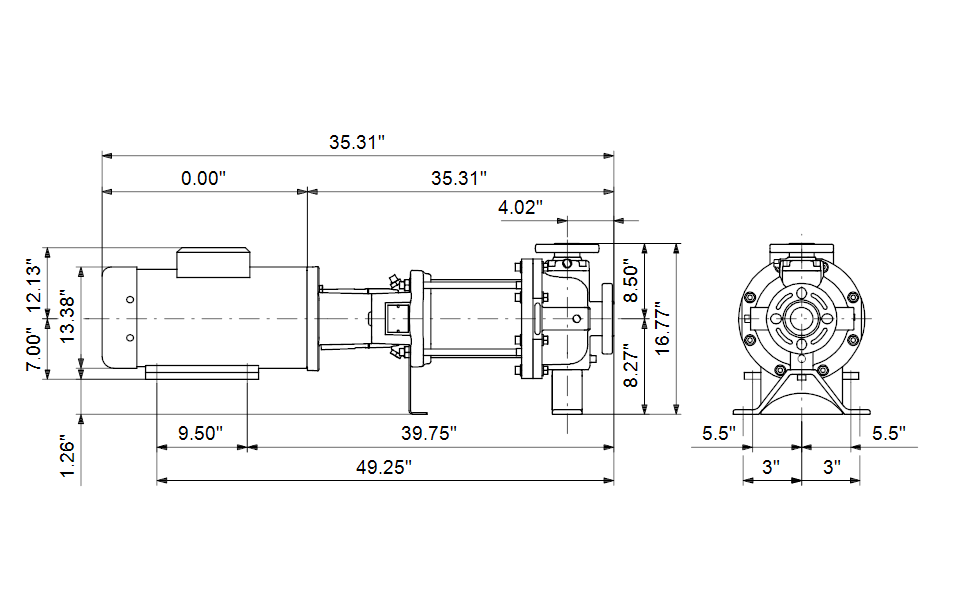

Dimensional Drawing
