Grundfos 97739944 - CRN 20-10 H-GA-A-E-HQQE | Horizontal | End Suction

Save $5,715.08
GRUNDFOSSKU: 97739944

Price:
Sale price$7,637.92 Regular price$13,353.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRN 20-10 H-GA-A-E-HQQE CR-H pumps are horizontal end suction pumps typically mounted on baseplates. The end suction design enables the pump to be installed horizontally in traditional, end suction design piping where the pump has an axial suction port and a radial center line discharge port. This design allows “back pull-out” capability. This means the pump usually can be easily serviced without removing the volute from the pipe system. CR-H pumps can be selected that meet ASME B73. 1 dimensional standards for suction and discharge piping as well as many of the baseplate dimensional standards. CR-H pumps do not fully comply with the ASME B73. 1 specification.

Approvals on nameplate CE,NSF/ANSI 61
Bearing 1 SIC
Code for rubber E
Code for shaft seal HQQE
Connect code GA
Connection PN 25
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 284TC
Frequency converter NONE
Gross weight 269.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Maximum head 676.2 ft
Maximum operating pressure 362.59 psi
Model A
Motor 284TC
Motor standard NEMA
n rpm 3521rpm
Net weight 148.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump Y
Pump version H
Rated flow 101 US gpm
Rated head 555.1 ft
Rubber E
Sales region USA
Shaft Product name:CRN 20-10 H-GA-A-E-HQQE
Shaft seal HQQE
Stages 10
Standard NEMA
Version H

Motor Curves

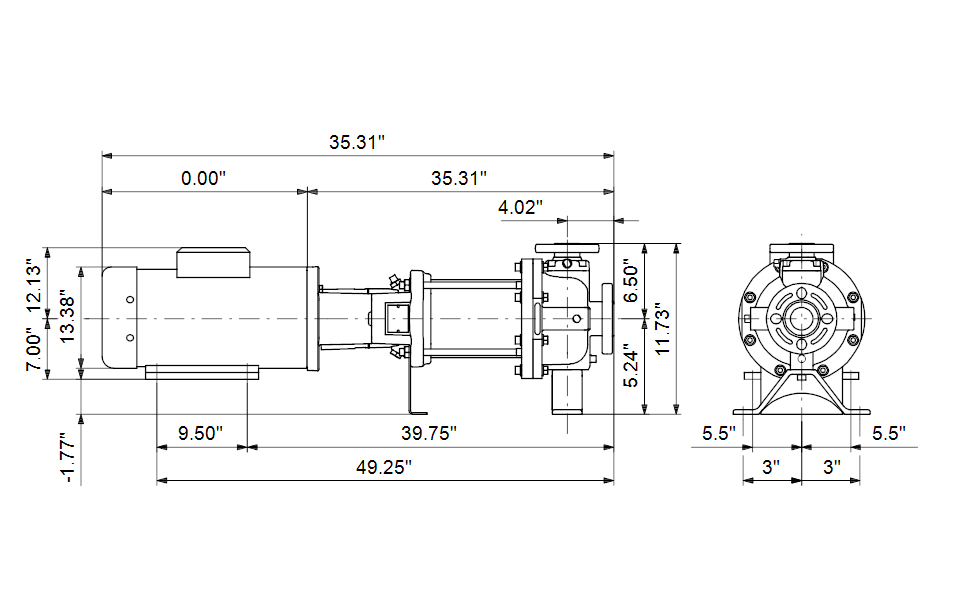

Dimensional Drawing
