Grundfos 97740117 - CRN 20-1 H-G05-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $2,391.24
GRUNDFOSSKU: 97740117

Price:
Sale price$3,195.76 Regular price$5,587.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97740117 - CRN 20-1 H-G05-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for boosting pressure in water supply systems, HVAC applications, and other demanding environments.

This model features a robust construction that ensures durability and long service life, while its multistage design allows for high pressure and flow rates. The CRN series is known for its versatility and can be utilized in various configurations, including horizontal and vertical installations.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches, and our team is here to help if you're having trouble locating the right item.

Explore our extensive range of Grundfos centrifugal pumps, including single and multi-stage options, and experience the quality and performance that Grundfos is known for.

Approvals on nameplate CE
Bearing 1 SIC
Code for rubber V
Code for shaft seal HQQV
Connect code G05
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 182TC
Frequency converter NONE
Gross weight 280.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum head 66.6 ft
Maximum operating pressure 232.06 psi
Model A
Motor 182TC
Motor standard NEMA
n rpm 3461rpm
Net weight 117.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 74.8 US gpm
Rated head 55.12 ft
Rubber V
Sales region USA
Shaft Product name:CRN 20-1 H-G05-A-V-HQQV
Shaft seal HQQV
Stages 2
Standard NEMA
Version H

Motor Curves

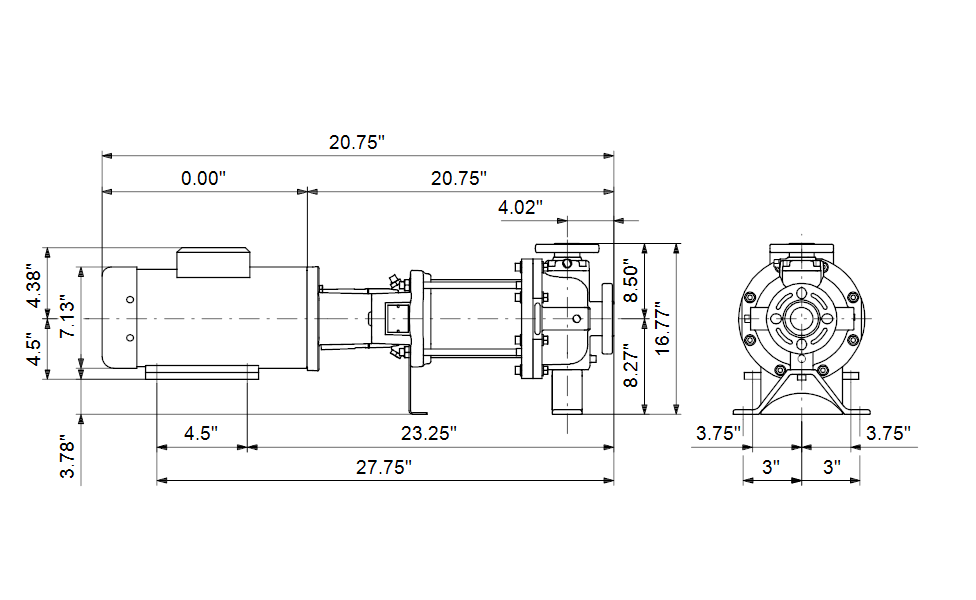

Dimensional Drawing
