Grundfos 98872995 - CRN 1S-8 A-P-A-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98872995

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98872995 - CRN 1S-8 A-P-A-V-HQQV is a vertical multistage centrifugal pump designed for industrial fluid transfer and high-pressure in-line applications. It suits service technicians and plant operators seeking a factory-built replacement pump from the original manufacturer.

Key features

  • Vertical multistage centrifugal design for compact, high-pressure operation
  • Service-focused SKU noted as a "Service Special" for maintenance and repair workflows
  • Suitable for in-line installations with benefits of consistent pressure and staged pumping

Applications

Common uses include boiler feed, water booster systems, pressure boosting, and industrial process circulation where a vertical multistage centrifugal pump is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98872995

EAN 5712602741469
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT85
Frequency converter NONE
Gross weight 45.8 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 140 °F
Maximum head 227 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.54
Model A
Motor FT85
Motor efficiency at 1/2 load 82.5-79.5 %
Motor efficiency at 3/4 load 83.0-83.0 %
Motor efficiency at full load 1 76.8-76.8 %
Motor standard IEC
Motor type 71BA
Net weight 39.8 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.55 kW
Power factor 1 0.85-0.76
Pressure rating for connection PN 50
Pressure sensor N
Pump 0.55 kW
Pump speed on which pump data are based 3447 rpm
Pump version A
Pumped liquid Water
Rated current 2
Rated flow 4.84 US gpm
Rated head 173.6 ft
Rated power - P2 0.55 kW
Rated speed 3390-3460 rpm
Rated voltage 3 x 220-255D/380-440Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 8
Standard IEC
Starting current 500-600 %
Type 71BA
Type of connection PJE
Version A

Motor Curves

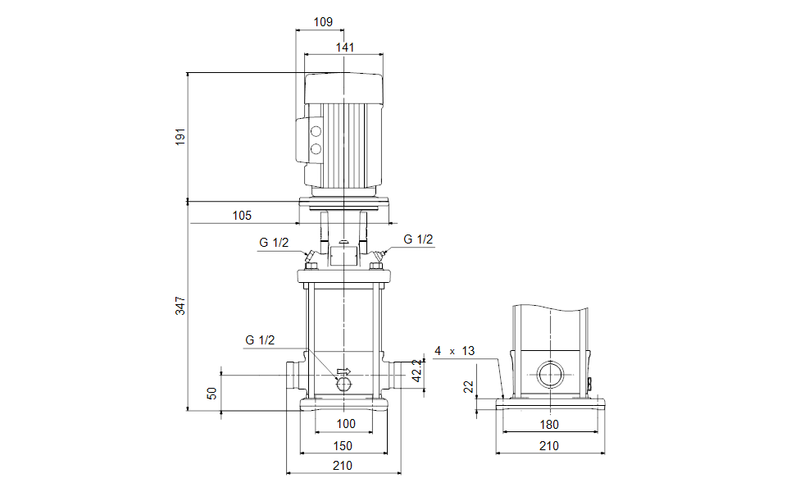

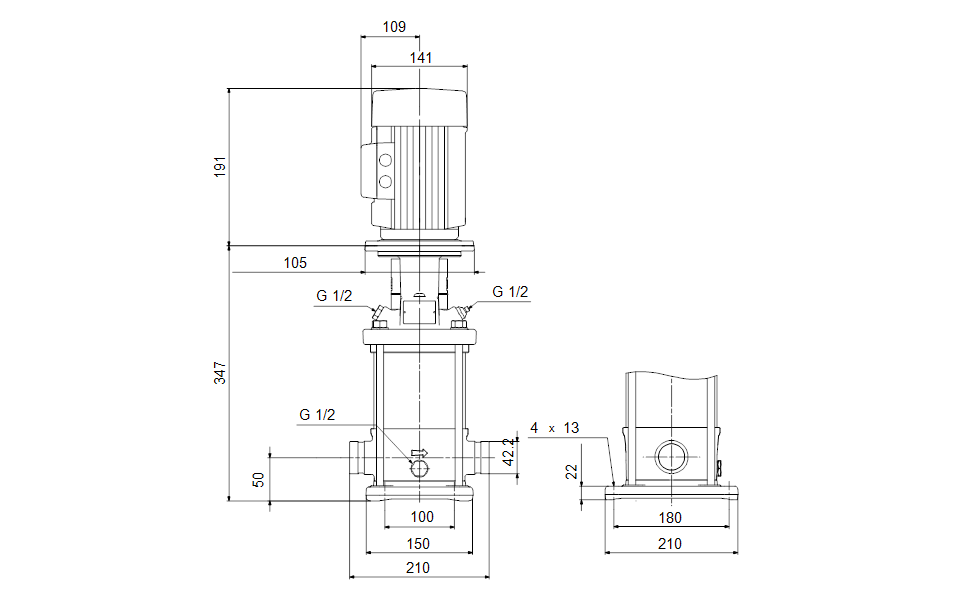

Dimensional Drawing

DWiring Diagram
