Grundfos 98160172 - CRN 1S-36 A-P-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $3,573.60
GRUNDFOSSKU: 98160172

Price:
Sale price$3,871.40 Regular price$7,445.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98160172 - CRN 1S-36 A-P-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 98160172 - CRN 1S-36 A-P-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure systems.

With its robust construction and advanced design, the CRN series is perfect for applications requiring consistent flow and pressure. This model is categorized under Service Special and is suitable for various setups, including horizontal and vertical installations.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team. We are here to help you find the perfect solution for your pumping needs.

EAN 5711494595754
Code for rubber V
Code for shaft seal HQQV
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FT100
Frequency converter NONE
Gross weight 88.1 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum head 685.1 ft
Maximum operating pressure 25 bar
Model A
Motor FT100
Motor standard IEC
Net weight 76.2 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.1 kW
Pressure rating for connection PN 50
Pressure sensor N
Pump 1.1 kW
Pump speed on which pump data are based 2853 rpm
Pump version A
Pumped liquid Water
Rated flow 3.96 US gpm
Rated head 456.1 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 36
Standard IEC
Type of connection PJE
Version A

Motor Curves

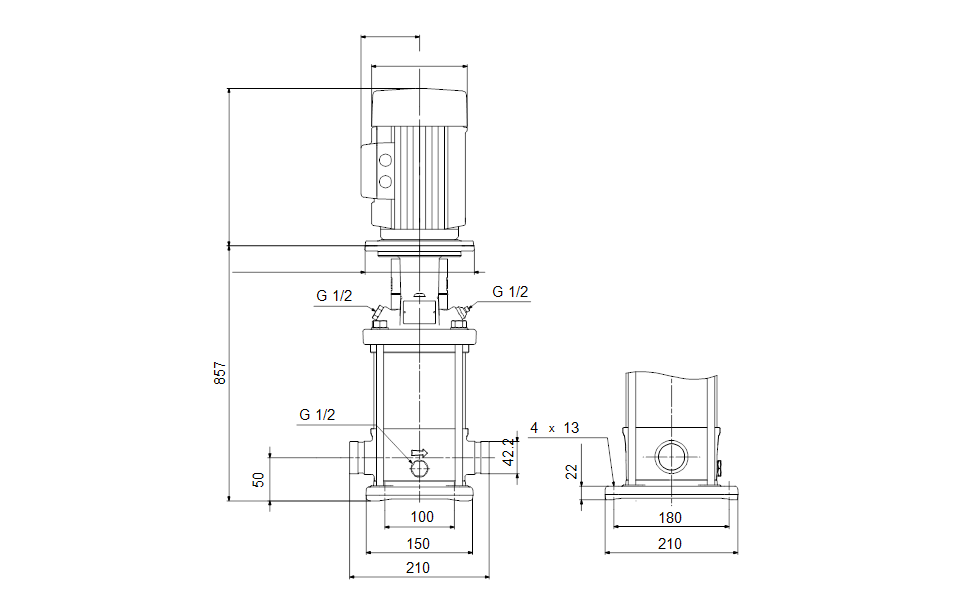

Dimensional Drawing
