Grundfos 96081683 - CRN 1S-25 A-P-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

Save $2,105.76
GRUNDFOSSKU: 96081683

Price:
Sale price$2,814.24 Regular price$4,920.00
Build to order – stocked components, typically available in 5 days
or Call for most up to date lead times. (781) 281-8905

Description

CRN 1S-25 A-P-A-V-HQQV Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings.

EAN 5700395161274
Applications Industrial applications
Approvals CE
Bearing 1 SIC
Code for rubber V
Code for shaft seal HQQV
Connect code P
Connection PJE
Connection 2 DN 32
Connection 3 DN 32
Connection 4 PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor 56C
Flange standard PJE
Frequency 60 HZ
Frequency converter NONE
Gross weight 62.5 lb
Impeller Stainless steel
Impellers 25
Liquid max temp 90°C
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum head 696.9 ft
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 56C
Motor standard NEMA
n rpm 3452rpm
Net weight 44.6 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 2 HP
Pressure rating PN 50
Pressure rating for connection PN 50
Product family CRN 1-S
Pump 2 HP
Pump housing Stainless steel
Pump inlet DN 32
Pump outlet DN 32
Pump version A
Pumped liquid Water
Rated flow 4.84 US gpm
Rated flow 2 4.84 US gpm
Rated head 461 ft
Rated head 2 461 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Shaft seal HQQV
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 25
Standard NEMA
Type of connection PJE
Version A

Motor Curves

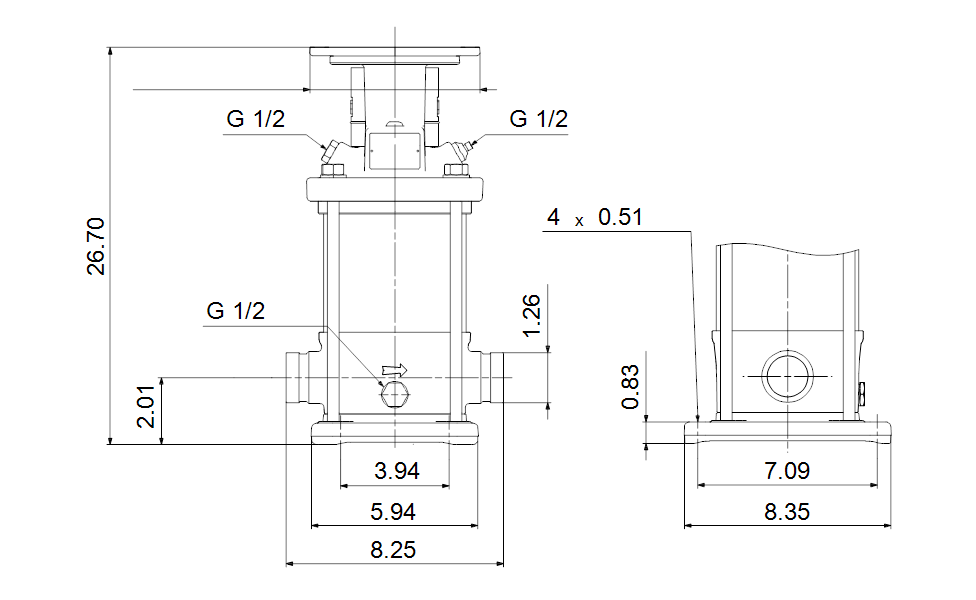

Dimensional Drawing
