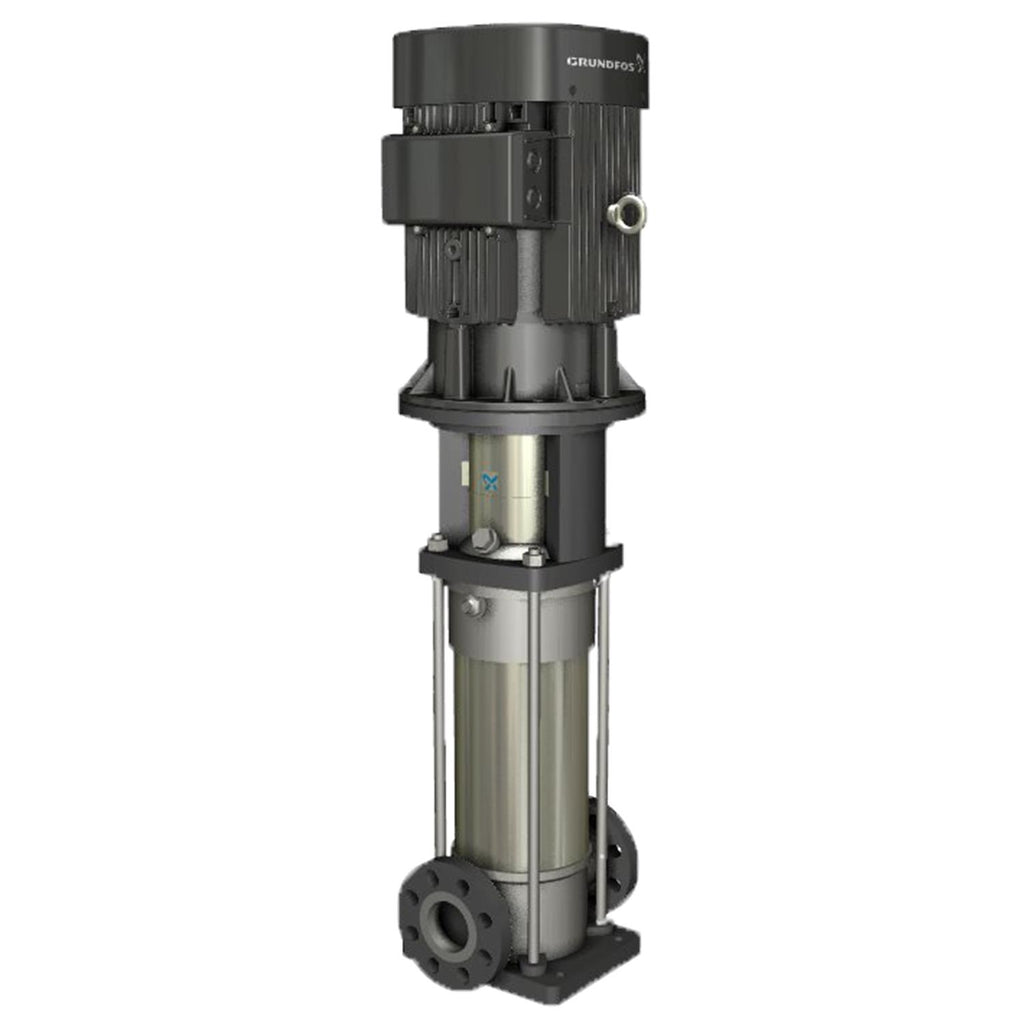

Grundfos 99198036 - CRN 1S-21 X-FGJ-L-E | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 99198036

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99198036 - CRN 1S-21 X-FGJ-L-E is a vertical, multistage centrifugal inline pump designed for commercial and light industrial fluid handling where compact, high-pressure delivery is required. It fits inline piping arrangements with inlet and outlet ports at the same level and is suited to users maintaining booster, process, or HVAC systems.

Key features

  • Vertical multistage centrifugal design with inline inlet and outlet for compact installation
  • Wetted parts in high-grade stainless steel for corrosion resistance and longevity
  • Combined DIN-ANSI-JIS flange connections for flexible piping compatibility and easier retrofits

Applications

Likely uses include building booster systems, industrial process circulation, boiler feed and HVAC applications where high-pressure, compact multistage pumps are required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99198036

EAN 5712608523649
Approvals CE
Code for rubber E
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 182TC
Frequency converter NONE
Gross weight 83.5 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -40 .. 248 °F
Low NPSH N
Material code L
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 588.9 ft
Maximum operating pressure 25 bar
Model A
Motor 182TC
Motor standard NEMA
Net weight 65.6 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3466 rpm
Pump version X
Rated flow 4.84 US gpm
Rated head 393.7 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 21
Standard NEMA
Type of connection DIN / ANSI / JIS
Version X
