Grundfos 96081870 - CRN 1S-19 A-FGJ-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $1,919.58
GRUNDFOSSKU: 96081870

Price:
Sale price$2,565.42 Regular price$4,485.00
Build to order – stocked components, typically available in 5 days
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 96081870 - CRN 1S-19 A-FGJ-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver reliable and efficient performance in demanding environments.

This model features a robust construction that ensures durability and longevity, making it an ideal choice for high-pressure applications. With its advanced design, the CRN 1S-19 A-FGJ-A-V-HQQV is capable of handling various fluids, providing optimal flow rates and pressure levels.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility.

For more information on specifications and applications, feel free to chat with our knowledgeable team or reach out via phone. Trust Pump-Stop for all your pumping needs!

EAN 5700395163247
Applications Industrial applications
Approvals CE
Bearing 1 SIC
Code for rubber V
Code for shaft seal HQQV
Connect code FGJ
Connection DIN / ANSI / JIS
Connection 2 DN 25/32
Connection 3 DN 25/32
Connection 4 PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange rating inlet 300 lb
Flange size for motor 56C
Frequency 60 HZ
Frequency converter NONE
Gross weight 63.1 lb
Impeller Stainless steel
Impellers 19
Liquid max temp 90°C
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum head 531.9 ft
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 56C
Motor standard NEMA
n rpm 3466rpm
Net weight 48.6 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.5 HP
Pressure rating PN 25
Pressure rating for connection PN 25
Product family CRN 1-S
Pump 1.5 HP
Pump housing Stainless steel
Pump inlet DN 25/32
Pump outlet DN 25/32
Pump version A
Pumped liquid Water
Rated flow 4.84 US gpm
Rated flow 2 4.84 US gpm
Rated head 351.7 ft
Rated head 2 351.7 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Shaft seal HQQV
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 19
Standard NEMA
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

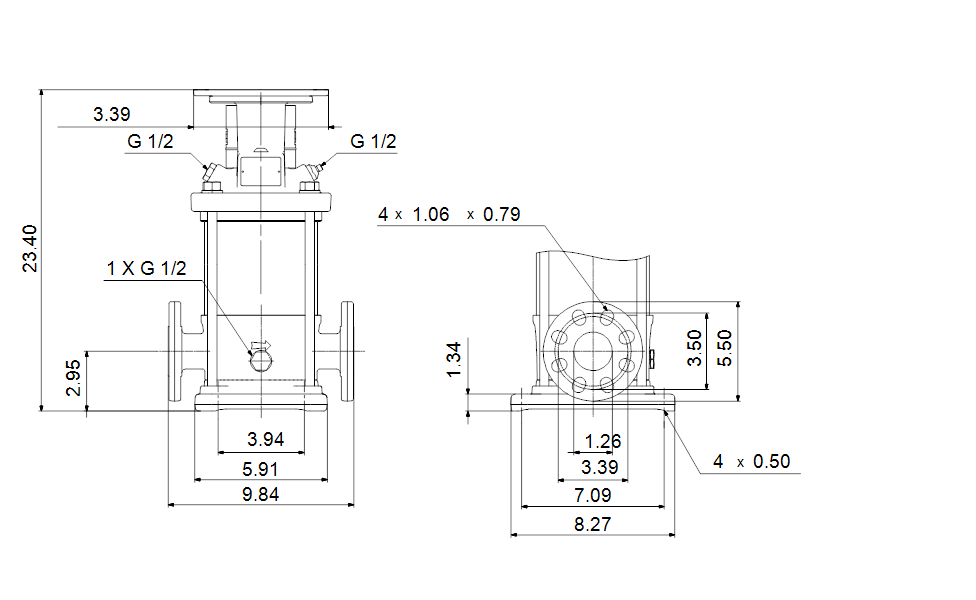

Dimensional Drawing
