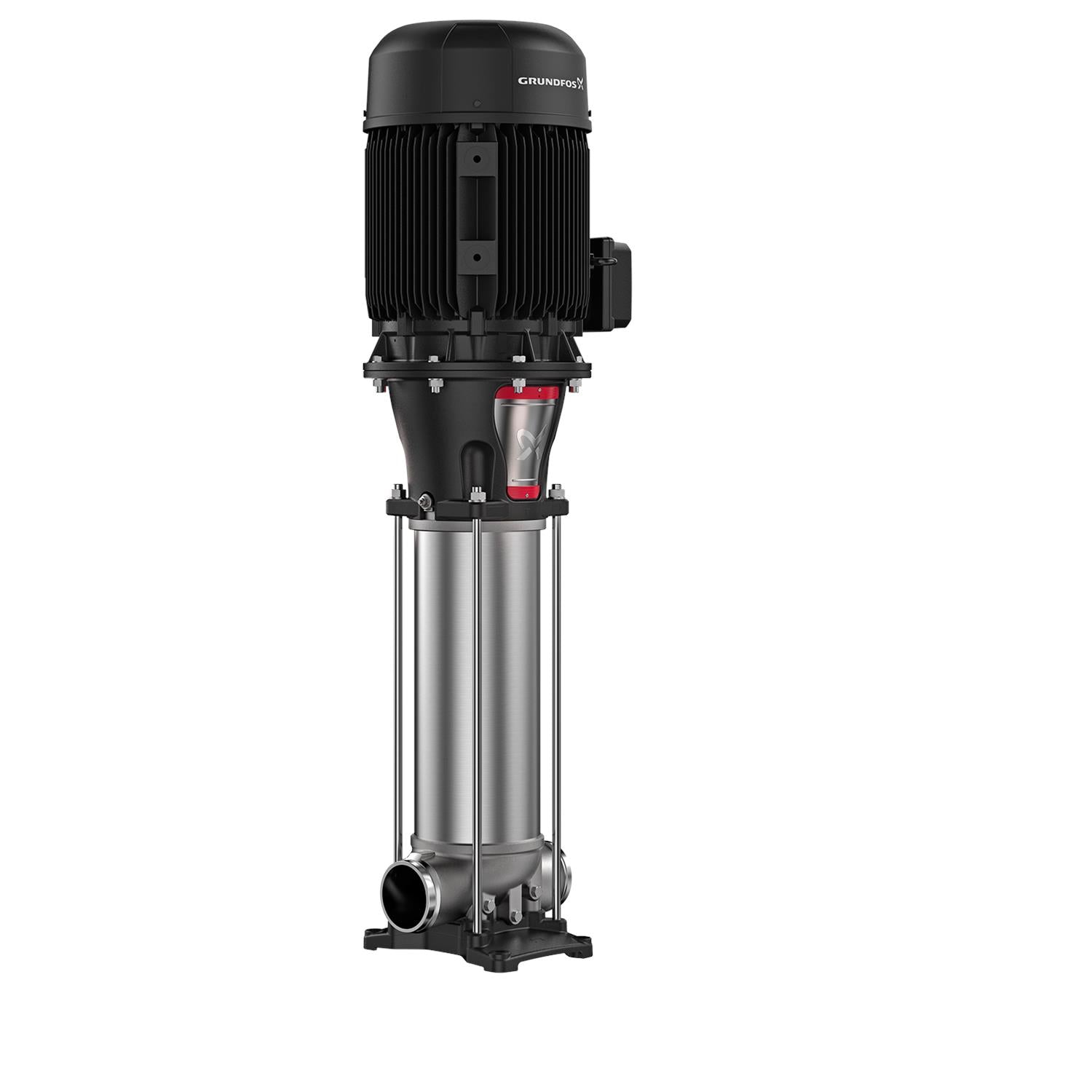

Grundfos 99971170 - CRN 185-3-3 A-P-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $23,952.59
GRUNDFOSSKU: 99971170

Price:
Sale price$32,011.41 Regular price$55,964.00
Build to order – stocked components,typically available in 70 business days
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99971170 - CRN 185-3-3 A-P-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 99971170 - CRN 185-3-3 A-P-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure and inline pumping needs.

With its robust construction and advanced design, the CRN series is suitable for a wide range of applications, including water supply, irrigation, and industrial processes. The multistage configuration allows for increased pressure capabilities, ensuring optimal performance in demanding environments.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

Approvals for drinking water NSF/ANSI 61,NSF/ANSI 372
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection 800 psi
Curve tolerance ISO9906:2012 3B
Flange size for motor 444TSD
Frequency converter NONE
Gross weight 959.0 lb
Impeller Stainless steel
Impellers 3
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material certified according to European standards
Material code A
Maximum head 557.8 ft
Maximum operating pressure 362.59 psi
Model A
Motor 444TSD
Motor standard NEMA
n rpm 3566rpm
Net weight 701.0 lb
Number of reduced-diameter impellers 3
Power (P2) required by pump 125 HP
Pressure rating for connection 800 psi
Pump 125 HP
Pump version A
Rated flow 980 US gpm
Rated head 405.9 ft
Rubber E
Shaft Product name:CRN 185-3-3 A-P-A-E-HQQE
Shaft seal HQQE
Stages 3
Standard NEMA
Support bearing Graflon
Thrust handling device Y
Type of connection PJE
Version A

Motor Curves

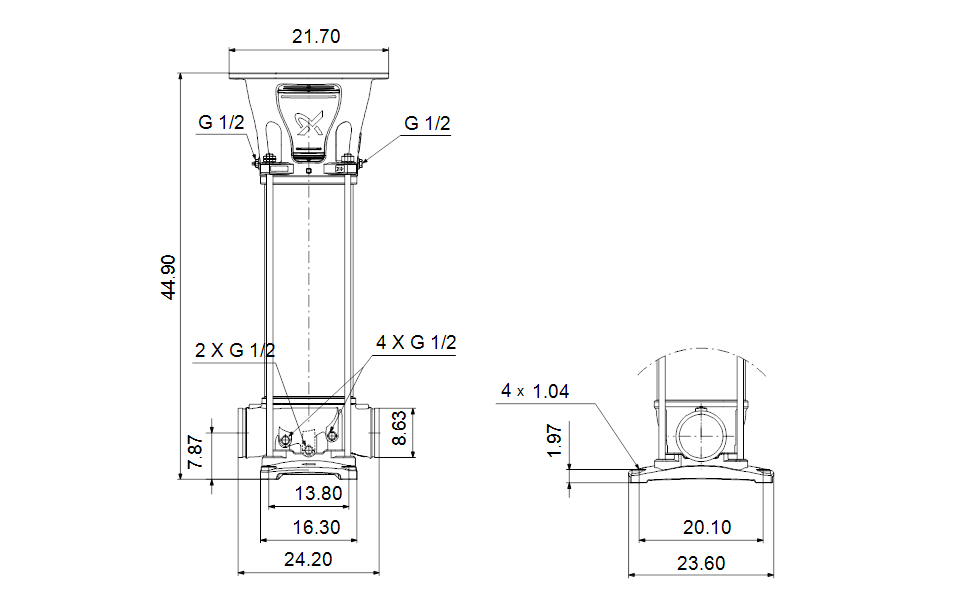

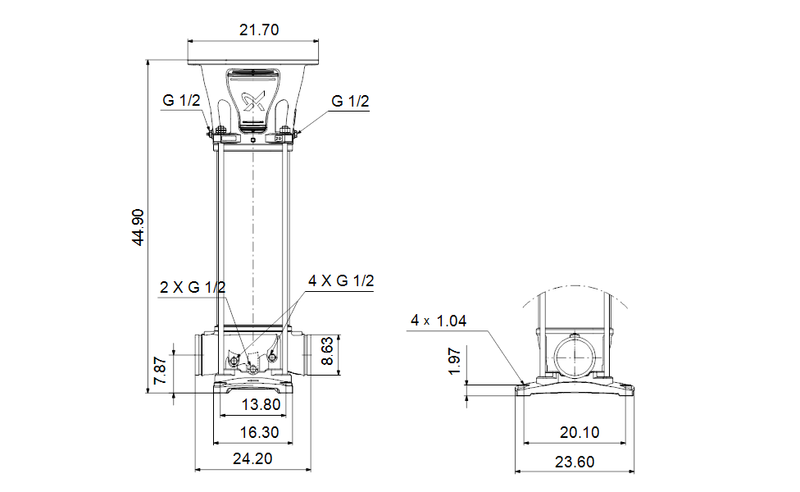

Dimensional Drawing
