Grundfos 99505351 - CRN 155-5-2 A-P-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 99505351

Price:
Sale price$133,325.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRN 155-5-2 A-P-A-V-HQQV | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A built-in thrust-handling device absorbs hydraulic axial forces which enables the use of a standard motor. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Wear parts in the shaft seal are available as service kits and can be replaced without having to renew the complete shaft seal. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5713830187517
Applications Industrial applications
Actual impeller diameter 6.64 in
Bearing 1 WC/WC
Bearing 2 Graflon
Built-in motor protection PTC
Code for rubber V
Code for shaft seal HQQV
Connect code P
Connection 1000 psi
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 6.64 in
DOE Pump Energy Index CL 0.93
Enclosure class (IEC 34-5) IP55
Flange size for motor 445TSD
Frequency converter NONE
Full load SF current 191/96 A
Gross weight 3080.0 lb
IE efficiency IE3 95.3%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material certified according to European standards
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 122 °F
Maximum head 814 ft
Maximum operating pressure 40 bar
Model A
Motor 445TSD
Motor efficiency at 1/2 load 0.947
Motor efficiency at 3/4 load 0.951
Motor efficiency at full load 1 0.953
Motor standard NEMA
Motor type BALDOR
Net weight 2600.0 lb
Number of poles 2
Number of reduced-diameter impellers 2
Power (P2) required by pump 110 kW
Power factor 1 0.89
Pressure rating for connection 1000 psi
Product family CRN 155
Pump 110 kW
Pump speed on which pump data are based 3576 rpm
Pump version A
Pumped liquid Water
Rated current 166 A
Rated flow 820 US gpm
Rated head 575.2 ft
Rated power - P2 110 kW
Rated speed 3575 rpm
Rated voltage 3 x 460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 6 inch
Size of outlet connection 6 inch
Stages 5
Standard NEMA
Support bearing Graflon
Thrust handling device Y
Type BALDOR
Type of connection PJE
Version A

Motor Curves

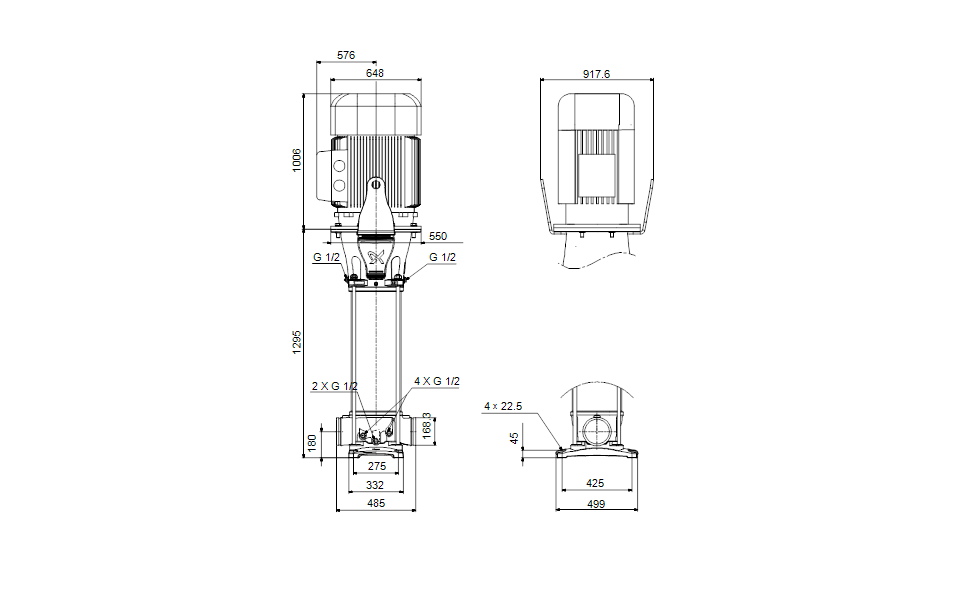

Dimensional Drawing

DWiring Diagram
