Grundfos 99918593 - CRN 155-5-1 A-P-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $39,162.00
GRUNDFOSSKU: 99918593

Price:
Sale price$52,338.00 Regular price$91,500.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99918593 - CRN 155-5-1 A-P-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver exceptional efficiency and reliability in demanding environments.

This model features a robust construction that ensures durability and longevity, making it an ideal choice for high-pressure applications. With its advanced design, the CRN 155-5-1 A-P-A-E-HQQE is capable of handling a wide range of fluids, providing optimal performance in both commercial and industrial settings.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the 99918593. If you're having trouble locating the right item, our team is here to help you find the perfect solution for your needs.

EAN 5715114134699
Applications Industrial applications
Actual impeller diameter 6.64 in
Approvals for drinking water NSF/ANSI 61,NSF/ANSI 372
Bearing 1 WC/WC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PJE
Connection 2 1000 psi
Cooling IC 411
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 6.64 in
DOE Pump Energy Index CL 0.93
Enclosure class (IEC 34-5) IP55
Eta 1/1 0.95
Flange size for motor 445TSD
Frequency 60 HZ
Frequency converter NONE
Full load SF current 187 A
Gross weight 2800.0 lb
IE Eff. Class IE3 / NEMA Premium
IE efficiency IE3 95,0%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 5
Insulation F
Insulation class (IEC 85) F
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material certified according to European standards
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 854 ft
Maximum operating pressure 580.15 psi
Maximum permissible operating pressure 40bar
Model A
Motor 445TSD
Motor efficiency at 1/2 load 0.941
Motor efficiency at 3/4 load 0.95
Motor efficiency at full load 1 0.95
Motor protec NONE
Motor standard NEMA
Motor type WEG
n rpm 3570rpm
Net weight 2320.0 lb
Number of poles 2
Number of reduced-diameter impellers 1
P2 HP 150 HP
P2 kW 110kW
Phase 3
Power (P2) required by pump 150 HP
Power factor 1 0.89
Pressure rating 1000 psi
Pressure rating for connection 1000 psi
Product family CRN 155
Pump 150 HP
Pump housing Stainless steel
Pump inlet 6
Pump outlet 6
Pump version A
Pumped liquid Water
Rated current 163 A
Rated flow 820 US gpm
Rated flow 2 820 US gpm
Rated head 616.2 ft
Rated head 2 616.2 ft
Rated power - P2 150 HP
Rated speed 3570 rpm
Rated voltage 3 x 460 V
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Shaft seal HQQE
Stages 5
Standard NEMA
Starting current 6.5
Support bearing Graflon
Thrust handling device SiC/WC
Type WEG
Type of connection PJE
Version A

Motor Curves

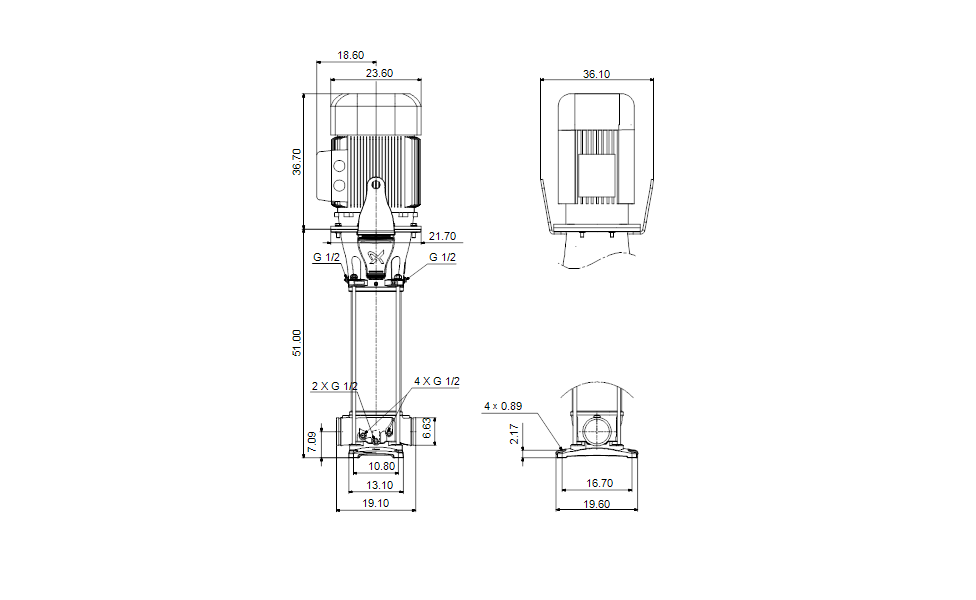

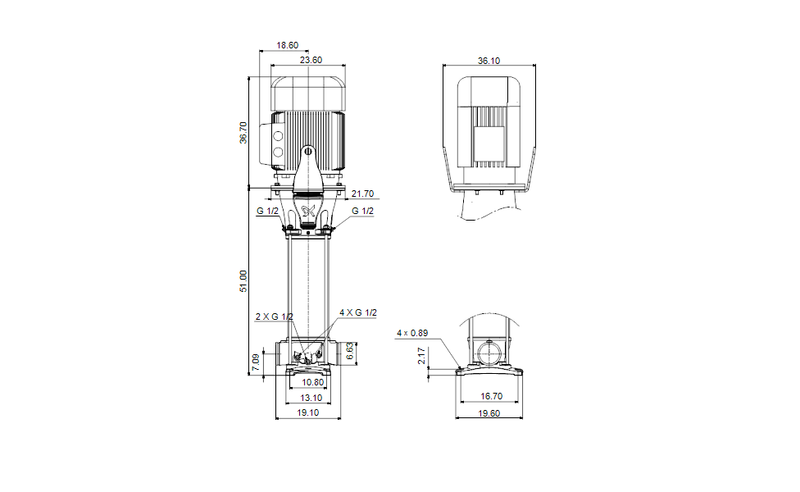

Dimensional Drawing

DWiring Diagram
