Grundfos 99400371 - CRN 155-4-2 A-G-A-V-HQQV
Grundfos 99400371 - CRN 155-4-2 A-G-A-V-HQQV
Grundfos 99400371 - CRN 155-4-2 A-G-A-V-HQQV
Grundfos 99400371 - CRN 155-4-2 A-G-A-V-HQQV

Grundfos 99400371 - CRN 155-4-2 A-G-A-V-HQQV

Save $23,808.48
GRUNDFOSSKU: 99400371
Price:
$25,792.52 $49,601.00
Build to order – stocked components, typically available in 20 days
Chat or Call for most up to date lead times. (781) 281-8905

Description

CRN 155-4-2 A-G-A-V-HQQV | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A built-in thrust-handling device absorbs hydraulic axial forces which enables the use of a standard motor. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges.

EAN 5713828498939
Applications Industrial applications
Material Pricing Group 33
Code for rubber V
Material code A
Density 62.29 lb/ft³
Max pressure at stated temp 363 psi / 194 °F
Maximum operating pressure 580.15 psi
Support bearing Graflon
Selected liquid temperature 68 °F
Type of connection ANSI
Bearing 1 WC/WC
Pressure rating 300 lb
Flange size for motor 444TSD
Pumped liquid Water
Pump outlet 6
Pump inlet 6
Connect code G
Liquid temperature range -4 .. 194 °F
Net weight 474.0 lb
Gross weight 730.0 lb
Power (P2) required by pump 125 HP
Pressure rating for connection 300 lb
Frequency converter NONE
DOE Pump Energy Index CL 0.93
Stages 4
Rated flow 820 US gpm
Flange standard ANSI
Model A
Version A
Diameter 6.64 in
Motor 444TSD
Rubber V
Maximum head 640.1 ft
Approvals for drinking water NSF/ANSI 372
Motor standard NEMA
Material certified according to European standards
Thrust handling device SiC/WC
Rated head 440.6 ft
Actual impeller diameter 6.64 in
Curve tolerance ISO9906:2012 3B
Impellers 4
Connection ANSI
Impeller Stainless steel
Code for shaft seal HQQV
Pump housing Stainless steel
Number of reduced-diameter impellers 2
Pump 125 HP
Low NPSH N
Standard NEMA
Pump version A

Motor Curves

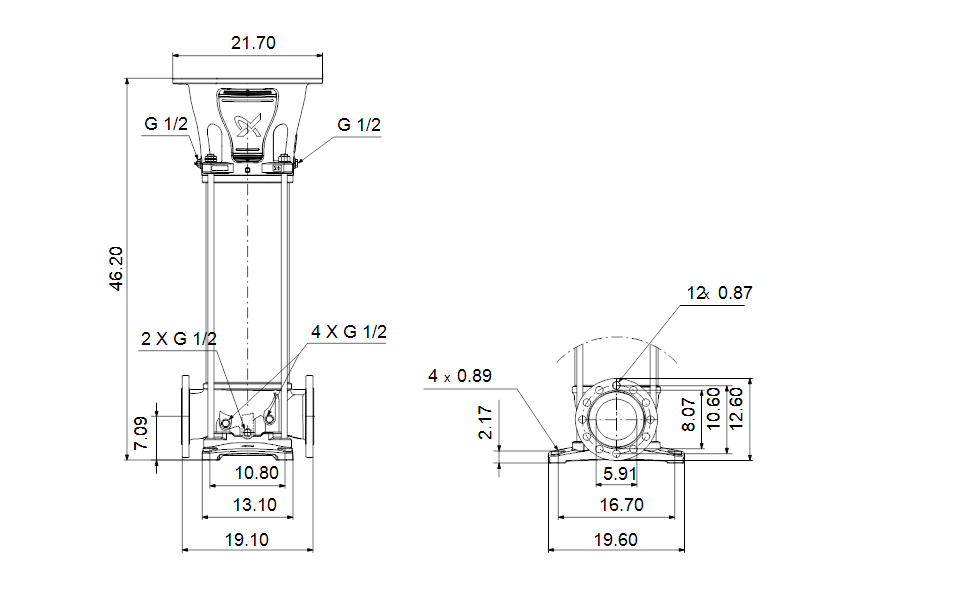

Dimensional Drawing
