Grundfos 99505317 - CRN 155-3-1 A-G-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

Save $18,659.94
GRUNDFOSSKU: 99505317

Price:
Sale price$24,938.06 Regular price$43,598.00
Build to order – stocked components, typically available in 84 days
or Call for most up to date lead times. (781) 281-8905

Description

CRN 155-3-1 A-G-A-V-HQQV Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A built-in thrust-handling device absorbs hydraulic axial forces which enables the use of a standard motor. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges.

EAN 5713830186923
Applications Industrial applications
Actual impeller diameter 6.64 in
Approvals for drinking water NSF/ANSI 372
Bearing 1 WC/WC
Code for rubber V
Code for shaft seal HQQV
Connect code G
Connection ANSI
Connection 2 300 lb
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 6.64 in
DOE Pump Energy Index CL 0.93
Flange size for motor 405TSD
Flange standard ANSI
Frequency 60 HZ
Frequency converter NONE
Gross weight 708.0 lb
Impeller Stainless steel
Impellers 3
Liquid max temp 90°C
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material certified according to European standards
Material code A
Material Pricing Group 33
Max pressure at stated temp 363 psi / 194 °F
Maximum head 499 ft
Maximum operating pressure 580.15 psi
Maximum permissible operating pressure 40bar
Model A
Motor 405TSD
Motor standard NEMA
n rpm 3569rpm
Net weight 450.0 lb
Number of reduced-diameter impellers 1
Power (P2) required by pump 100 HP
Pressure rating 300 lb
Pressure rating for connection 300 lb
Product family CRN 155
Pump 100 HP
Pump housing Stainless steel
Pump inlet 6
Pump outlet 6
Pump version A
Pumped liquid Water
Rated flow 820 US gpm
Rated flow 2 820 US gpm
Rated head 350.7 ft
Rated head 2 350.7 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Shaft seal HQQV
Stages 3
Standard NEMA
Support bearing Graflon
Thrust handling device SiC/WC
Type of connection ANSI
Version A

Motor Curves

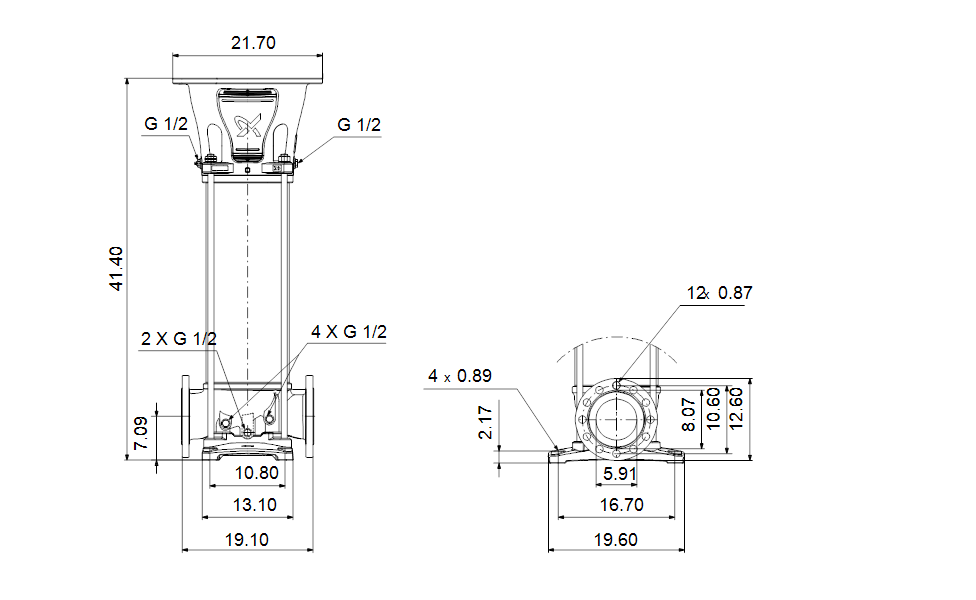

Dimensional Drawing
