Grundfos 92537398 - CRN 15-8 M-FGJ-A-V | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 92537398

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 92537398 - CRN 15-8 M-FGJ-A-V is a vertical, inline multistage centrifugal pump designed for industrial and commercial fluid handling where compact, high-pressure delivery is needed. The model suits technicians and maintenance teams replacing or servicing centrifugal systems.

Key features

  • High-grade stainless steel wetted parts for corrosion resistance and durability
  • Inline, vertical multistage design providing compact footprint and high-pressure performance
  • Combined DIN-ANSI-JIS flanged connections for straightforward installation and compatibility with common piping standards

Applications

Typical uses include high-pressure water boosting, HVAC systems, boiler feed, industrial process circulation, and other applications requiring reliable multistage pumping.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92537398

EAN 5715115904109
Approvals CE
Code for rubber V
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 249.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum head 528.2 ft
Maximum operating pressure 25 bar
Model A
Motor 254TC
Motor standard NEMA
Net weight 135.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3444 rpm
Pump version M
Rated flow 90.3 US gpm
Rated head 407.2 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 8
Standard NEMA
Type of connection DIN / ANSI / JIS
Version M

Motor Curves

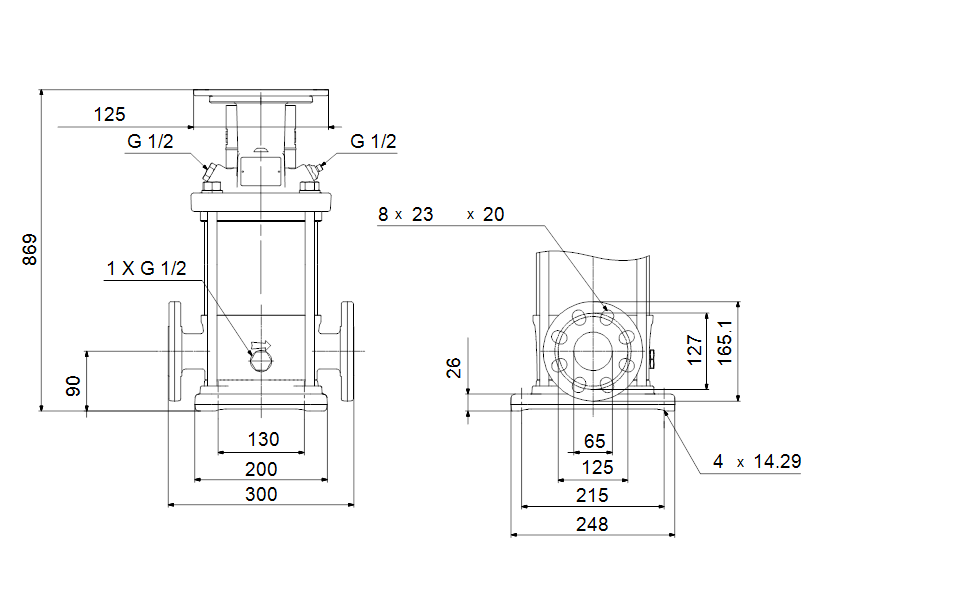

Dimensional Drawing
