Grundfos 99256484 - CRN 15-7 EX-CX-T-V-HQQV | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 99256484

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CRN 15-7 EX-CX-T-V-HQQV · Vertical Multistage Centrifugal Pump — All Stainless
CRN20HP230-277D/400-480YV3.0-Phase60 HzNEMA Premium / IE3 60HzIP55 Dust/JettingStainless steel

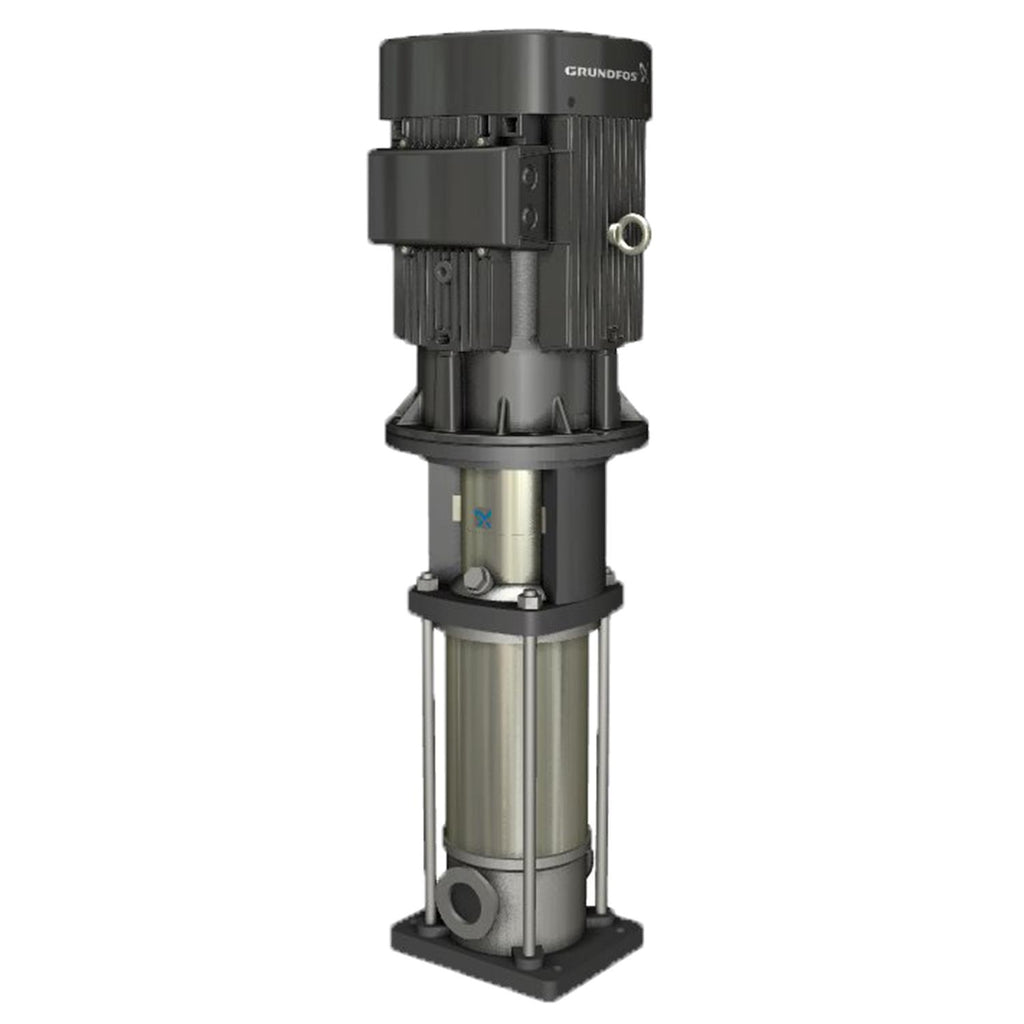

The Grundfos 99256484 (CRN 15-7 EX-CX-T-V-HQQV) is a Vertical Multistage Centrifugal Pump — All Stainless. All wetted parts in stainless steel EN 1.4401 (316). For food, beverage, pharmaceutical, and chemical applications where iron contamination must be avoided. Nominal performance: 90.3US gpm at 375.3ft. Rated 230-277D/400-480YV, 3.0-Phase, 60 Hz.

Power
20HP
Voltage
230-277D/400-480YV
Phase
3.0-Phase
Max Flow
90.3US gpm
Max Head
375.3ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
NEMA Premium / IE3 60Hz motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

All Stainless Steel Construction

Every wetted component — impeller, chambers, shaft, head — is stainless steel EN 1.4401 (316). No iron contact with the pumped fluid under any condition.

Corrosion-Resistant for Aggressive Fluids

316 stainless resists chlorides, mild acids, and alkaline cleaning agents. CRN is the preferred selection for food processing, pharmaceutical, and chemical dosing systems.

Cartridge Mechanical Seal

Factory-set cartridge seal eliminates field adjustment on installation. Seal options cover standard water through aggressive chemical service.

Dual Flange Standard — DIN, ANSI, JIS

CRN ships with combined DIN/ANSI/JIS flange connections. One pump fits piping standards across North American and international installations.

3-A and FDA-Compliant Options

Selected CRN configurations are 3-A certified for dairy and food processing. FDA-compliant elastomers available on request.

Wide Pressure Range

CRN series covers up to 60 bar operating pressure across pump sizes. Confirm your system maximum working pressure before selecting.

Model Information — CRN 15-7 EX-CX-T-V-HQQV
Series: CRN
Model Code: CRN 15-7 EX-CX-T-V-HQQV
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, V FKM O-ring
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HQQV
Flange Rating: PN 25
Technical Specifications
Model Number 99256484
Product Series CRN
Series Description Vertical Multistage Centrifugal Pump — All Stainless
Power 20HP
Voltage 230-277D/400-480YV
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3530-3550rpm
Pump Speed 3529rpm
Full Load Current 46,6-39,0/26,9-22,4A
Motor Type 160MD
Motor Protection PTC
Motor Efficiency Class NEMA Premium / IE3 60Hz
Motor Efficiency 91.0-91.0%
Insulation Class F
Protection Class (IP) IP55 Dust/Jetting
Nominal Flow 90.3US gpm
Nominal Head 375.3ft
Max Operating Pressure 362.59psi
Max Fluid Temperature 194°F
Max Ambient Temperature 140°F
Inlet Connection DN 50
Outlet Connection DN 50
Pipe Pressure Rating PN 25
Pipe Standard TriClamp
Impeller Material Stainless steel
Housing Material Stainless steel
Shaft Seal HQQV
Approvals / Certifications CE, EAC, UKCA, SEPRO
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 230-277D/400-480YV, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 194°F or max ambient temperature 140°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CRN pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CRN Series
✓ Product Data Sheet — CRN 15-7 EX-CX-T-V-HQQV
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5713826089894
Approvals CE
Built-in motor protection PTC
Code for rubber V
Code for shaft seal HQQV
Connect code CX
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FF300
Frequency converter NONE
Gross weight 388.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code T
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 140 °F
Maximum head 469.2 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF300
Motor efficiency at 1/2 load 91.9-91.3 %
Motor efficiency at 3/4 load 91.9-92.3 %
Motor efficiency at full load 1 91.0-91.0 %
Motor standard IEC
Motor type 160MD
Net weight 326.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 15 kW
Power factor 1 0.89-0.86
Pressure rating for connection PN 25
Pressure sensor N
Pump 15 kW
Pump speed on which pump data are based 3529 rpm
Pump version EX
Pumped liquid Water
Rated current 46
Rated flow 90.3 US gpm
Rated head 375.3 ft
Rated power - P2 15 kW
Rated speed 3530-3550 rpm
Rated voltage 3 x 230-277D/400-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 7
Standard IEC
Starting current 640-890 %
Type 160MD
Type of connection TriClamp
Version EX

Motor Curves

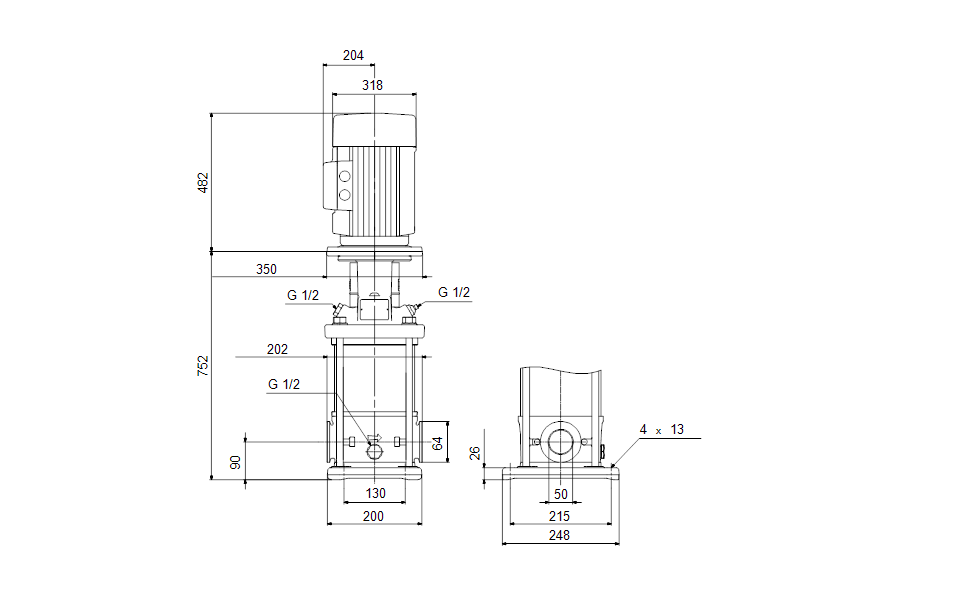

Dimensional Drawing

DWiring Diagram
