Grundfos 97739163 - CRN 15-7 H-GA-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $3,258.79
GRUNDFOSSKU: 97739163

Price:
Sale price$4,355.21 Regular price$7,614.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97739163 - CRN 15-7 H-GA-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 97739163 - CRN 15-7 H-GA-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for boosting water pressure and handling various fluid transfer tasks.

This model features a robust construction and advanced design, ensuring durability and longevity in demanding environments. It is categorized under Grundfos Centrifugal Pumps, specifically within the Multi-Stage and Horizontal Multistage types, making it versatile for different operational needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 97739163. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

Approvals on nameplate CE,NSF/ANSI 61
Bearing 1 SIC
Code for rubber E
Code for shaft seal HQQE
Connect code GA
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 157.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Maximum head 447.9 ft
Maximum operating pressure 232.06 psi
Model A
Motor 254TC
Motor standard NEMA
n rpm 3444rpm
Net weight 135.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 79.3 US gpm
Rated head 379 ft
Rubber E
Sales region USA
Shaft Product name:CRN 15-7 H-GA-A-E-HQQE
Shaft seal HQQE
Stages 7
Standard NEMA
Version H

Motor Curves

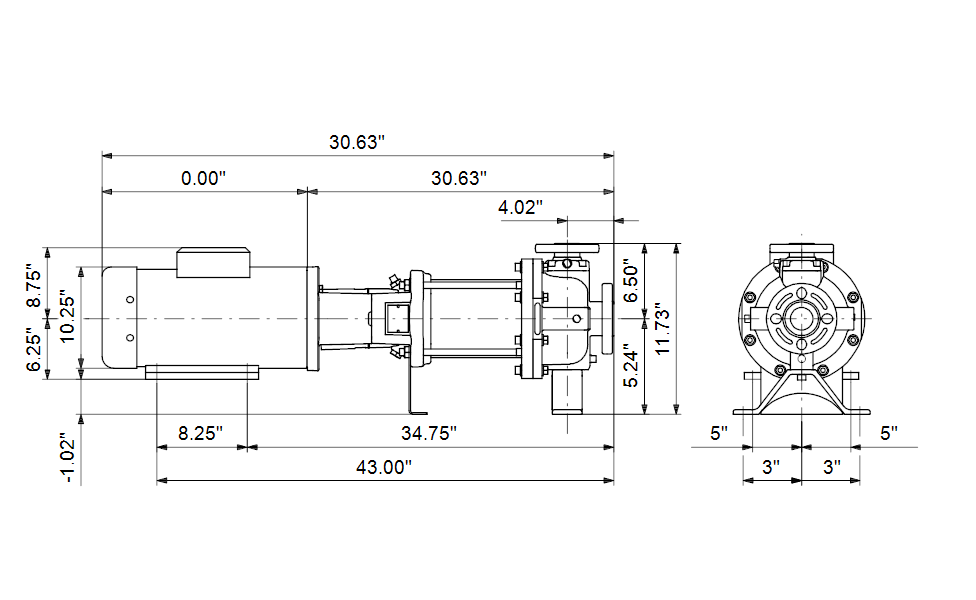

Dimensional Drawing
