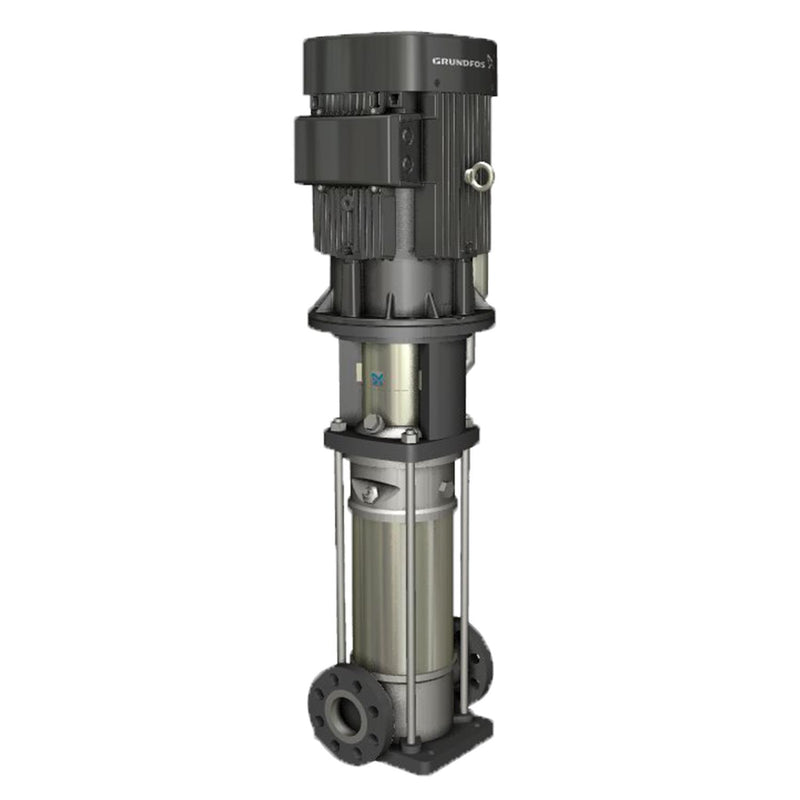

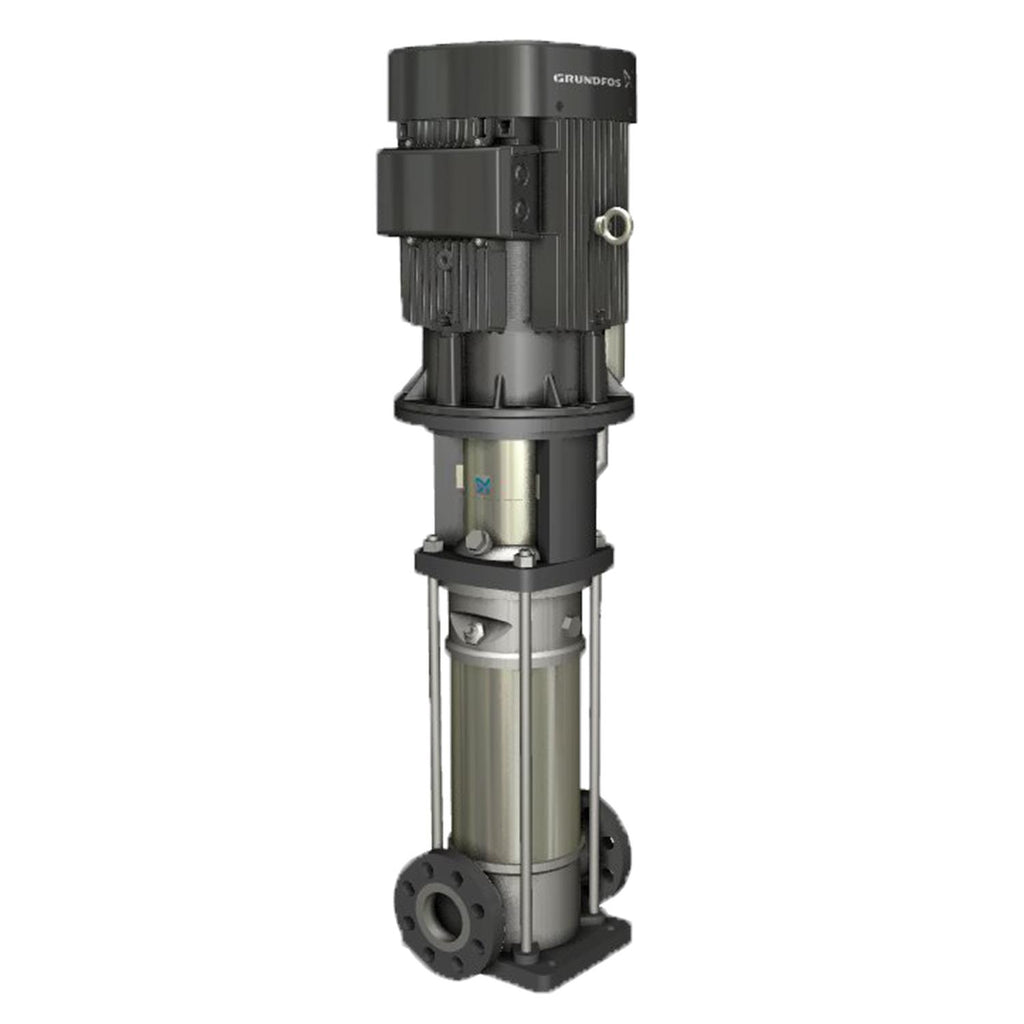

Grundfos 99494654 - CRN 15-4 FK-FGJ-A-F-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99494654

Price:
Sale price$21,750.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99494654 - CRN 15-4 FK-FGJ-A-F-HQQE This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5713830018798
Actual impeller diameter 4.13 in
Approvals CE
Code for rubber F
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Diameter 4.13 in
DOE Pump Energy Index CL 0.93
Flange rating inlet 300 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 232.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range 14 .. 356 °F
Low NPSH Y
Material code A
Material Pricing Group 3L
Max pressure at stated temp 363 psi / 356 °F
Maximum head 283.2 ft
Maximum operating pressure 25 bar
Model A
Motor 213TC
Motor standard NEMA
Net weight 108.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3448 rpm
Pump version FK
Rated flow 90.3 US gpm
Rated head 230.7 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber F
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 4
Standard NEMA
Type of connection DIN / ANSI / JIS
Version FK
