Grundfos 99154285 - CRN 15-3 A-P-X-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 99154285

Price:
Sale price$11,115.28
or Call for most up to date lead times. (781) 281-8905

Description

CRN 15-3 A-P-X-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings.

EAN 5712607756024
Actual impeller diameter 4.13 in
Approvals CE
Approvals for drinking water NSF/ANSI 61
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Flange size for motor 213TC
Frequency converter NONE
Gross weight 92.6 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code X
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 200.5 ft
Maximum operating pressure 25 bar
Model A
Motor 213TC
Motor standard NEMA
Net weight 77.2 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 50
Pressure sensor N
Pump speed on which pump data are based 3461 rpm
Pump version A
Rated flow 90.3 US gpm
Rated head 152.9 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 3
Standard NEMA
Type of connection PJE
Version A

Motor Curves

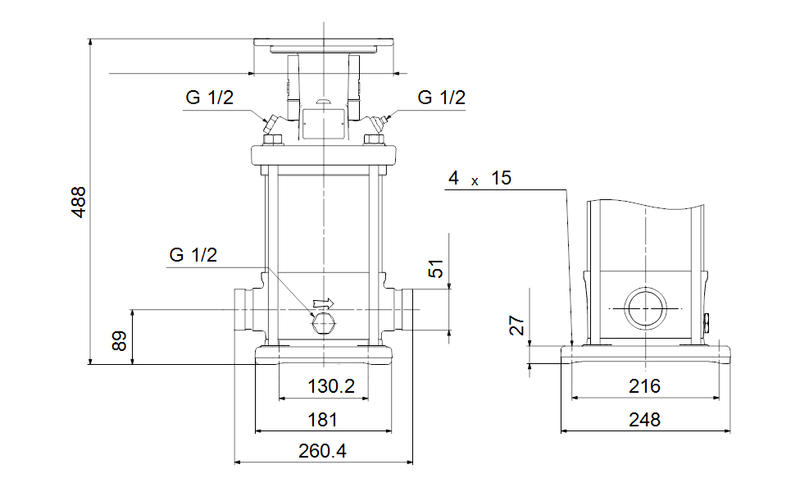

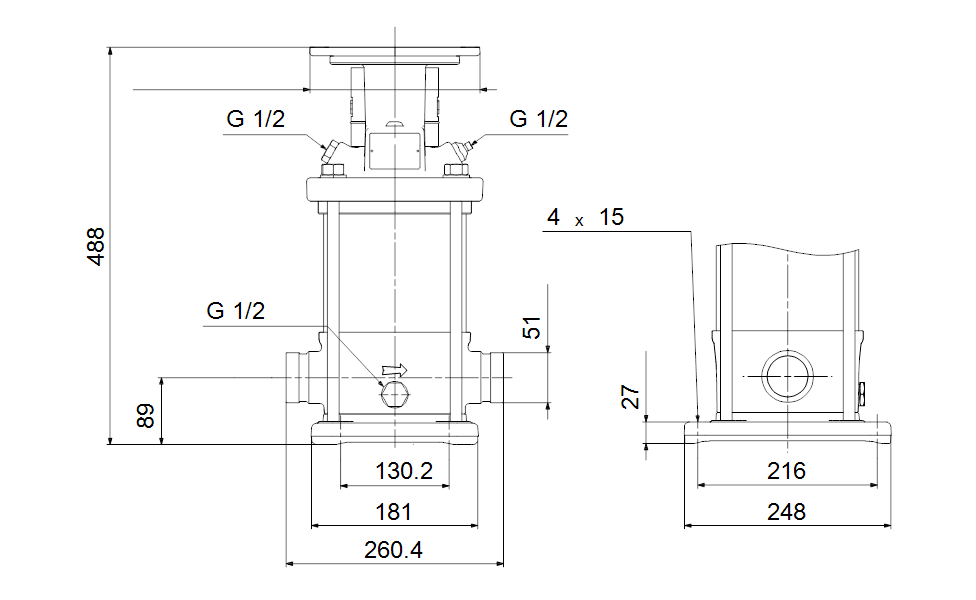

Dimensional Drawing
