Grundfos 97739315 - CRN 15-3 H-G05-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $2,695.54
GRUNDFOSSKU: 97739315

Price:
Sale price$3,602.46 Regular price$6,298.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97739315 - CRN 15-3 H-G05-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 97739315 - CRN 15-3 H-G05-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for boosting pressure in water supply systems, irrigation, and other demanding environments.

This model features a robust construction and advanced design, ensuring durability and longevity. It is part of the CRN series, known for its versatility and efficiency in handling various fluids. The pump is suitable for both horizontal and vertical installations, providing flexibility in system design.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 97739315. If you encounter any difficulties in identifying the correct item, our team is here to help you find the perfect solution.

Approvals on nameplate CE
Bearing 1 SIC
Code for rubber V
Code for shaft seal HQQV
Connect code G05
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 289.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum head 190.6 ft
Maximum operating pressure 232.06 psi
Model A
Motor 213TC
Motor standard NEMA
n rpm 3461rpm
Net weight 126.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 79.3 US gpm
Rated head 156.8 ft
Rubber V
Sales region USA
Shaft Product name:CRN 15-3 H-G05-A-V-HQQV
Shaft seal HQQV
Stages 3
Standard NEMA
Version H

Motor Curves

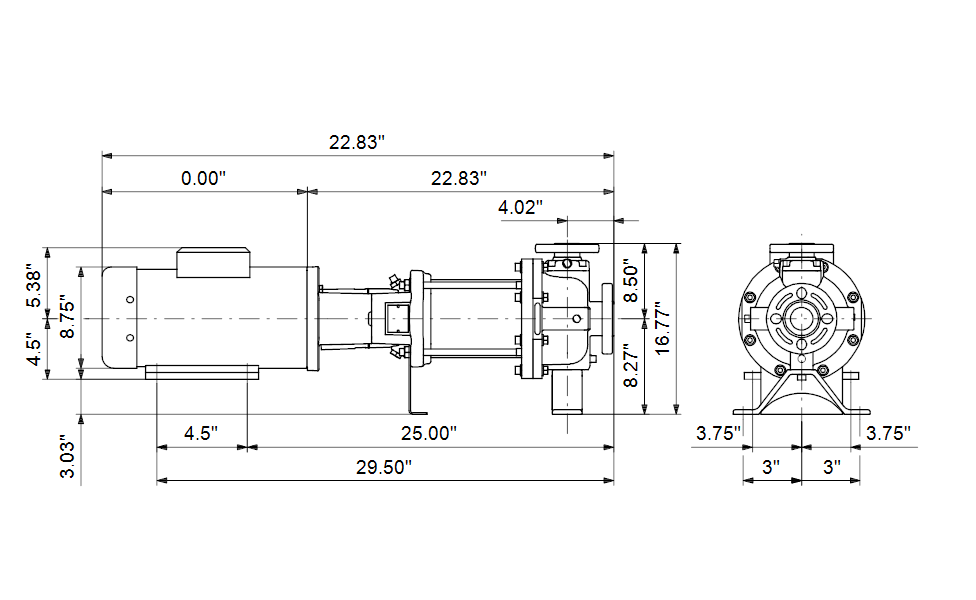

Dimensional Drawing
