Grundfos 98161565 - CRN 15-2 A-P-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $3,405.12
GRUNDFOSSKU: 98161565

Price:
Sale price$3,688.88 Regular price$7,094.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98161565 - CRN 15-2 A-P-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 98161565 - CRN 15-2 A-P-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure systems.

With its robust construction and advanced design, the CRN 15-2 A-P-A-E-HQQE model is perfect for applications requiring consistent flow and pressure. This pump is part of the Grundfos Centrifugal Pumps range, specifically categorized under Service Special, High Pressure, and Vertical Multistage types.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team via chat or phone. Let us help you find the perfect solution for your pumping needs!

EAN 5710629595881
Actual impeller diameter 4.13 in
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT115
Frequency converter NONE
Gross weight 108.0 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 94.16 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT115
Motor efficiency at 1/2 load 88.0-85.5 %
Motor efficiency at 3/4 load 88.2-87.2 %
Motor efficiency at full load 1 85.9-85.9 %
Motor standard IEC
Motor type 90HA
Net weight 99.2 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Power factor 1 0.86-0.80
Pressure rating for connection PN 50
Pressure sensor N
Pump 2.2 kW
Pump speed on which pump data are based 2899 rpm
Pump version A
Pumped liquid Water
Rated current 8.00/4.60 A
Rated flow 74.8 US gpm
Rated head 72.18 ft
Rated power - P2 2.2 kW
Rated speed 2890-2910 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 2
Standard IEC
Starting current 840-920 %
Type 90HA
Type of connection PJE
Version A

Motor Curves

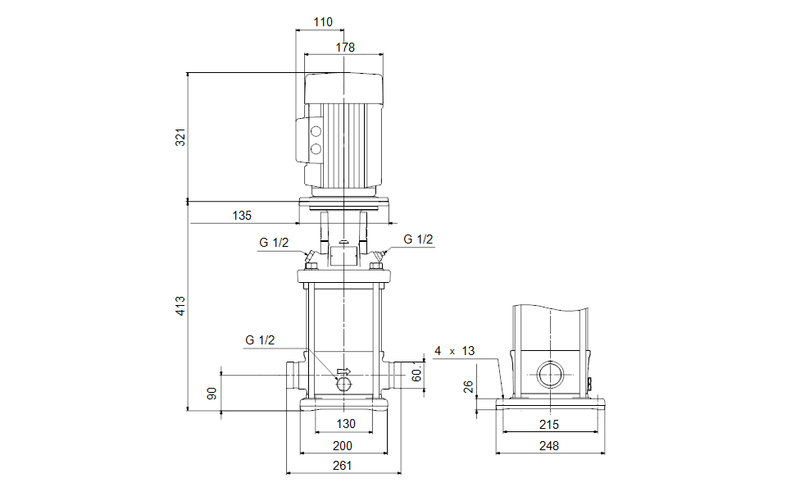

Dimensional Drawing

DWiring Diagram
