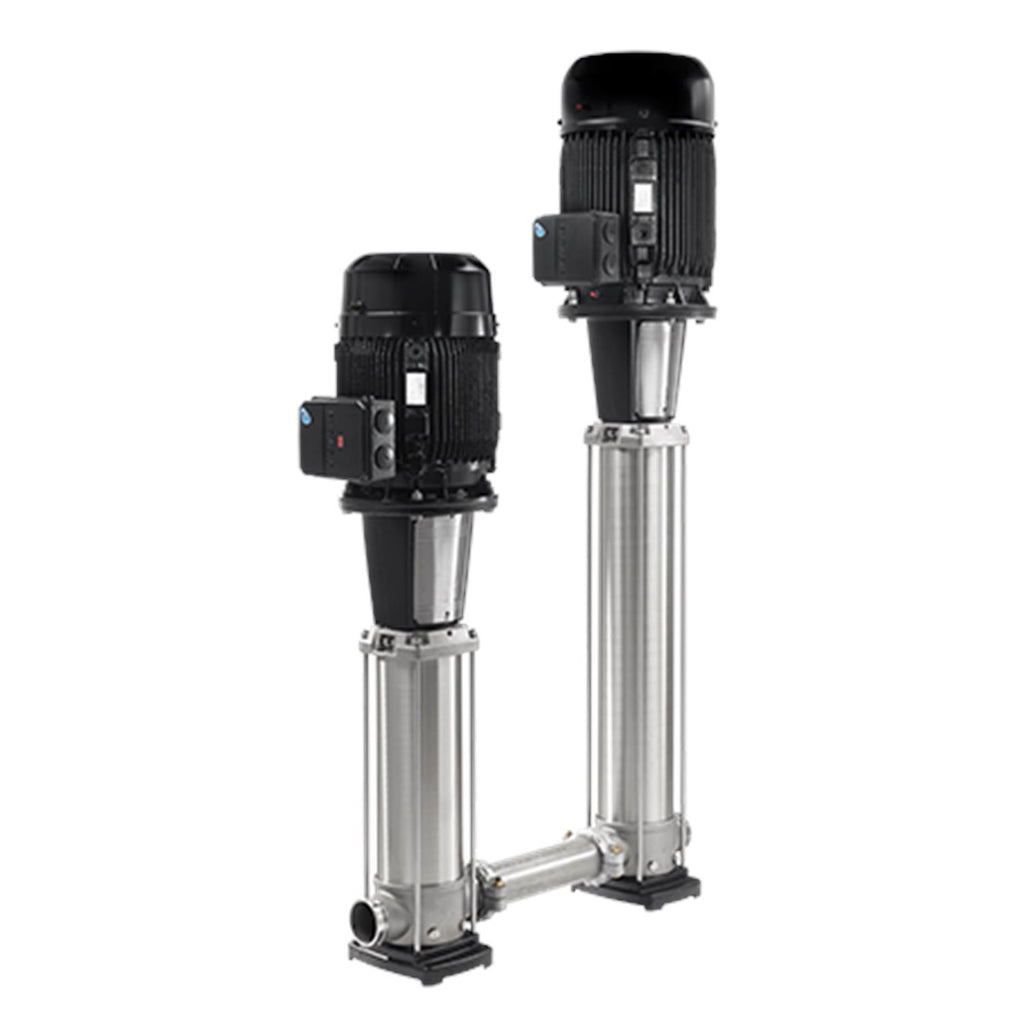

Grundfos 96512214 - CRN 15-16 S-P-A-V-HQQV | Multistage | SelfPriming | Centrifugal | Vertical | Horizontal

Save $11,132.64
GRUNDFOSSKU: 96512214

Price:
Sale price$12,060.36 Regular price$23,193.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRN 15-16 S-P-A-V-HQQV Vertical, non-self-priming, high-pressure multistage centrifugal pump with suction and discharge ports on the same level (in-line) enabling installation in a horizontal one-pipe system. The chamber stack is turned upside-down to ensure that the shaft seal is not affected by the high pump discharge pressure. Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling and easy service and access. Power transmission is via a split coupling. Pipe connection is via PJE (Victaulic®) couplings.

EAN 5700396600185
Applications Industrial applications
Approvals CE
Built-in motor protection PTC
Code for rubber V
Code for shaft seal HQQV
Connect code P
Connection 2 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FF300
Frequency converter NONE
Gross weight 450.0 lb
Housing Stainless steel
IE Efficiency class IE3
Impeller Stainless steel
Impellers 16
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 725 psi / 194 °F
Maximum ambient temperature 140 °F
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF300
Motor efficiency at 1/2 load 92.4-92.3 %
Motor efficiency at 3/4 load 92.4-92.7 %
Motor efficiency at full load 1 91.9-91.9 %
Motor type 160MD
Net weight 322.0 lb
Number of poles 2
Power (P2) required by pump 15 kW
Power factor 1 0.89-0.87
Product family CRN 15-SF
Pump 15 kW
Pump housing Stainless steel
Pump speed on which pump data are based 2923 rpm
Pump version S
Pumped liquid Water
Rated current 28
Rated flow 74.8 US gpm
Rated head 594.2 ft
Rated power - P2 15 kW
Rated speed 2930-2950 rpm
Rated voltage 3 x 380-415D/660-690Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of connection 2 inch
Stages 16
Starting current 660-780 %
Type 160MD
Type of connection PJE
Version S

Motor Curves

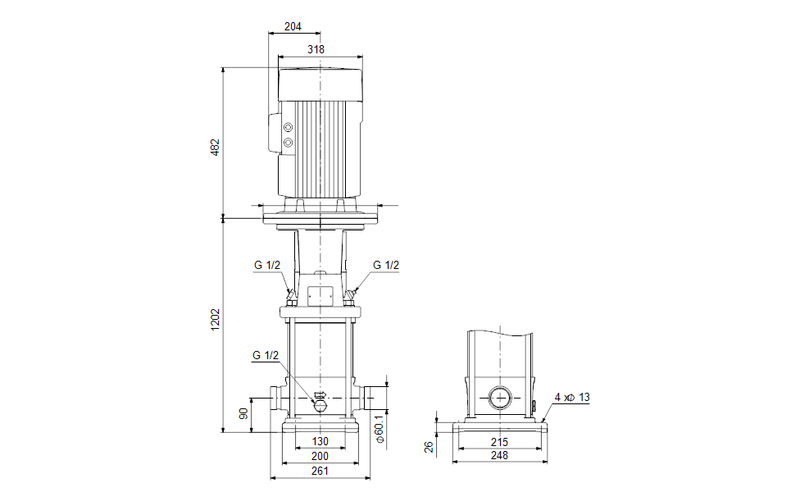

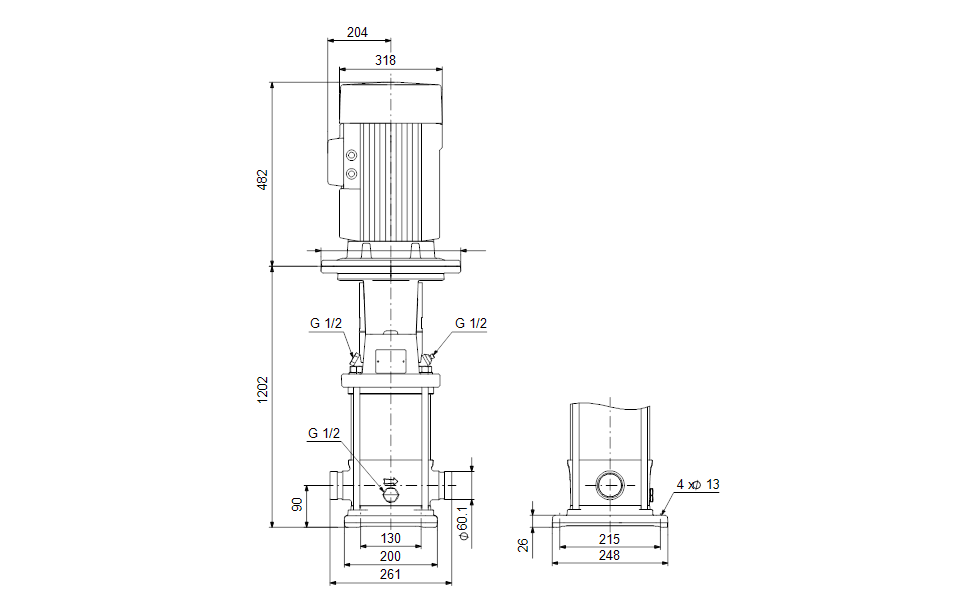

Dimensional Drawing
