Grundfos 97739167 - CRN 15-12 H-GA-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $4,844.96
GRUNDFOSSKU: 97739167

Price:
Sale price$6,475.04 Regular price$11,320.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97739167 - CRN 15-12 H-GA-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for boosting water pressure and transferring fluids in demanding environments.

This model features a robust construction and advanced design, ensuring optimal performance in both single and multi-stage configurations. The CRN series is particularly noted for its versatility, allowing it to be used in various settings, including commercial and industrial sectors.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 97739167. If you encounter any difficulties in locating the right item, our team is here to help you navigate your options.

Explore our extensive range of pumps, including booster pumps, centrifugal pumps, end suction pumps, and horizontal multistage pumps, to find the perfect solution for your needs.

Approvals on nameplate CE,NSF/ANSI 61
Bearing 1 SIC
Code for rubber E
Code for shaft seal HQQE
Connect code GA
Connection PN 25
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 284TC
Frequency converter NONE
Gross weight 278.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Maximum head 761.8 ft
Maximum operating pressure 362.59 psi
Model A
Motor 284TC
Motor standard NEMA
n rpm 3521rpm
Net weight 157.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump Y
Pump version H
Rated flow 79.3 US gpm
Rated head 644.7 ft
Rubber E
Sales region USA
Shaft Product name:CRN 15-12 H-GA-A-E-HQQE
Shaft seal HQQE
Stages 12
Standard NEMA
Version H

Motor Curves

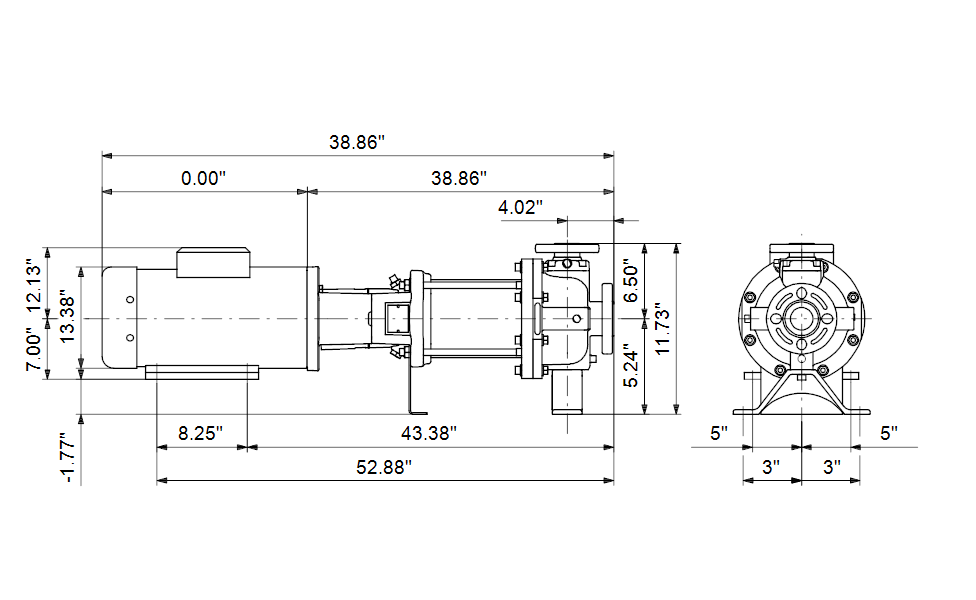

Dimensional Drawing
