Grundfos 97739339 - CRN 15-10 H-G05-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $4,336.92
GRUNDFOSSKU: 97739339

Price:
Sale price$5,796.08 Regular price$10,133.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97739339 - CRN 15-10 H-G05-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 97739339 - CRN 15-10 H-G05-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver reliable and efficient performance in demanding environments.

With its robust construction and advanced design, the CRN series is ideal for boosting pressure in water supply systems, irrigation, and other fluid transfer applications. This model features a multi-stage design that enhances its efficiency and allows for higher pressure capabilities, making it a versatile choice for various operational needs.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

Approvals on nameplate CE
Bearing 1 SIC
Code for rubber V
Code for shaft seal HQQV
Connect code G05
Connection PN 25
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 318.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum head 636.2 ft
Maximum operating pressure 362.59 psi
Model A
Motor 254TC
Motor standard NEMA
n rpm 3497rpm
Net weight 154.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump Y
Pump version H
Rated flow 79.3 US gpm
Rated head 538.4 ft
Rubber V
Sales region USA
Shaft Product name:CRN 15-10 H-G05-A-V-HQQV
Shaft seal HQQV
Stages 10
Standard NEMA
Version H

Motor Curves

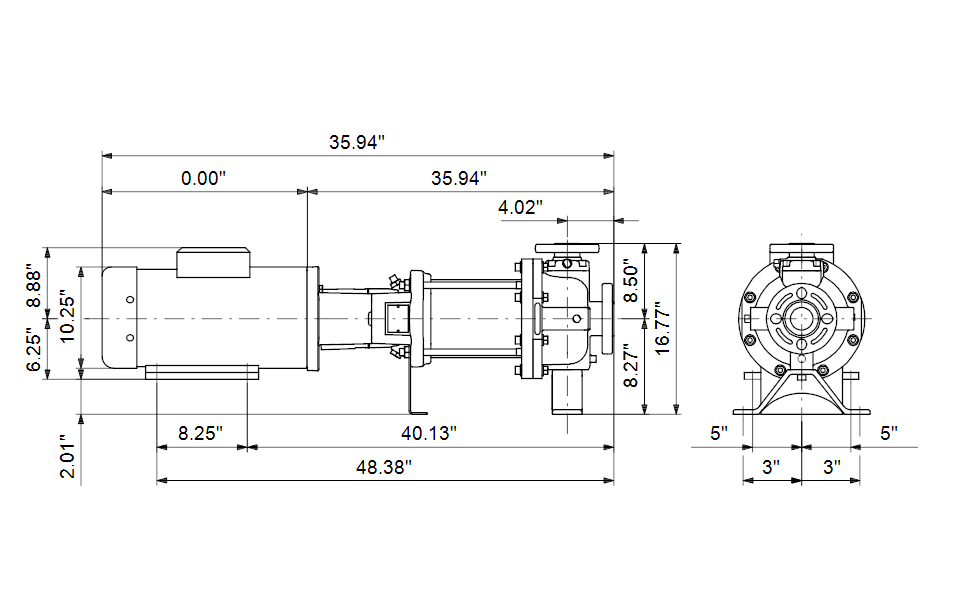

Dimensional Drawing
