Grundfos 97739345 - CRN 15-1 H-G22-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $2,499.52
GRUNDFOSSKU: 97739345

Price:
Sale price$3,340.48 Regular price$5,840.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97739345 - CRN 15-1 H-G22-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 97739345 - CRN 15-1 H-G22-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model ensures reliable operation and efficiency in demanding environments.

This pump is ideal for boosting pressure in water supply systems, industrial processes, and HVAC applications. Its robust construction and advanced design make it suitable for both single and multi-stage configurations, providing versatility for various operational needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 97739345. If you encounter any difficulties in identifying the correct item, our team is here to help you find the perfect solution.

Approvals on nameplate CE,NSF/ANSI 61
Bearing 1 SIC
Code for rubber E
Code for shaft seal HQQE
Connect code G22
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 56C
Frequency converter NONE
Gross weight 203.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Maximum head 63 ft
Maximum operating pressure 232.06 psi
Model A
Motor 56C
Motor standard NEMA
n rpm 3452rpm
Net weight 101.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 74.8 US gpm
Rated head 49.54 ft
Rubber E
Sales region USA
Shaft Product name:CRN 15-1 H-G22-A-E-HQQE
Shaft seal HQQE
Stages 2
Standard NEMA
Version H

Motor Curves

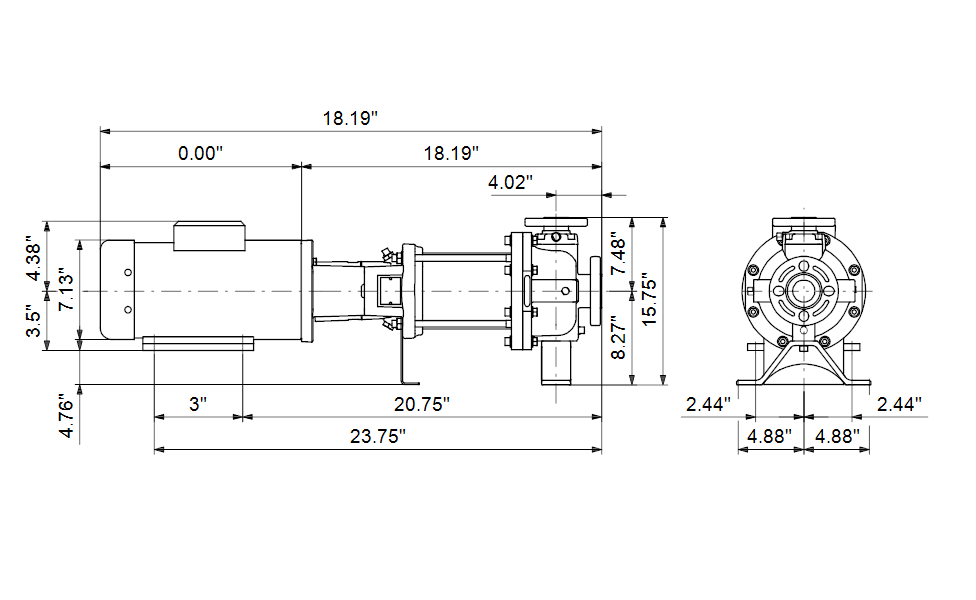

Dimensional Drawing
