Grundfos 97734069 - CRN 15-1 H-G05-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $2,969.04
GRUNDFOSSKU: 97734069

Price:
Sale price$3,967.96 Regular price$6,937.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97734069 - CRN 15-1 H-G05-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 97734069 - CRN 15-1 H-G05-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for boosting water pressure and handling various fluid transfer tasks.

With its robust construction and advanced design, the CRN series is suitable for both horizontal and vertical installations, ensuring versatility in application. This model is part of the Grundfos Centrifugal Pumps range, which includes single and multi-stage options, making it easy to find the right fit for your specific needs.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our knowledgeable team is here to help!

Explore our selection of Grundfos pumps and discover the quality and reliability that comes with the brand. Choose the Grundfos 97734069 - CRN 15-1 H-G05-A-E-HQQE for your pumping needs today!

Approvals on nameplate CURUS,NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G05
Connection PN 16
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 150 lb
Flange size for motor 56C
Frequency 60 Hz
Frequency converter NONE
Gross weight 300.0 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency Product name:CRN 15-1 H-G05-A-E-HQQE
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
IP Class 55 Dust/Jetting
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Maximum ambient temperature 104 °F
Maximum head 63 ft
Maximum operating pressure 232.06 psi
Model A
Motor 56C
Motor efficiency at 1/2 load 86.3-85.0 %
Motor efficiency at 3/4 load 87.4-86.8 %
Motor efficiency at full load 1 85.5-85.5 %
Motor standard NEMA
Motor type 90GB
n rpm F
Net weight 137.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 kW 2 HP
Phase 3
Power (P2) required by pump 2 HP
Power factor 1 0.81-0.78
Pressure rating for connection PN 16
Pressure sensor N
Pump 2 HP
Pump version H
Rated current 6,00-5,80/2,90 A
Rated flow 74.8 US gpm
Rated head 49.54 ft
Rated power - P2 2 HP
Rated speed 3500-3520 rpm
Rated voltage 3 x 208-230YY/460Y V
Rubber E
Sales region USA
Service factor 1.15
Shaft Product name:CRN 15-1 H-G05-A-E-HQQE
Shaft seal HQQE
Stages 2
Standard NEMA
Starting current 800-910 %
Type 90GB
Version H

Motor Curves

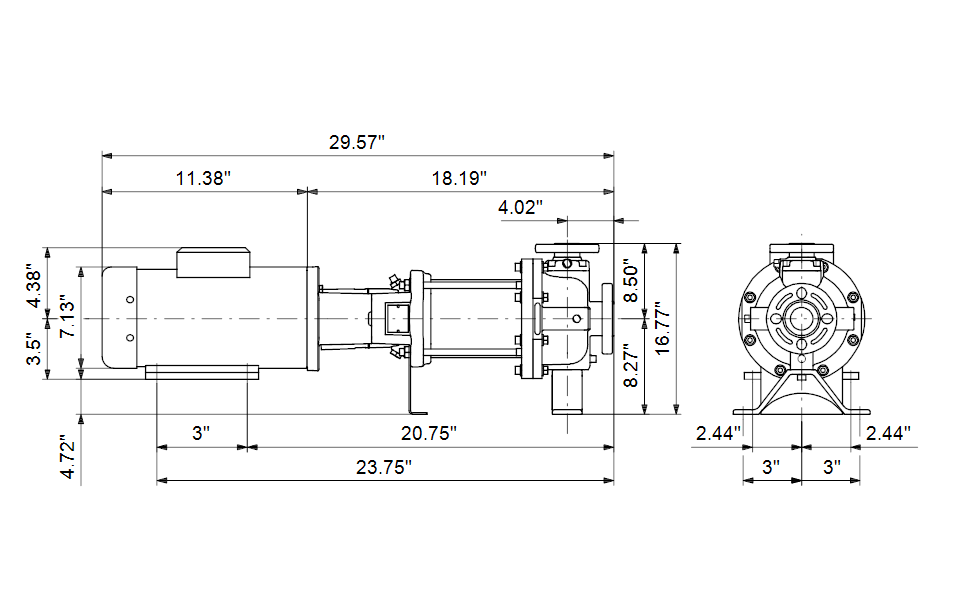

Dimensional Drawing

DWiring Diagram
