Grundfos 99400329 - CRN 125-7-2 A-P-A-V-HQQV
Grundfos 99400329 - CRN 125-7-2 A-P-A-V-HQQV
Grundfos 99400329 - CRN 125-7-2 A-P-A-V-HQQV
Grundfos 99400329 - CRN 125-7-2 A-P-A-V-HQQV

Grundfos 99400329 - CRN 125-7-2 A-P-A-V-HQQV

Save $29,553.60
GRUNDFOSSKU: 99400329
Price:
$32,016.40 $61,570.00
Build to order – stocked components, typically available in 20 days
Chat or Call for most up to date lead times. (781) 281-8905

Description

CRN 125-7-2 A-P-A-V-HQQV | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A built-in thrust-handling device absorbs hydraulic axial forces which enables the use of a standard motor. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings.

EAN 5713828497994
Applications Industrial applications
Material Pricing Group 33
Code for rubber V
Material code A
Density 62.29 lb/ft³
Max pressure at stated temp 363 psi / 194 °F
Maximum operating pressure 580.15 psi
Support bearing Graflon
Selected liquid temperature 68 °F
Type of connection PJE
Bearing 1 WC/WC
Pressure rating 1000 psi
Flange size for motor 445TSD
Pumped liquid Water
Pump outlet 6
Pump inlet 6
Connect code P
Liquid temperature range -4 .. 194 °F
Net weight 487.0 lb
Gross weight 743.0 lb
Power (P2) required by pump 150 HP
Pressure rating for connection 1000 psi
Frequency converter NONE
DOE Pump Energy Index CL 0.92
Stages 7
Rated flow 660 US gpm
Flange standard PJE
Model A
Version A
Diameter 6.38 in
Motor 445TSD
Rubber V
Maximum head 1017 ft
Approvals for drinking water NSF/ANSI 372
Motor standard NEMA
Material certified according to European standards
Thrust handling device SiC/WC
Rated head 783.5 ft
Actual impeller diameter 6.38 in
Curve tolerance ISO9906:2012 3B
Impellers 7
Connection PJE
Impeller Stainless steel
Code for shaft seal HQQV
Pump housing Stainless steel
Number of reduced-diameter impellers 2
Pump 150 HP
Low NPSH N
Standard NEMA
Pump version A

Motor Curves

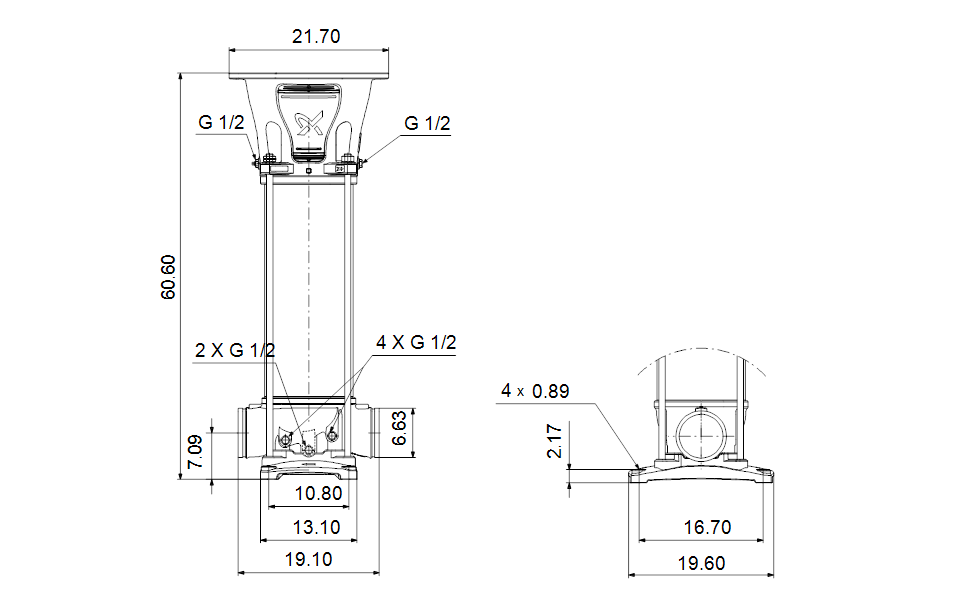

Dimensional Drawing
