Grundfos 99400327 - CRN 125-6-2 A-P-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

Save $23,484.79
GRUNDFOSSKU: 99400327

Price:
Sale price$31,386.21 Regular price$54,871.00
Build to order – stocked components, typically available in 20 days
or Call for most up to date lead times. (781) 281-8905

Description

CRN 125-6-2 A-P-A-V-HQQV Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A built-in thrust-handling device absorbs hydraulic axial forces which enables the use of a standard motor. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings.

EAN 5713828497956
Applications Industrial applications
Actual impeller diameter 6.38 in
Approvals for drinking water NSF/ANSI 372
Bearing 1 WC/WC
Code for rubber V
Code for shaft seal HQQV
Connect code P
Connection PJE
Connection 2 1000 psi
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 6.38 in
DOE Pump Energy Index CL 0.92
Flange size for motor 444TSD
Flange standard PJE
Frequency 60 HZ
Frequency converter NONE
Gross weight 721.0 lb
Impeller Stainless steel
Impellers 6
Liquid max temp 90°C
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material certified according to European standards
Material code A
Material Pricing Group 33
Max pressure at stated temp 363 psi / 194 °F
Maximum head 856.7 ft
Maximum operating pressure 580.15 psi
Maximum permissible operating pressure 40bar
Model A
Motor 444TSD
Motor standard NEMA
n rpm 3563rpm
Net weight 463.0 lb
Number of reduced-diameter impellers 2
Power (P2) required by pump 125 HP
Pressure rating 1000 psi
Pressure rating for connection 1000 psi
Product family CRN 125
Pump 125 HP
Pump housing Stainless steel
Pump inlet 6
Pump outlet 6
Pump version A
Pumped liquid Water
Rated flow 660 US gpm
Rated flow 2 660 US gpm
Rated head 653.2 ft
Rated head 2 653.2 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Shaft seal HQQV
Stages 6
Standard NEMA
Support bearing Graflon
Thrust handling device SiC/WC
Type of connection PJE
Version A

Motor Curves

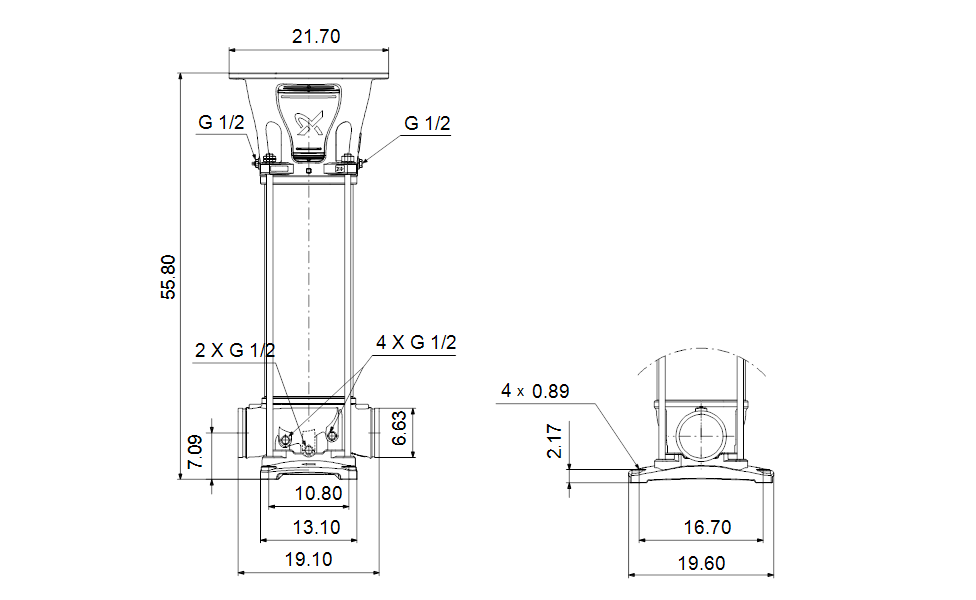

Dimensional Drawing
