Grundfos 99918504 - CRN 125-4 A-P-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $27,099.25
GRUNDFOSSKU: 99918504

Price:
Sale price$36,216.75 Regular price$63,316.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99918504 - CRN 125-4 A-P-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver exceptional efficiency and reliability in demanding environments.

With its robust construction and advanced design, the CRN 125-4 A-P-A-E-HQQE model is ideal for high-pressure applications, making it a perfect choice for those seeking a durable and efficient pumping solution. This pump is part of the CRN series, known for its versatility and adaptability in various settings.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our team is here to help you find the perfect solution for your needs.

EAN 5715114133784
Applications Industrial applications
Actual impeller diameter 6.38 in
Approvals for drinking water NSF/ANSI 61,NSF/ANSI 372
Bearing 1 WC/WC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PJE
Connection 2 1000 psi
Cooling IC 411
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 6.38 in
DOE Pump Energy Index CL 0.93
Enclosure class (IEC 34-5) IP55
Eta 1/1 0.941
Flange size for motor 405TSD
Frequency 60 HZ
Frequency converter NONE
Full load SF current 140 A
Gross weight 2120.0 lb
IE Eff. Class IE3 / NEMA Premium
IE efficiency IE3 94,1%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 4
Insulation F
Insulation class (IEC 85) F
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material certified according to European standards
Material code A
Material Pricing Group 30
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 631.9 ft
Maximum operating pressure 580.15 psi
Maximum permissible operating pressure 40bar
Model A
Motor 405TSD
Motor efficiency at 1/2 load 0.93
Motor efficiency at 3/4 load 0.941
Motor efficiency at full load 1 0.941
Motor protec NONE
Motor standard NEMA
Motor type WEG
n rpm 3545rpm
Net weight 1640.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 HP 100 HP
P2 kW 75kW
Phase 3
Power (P2) required by pump 100 HP
Power factor 1 0.89
Pressure rating 1000 psi
Pressure rating for connection 1000 psi
Product family CRN 125
Pump 100 HP
Pump housing Stainless steel
Pump inlet 6
Pump outlet 6
Pump version A
Pumped liquid Water
Rated current 112 A
Rated flow 660 US gpm
Rated flow 2 660 US gpm
Rated head 492.8 ft
Rated head 2 492.8 ft
Rated power - P2 100 HP
Rated speed 3545 rpm
Rated voltage 3 x 460 V
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.25
Shaft seal HQQE
Stages 4
Standard NEMA
Starting current 6.5
Support bearing Graflon
Thrust handling device SiC/WC
Type WEG
Type of connection PJE
Version A

Motor Curves

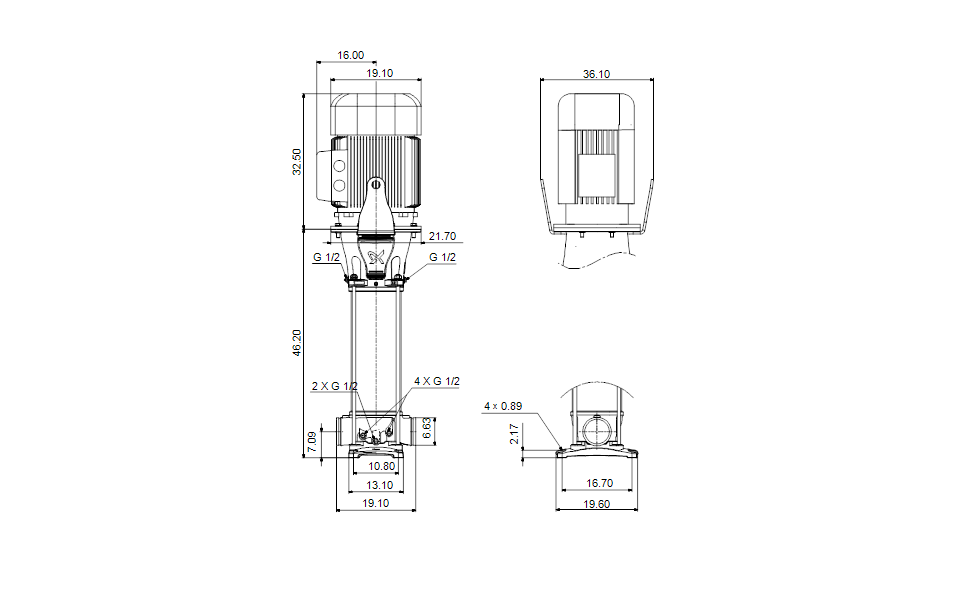

Dimensional Drawing

DWiring Diagram
