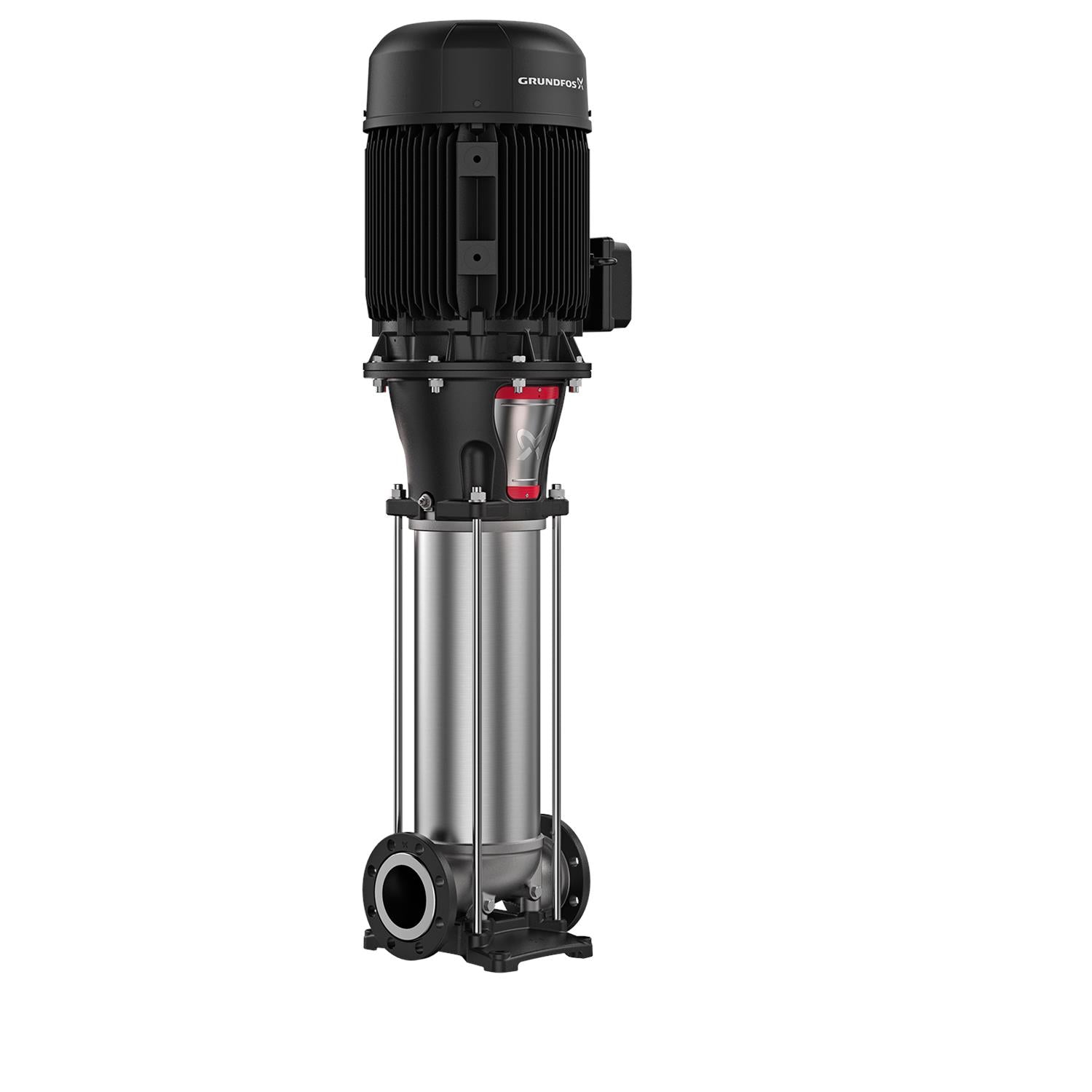

Image shown may not be actual product
Grundfos 99400265 - CRN 125-4-2 A-G-A-E-HQQE
Grundfos 99400265 - CRN 125-4-2 A-G-A-E-HQQE
Grundfos 99400265 - CRN 125-4-2 A-G-A-E-HQQE
Grundfos 99400265 - CRN 125-4-2 A-G-A-E-HQQE

Grundfos 99400265 - CRN 125-4-2 A-G-A-E-HQQE

Save $20,329.44
GRUNDFOSSKU: 99400265
Price:
$22,023.56 $42,353.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99400265 - CRN 125-4-2 A-G-A-E-HQQE This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5713828496621
Applications Industrial applications
Material Pricing Group 33
Code for rubber E
Material code A
Density 62.29 lb/ft³
Max pressure at stated temp 363 psi / 250 °F
Maximum operating pressure 362.59 psi
Support bearing Graflon
Selected liquid temperature 68 °F
Type of connection ANSI
Bearing 1 WC/WC
Pressure rating 300 lb
Flange size for motor 365TSC
Pumped liquid Water
Pump outlet 6
Pump inlet 6
Connect code G
Liquid temperature range -4 .. 248 °F
Net weight 443.0 lb
Gross weight 701.0 lb
Power (P2) required by pump 75 HP
Pressure rating for connection 300 lb
Frequency converter NONE
DOE Pump Energy Index CL 0.92
Stages 4
Rated flow 660 US gpm
Flange standard ANSI
Model A
Version A
Diameter 6.38 in
Motor 365TSC
Rubber E
Maximum head 543 ft
Approvals for drinking water NSF/ANSI 61,NSF/ANSI 372
Motor standard NEMA
Material certified according to European standards
Thrust handling device N
Rated head 400 ft
Actual impeller diameter 6.38 in
Curve tolerance ISO9906:2012 3B
Impellers 4
Connection ANSI
Impeller Stainless steel
Code for shaft seal HQQE
Pump housing Stainless steel
Number of reduced-diameter impellers 2
Pump 75 HP
Low NPSH N
Standard NEMA
Pump version A

Motor Curves

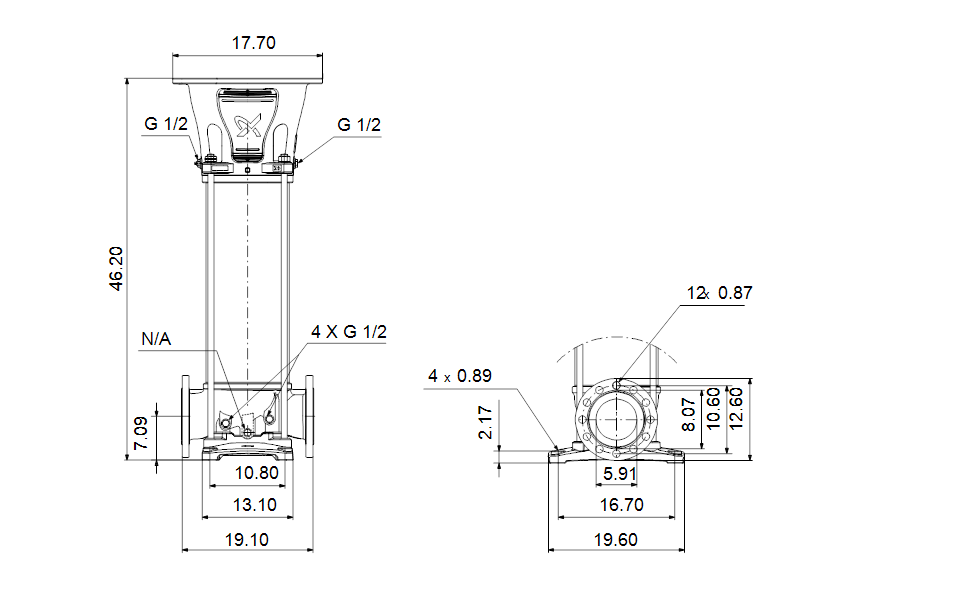

Dimensional Drawing
