Grundfos 99505278 - CRN 125-4-1 A-G-A-V-HQQV
Grundfos 99505278 - CRN 125-4-1 A-G-A-V-HQQV
Grundfos 99505278 - CRN 125-4-1 A-G-A-V-HQQV
Grundfos 99505278 - CRN 125-4-1 A-G-A-V-HQQV

Grundfos 99505278 - CRN 125-4-1 A-G-A-V-HQQV

Save $21,513.12
GRUNDFOSSKU: 99505278
Price:
$23,305.88 $44,819.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

CRN 125-4-1 A-G-A-V-HQQV | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A built-in thrust-handling device absorbs hydraulic axial forces which enables the use of a standard motor. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges.

EAN 5713830186206
Applications Industrial applications
Material Pricing Group 33
Code for rubber V
Material code A
Density 62.29 lb/ft³
Max pressure at stated temp 363 psi / 194 °F
Maximum operating pressure 580.15 psi
Support bearing Graflon
Selected liquid temperature 68 °F
Type of connection ANSI
Bearing 1 WC/WC
Pressure rating 300 lb
Flange size for motor 405TSD
Pumped liquid Water
Pump outlet 6
Pump inlet 6
Connect code G
Liquid temperature range -4 .. 194 °F
Net weight 470.0 lb
Gross weight 728.0 lb
Power (P2) required by pump 100 HP
Pressure rating for connection 300 lb
Frequency converter NONE
DOE Pump Energy Index CL 0.92
Stages 4
Rated flow 660 US gpm
Flange standard ANSI
Model A
Version A
Diameter 6.38 in
Motor 405TSD
Rubber V
Maximum head 589.6 ft
Approvals for drinking water NSF/ANSI 372
Motor standard NEMA
Material certified according to European standards
Thrust handling device SiC/WC
Rated head 450.8 ft
Actual impeller diameter 6.38 in
Curve tolerance ISO9906:2012 3B
Impellers 4
Connection ANSI
Impeller Stainless steel
Code for shaft seal HQQV
Pump housing Stainless steel
Number of reduced-diameter impellers 1
Pump 100 HP
Low NPSH N
Standard NEMA
Pump version A

Motor Curves

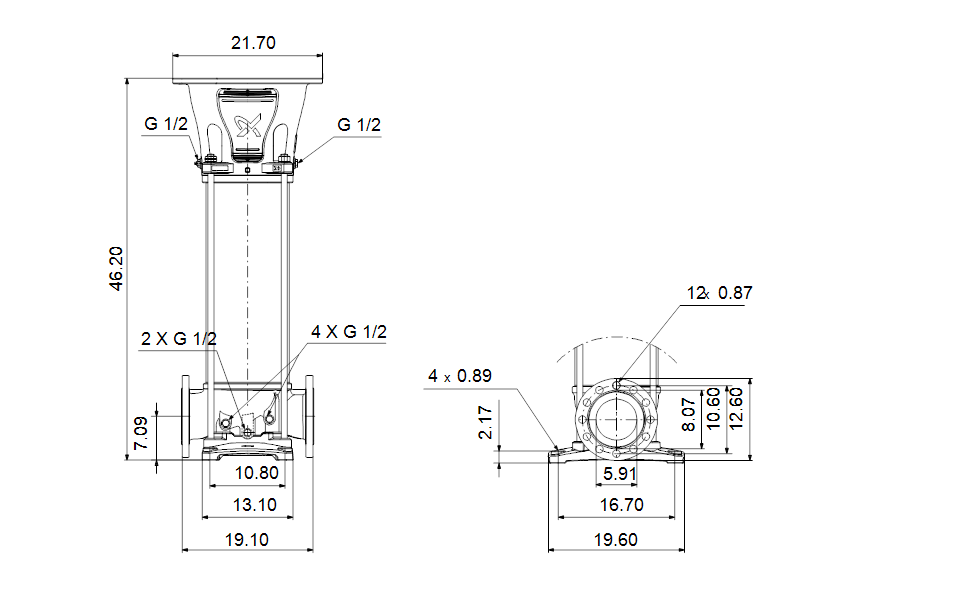

Dimensional Drawing
