Grundfos 92584785 - CRN 125-3 I-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92584785

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 92584785 CRN 125-3 I-G-A-E-HQQE is a vertical, multistage centrifugal pump designed for industrial and commercial installations where high-pressure, in-line pumping is required. It suits technicians and service professionals replacing or upgrading system pumps.

Key features

  • Built for industrial applications and service replacement needs
  • Vertical, multistage centrifugal design for high-pressure, in-line operation
  • Efficient pressure boosting with a compact footprint for tight installations

Applications

Typical uses include high-pressure water boosting, process and plant feed, HVAC systems, and other industrial in-line pumping duties where multistage pressure is needed.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92584785

EAN 5715116649405
Actual impeller diameter 6.38 in
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection 300 lb
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 6.38 in
DOE Pump Energy Index CL 0.93
Enclosure class (IEC 34-5) IP55
Flange size for motor 365TSC
Frequency converter NONE
IE efficiency IE3 93
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Maximum ambient temperature 104 °F
Maximum head 475.1 ft
Maximum operating pressure 25 bar
Model A
Motor 365TSC
Motor efficiency at 1/2 load 0.924
Motor efficiency at 3/4 load 0.936
Motor efficiency at full load 1 0.936
Motor standard NEMA
Motor type WEG
Net weight 1310.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power factor 1 0.9
Pressure rating for connection 300 lb
Pressure sensor N
Pump speed on which pump data are based 3551 rpm
Pump version I
Pumped liquid Water
Rated current 164/81.9 A
Rated flow 660 US gpm
Rated head 364.5 ft
Rated power - P2 55 kW
Rated speed 3555 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.25
Size of inlet connection 6 inch
Size of outlet connection 6 inch
Stages 3
Standard NEMA
Starting current 6.7
Support bearing Graflon
Type WEG
Type of connection ANSI
Version I

Motor Curves

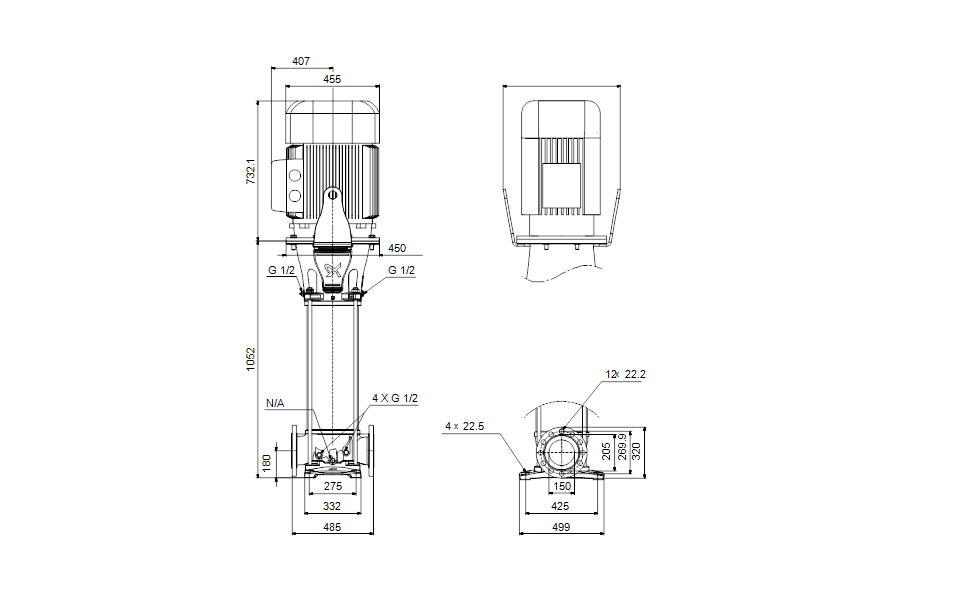

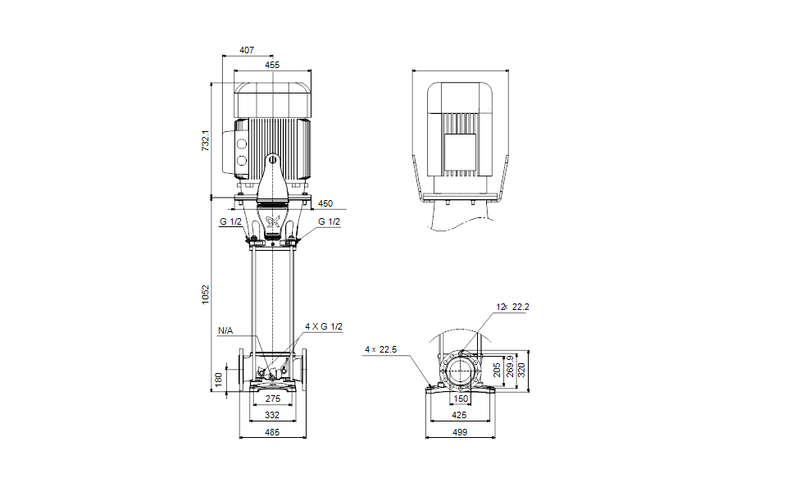

Dimensional Drawing

DWiring Diagram
