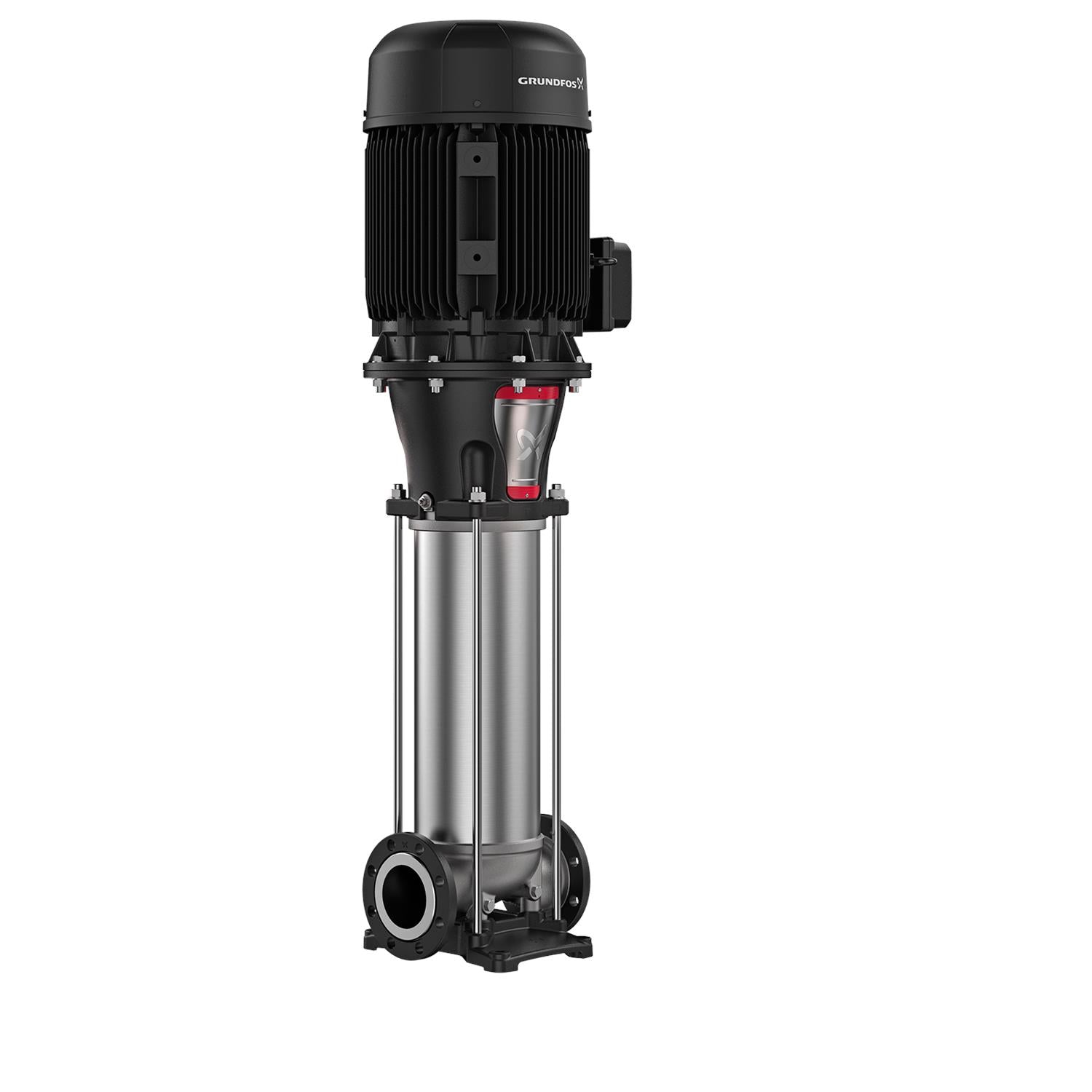

Grundfos 99400262 - CRN 125-2 A-G-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

Save $13,988.75
GRUNDFOSSKU: 99400262

Price:
Sale price$18,695.25 Regular price$32,684.00
Build to order – stocked components, typically available in 10 days
or Call for most up to date lead times. (781) 281-8905

Description

CRN 125-2 A-G-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges.

EAN 5713828496560
Applications Industrial applications
Actual impeller diameter 6.38 in
Approvals for drinking water NSF/ANSI 61,NSF/ANSI 372
Bearing 1 WC/WC
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection ANSI
Connection 2 150 lb
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 6.38 in
DOE Pump Energy Index CL 0.92
Flange size for motor 326TSC
Flange standard ANSI
Frequency 60 HZ
Frequency converter NONE
Gross weight 626.0 lb
Impeller Stainless steel
Impellers 2
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material certified according to European standards
Material code A
Material Pricing Group 33
Max pressure at stated temp 232 psi / 250 °F
Maximum head 319.6 ft
Maximum operating pressure 232.06 psi
Maximum permissible operating pressure 16bar
Model A
Motor 326TSC
Motor standard NEMA
n rpm 3541rpm
Net weight 368.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 50 HP
Pressure rating 150 lb
Pressure rating for connection 150 lb
Product family CRN 125
Pump 50 HP
Pump housing Stainless steel
Pump inlet 6
Pump outlet 6
Pump version A
Pumped liquid Water
Rated flow 660 US gpm
Rated flow 2 660 US gpm
Rated head 240.5 ft
Rated head 2 240.5 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Shaft seal HQQE
Stages 2
Standard NEMA
Support bearing Graflon
Thrust handling device N
Type of connection ANSI
Version A

Motor Curves

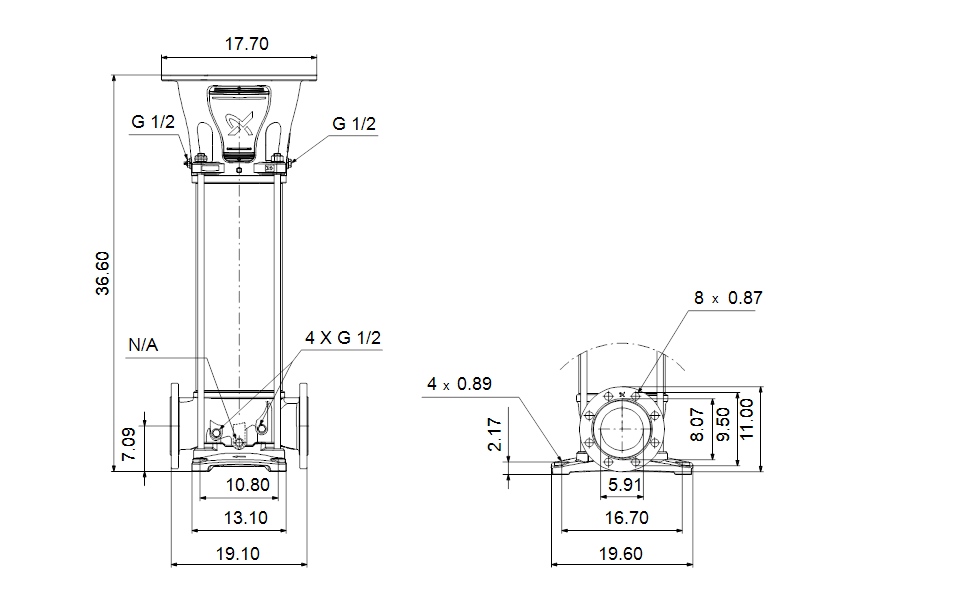

Dimensional Drawing
