Description

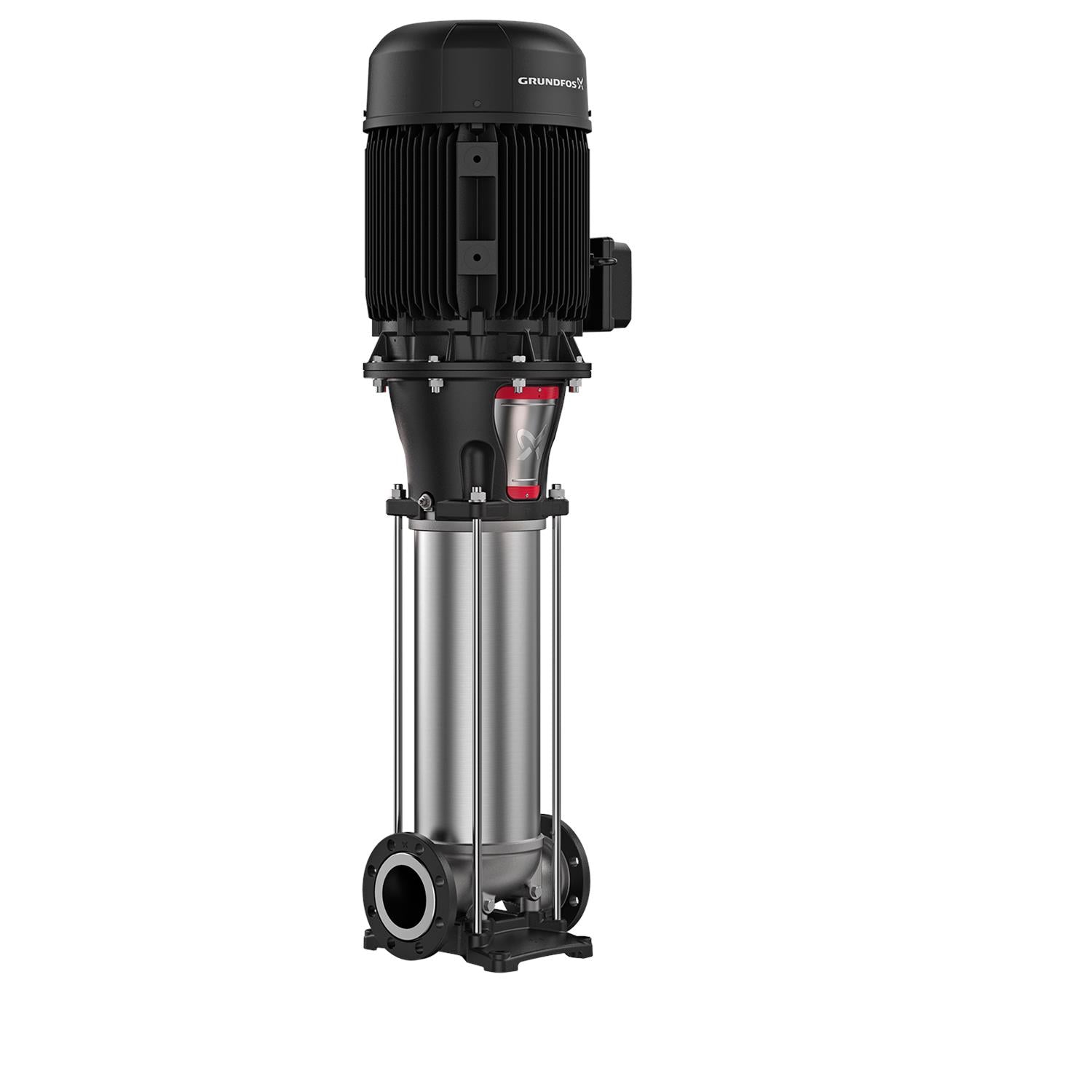

CRN 125-2-2 A-G-A-E-HQQE | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges.
EAN
5713828496522
Applications
Industrial applications
Material Pricing Group
33
Code for rubber
E
Material code
A
Density
62.29 lb/ft³
Max pressure at stated temp
232 psi / 250 °F
Maximum operating pressure
232.06 psi
Support bearing
Graflon
Selected liquid temperature
68 °F
Type of connection
ANSI
Bearing 1
WC/WC
Pressure rating
150 lb
Flange size for motor
286TC
Pumped liquid
Water
Pump outlet
6
Pump inlet
6
Connect code
G
Liquid temperature range
-4 .. 248 °F
Net weight
355.0 lb
Gross weight
613.0 lb
Power (P2) required by pump
30 HP
Pressure rating for connection
150 lb
Frequency converter
NONE
DOE Pump Energy Index CL
0.92
Stages
2
Rated flow
660 US gpm
Flange standard
ANSI
Model
A
Version
A
Diameter
6.38 in
Motor
286TC
Rubber
E
Maximum head
234.9 ft
Approvals for drinking water
NSF/ANSI 61,NSF/ANSI 372
Motor standard
NEMA
Material certified according to
European standards
Thrust handling device
N
Rated head
154.9 ft
Actual impeller diameter
6.38 in
Curve tolerance
ISO9906:2012 3B
Impellers
2
Connection
ANSI
Impeller
Stainless steel
Code for shaft seal
HQQE
Pump housing
Stainless steel
Number of reduced-diameter impellers
2
Pump
30 HP
Low NPSH
N
Standard
NEMA
Pump version
A
Motor Curves

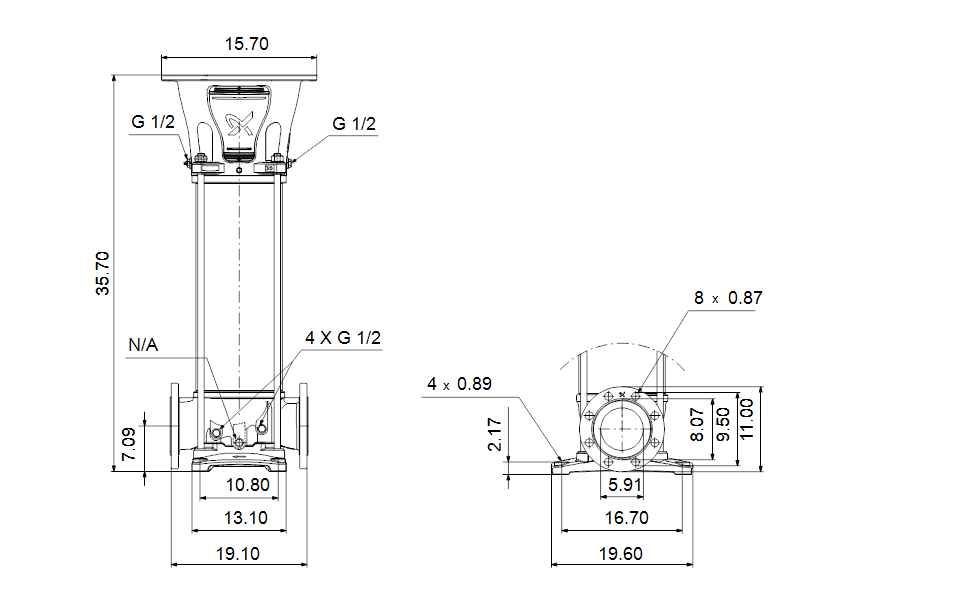

Dimensional Drawing
