Grundfos 97737769 - CRN 10-7 H-G05-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $2,883.01
GRUNDFOSSKU: 97737769

Price:
Sale price$3,852.99 Regular price$6,736.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97737769 - CRN 10-7 H-G05-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 97737769 - CRN 10-7 H-G05-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver reliable and efficient performance in demanding environments.

With its robust construction and advanced design, the CRN 10-7 H-G05-A-V-HQQV model is ideal for boosting pressure and transporting fluids in various systems. This pump is part of the Grundfos Centrifugal Pumps range, which includes both single and multi-stage options, ensuring you find the right fit for your needs.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility.

Explore our extensive selection of Grundfos pumps, including booster, centrifugal, end suction, horizontal multistage, and multi-stage types. Trust Pump-Stop for all your pumping solutions!

Approvals on nameplate CE
Bearing 1 SIC
Code for rubber V
Code for shaft seal HQQV
Connect code G05
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 295.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum head 326.1 ft
Maximum operating pressure 232.06 psi
Model A
Motor 213TC
Motor standard NEMA
n rpm 3461rpm
Net weight 132.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 52.8 US gpm
Rated head 260.2 ft
Rubber V
Sales region USA
Shaft Product name:CRN 10-7 H-G05-A-V-HQQV
Shaft seal HQQV
Stages 7
Standard NEMA
Version H

Motor Curves

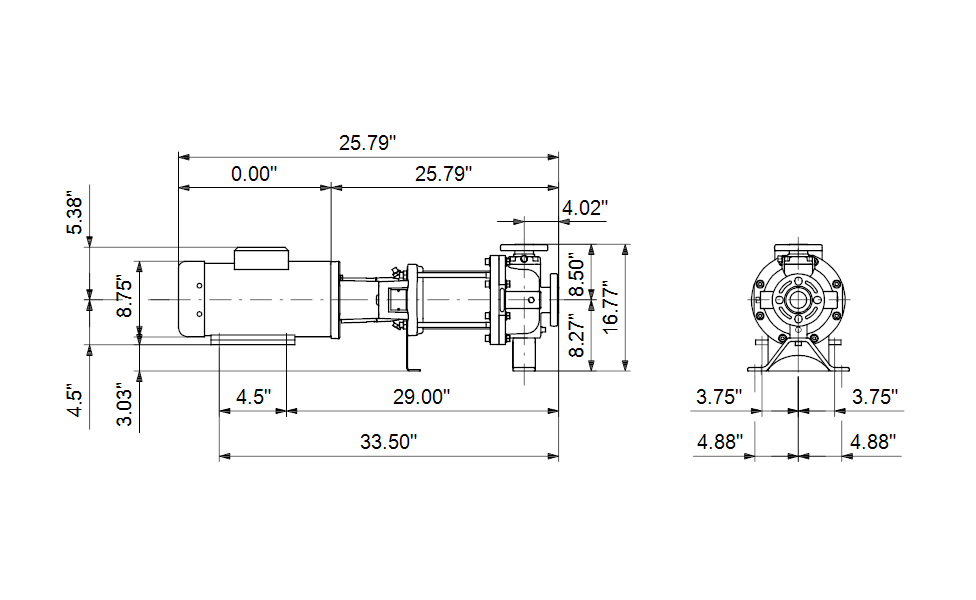

Dimensional Drawing
