Grundfos 92507522 - CRN 10-5 A-P-A-V-HQQK | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 92507522

Price:
Sale price$10,909.72
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRN 10-5 A-P-A-V-HQQK Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings.

EAN 5715115465013
Actual impeller diameter 3.66 in
Approvals CE
Code for rubber V
Code for shaft seal HQQK
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Diameter 3.66 in
DOE Pump Energy Index CL 0.87
Flange size for motor 182TC
Frequency converter NONE
Gross weight 92.6 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum head 241.8 ft
Maximum operating pressure 25 bar
Model A
Motor 182TC
Motor standard NEMA
Net weight 75.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 50
Pressure sensor N
Pump speed on which pump data are based 3461 rpm
Pump version A
Rated flow 53.3 US gpm
Rated head 191.3 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 5
Standard NEMA
Type of connection PJE
Version A

Motor Curves

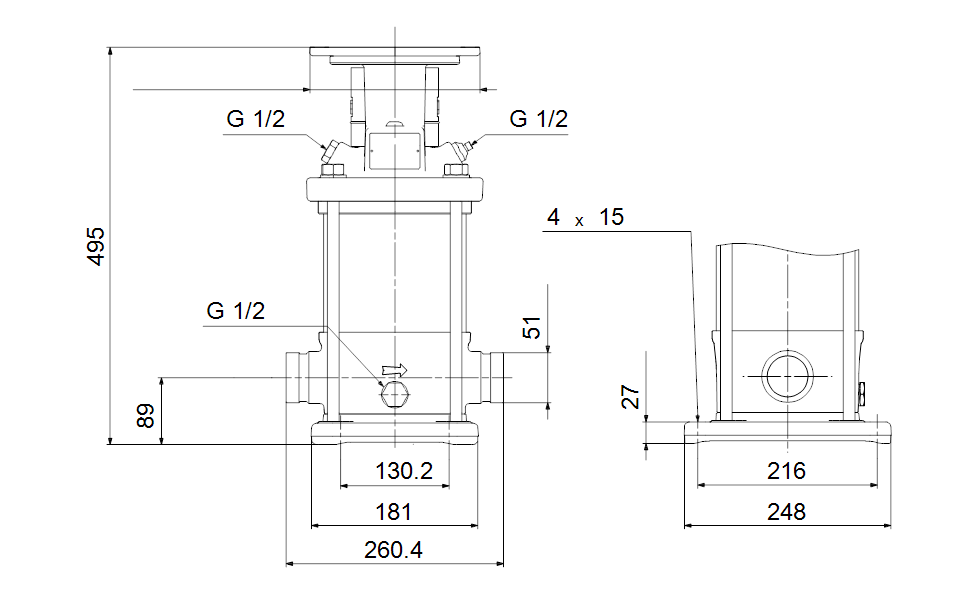

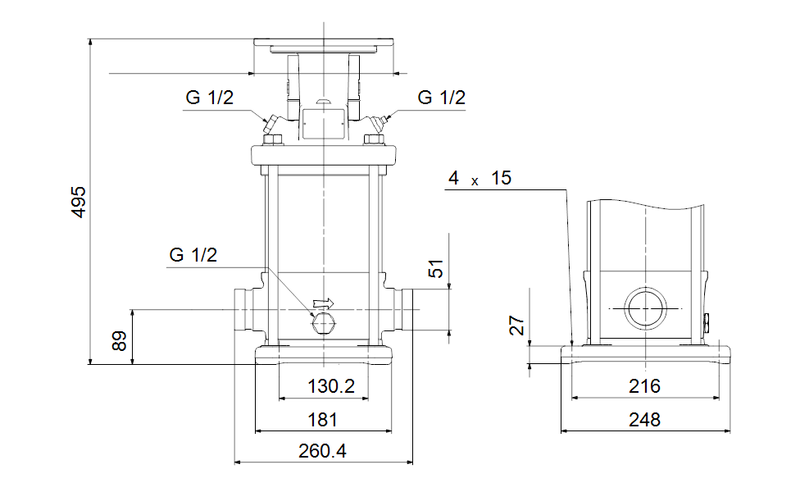

Dimensional Drawing
