Grundfos 97736461 - CRN 10-3 H-G05-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $2,226.46
GRUNDFOSSKU: 97736461

Price:
Sale price$2,975.54 Regular price$5,202.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97736461 - CRN 10-3 H-G05-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver reliable and efficient performance in demanding environments.

This model features a robust construction that ensures durability and longevity, making it an ideal choice for both booster and centrifugal pumping needs. With its advanced design, the CRN series is perfect for applications requiring high pressure and flow rates.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 97736461. If you encounter any difficulties in locating the right item, our knowledgeable team is here to help.

Explore our extensive range of Grundfos centrifugal pumps, including single and multi-stage options, and discover the perfect solution for your pumping needs.

Approvals on nameplate CE
Bearing 1 SIC
Code for rubber V
Code for shaft seal HQQV
Connect code G05
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 182TC
Frequency converter NONE
Gross weight 282.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum head 139.4 ft
Maximum operating pressure 232.06 psi
Model A
Motor 182TC
Motor standard NEMA
n rpm 3461rpm
Net weight 119.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 52.8 US gpm
Rated head 112.2 ft
Rubber V
Sales region USA
Shaft Product name:CRN 10-3 H-G05-A-V-HQQV
Shaft seal HQQV
Stages 3
Standard NEMA
Version H

Motor Curves

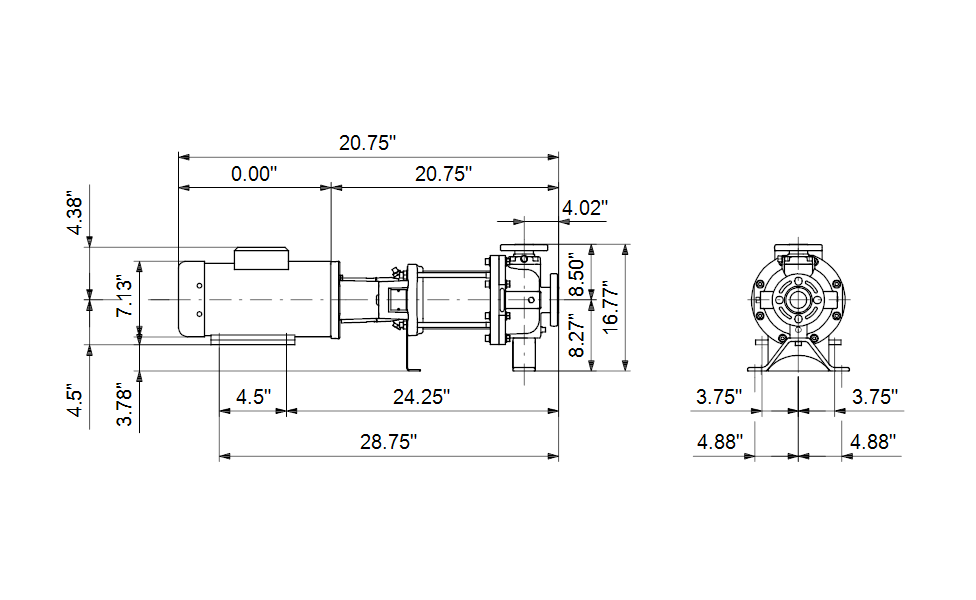

Dimensional Drawing
