Grundfos 99917426 - CRN 10-16 A-P-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

Save $5,770.72
GRUNDFOSSKU: 99917426

Price:
Sale price$7,712.28 Regular price$13,483.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

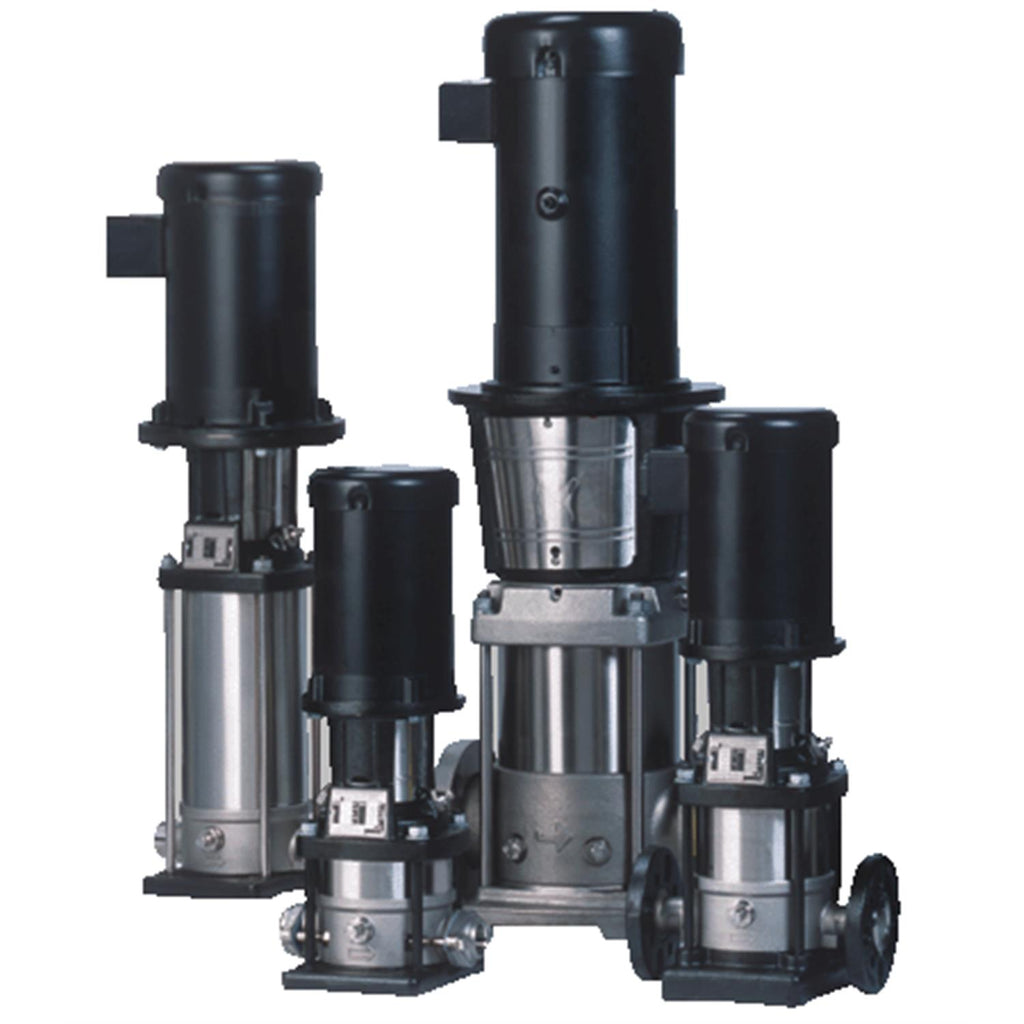

CRN 10-16 A-P-A-V-HQQV Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5715114122313
Applications Industrial applications
Actual impeller diameter 3.66 in
Approvals CURUS
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code P
Connection PJE
Connection 2 DN 50
Connection 3 DN 50
Connection 4 PN 50
Cooling IC 01
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) IP21
Eta 1/1 0.902
Flange size for motor 254TC
Frequency 60 HZ
Frequency converter NONE
Full load SF current 40.5/20.2 A
Gross weight 410.0 lb
IE Eff. Class IE3 / NEMA Premium
IE efficiency IE3 90,2%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 16
Insulation F
Insulation class (IEC 85) F
Liquid max temp 90°C
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 104 °F
Maximum head 771 ft
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 254TC
Motor efficiency at 1/2 load 0.902
Motor efficiency at 3/4 load 0.902
Motor efficiency at full load 1 0.902
Motor protec NONE
Motor standard NEMA
Motor type WEG
n rpm 3545rpm
Net weight 295.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 HP 15 HP
P2 kW 11kW
Phase 3
Power (P2) required by pump 15 HP
Power factor 1 0.87
Pressure rating PN 50
Pressure rating for connection PN 50
Product family CRN 10
Pump 15 HP
Pump housing Stainless steel
Pump inlet DN 50
Pump outlet DN 50
Pump version A
Pumped liquid Water
Rated current 35.2/17.6 A
Rated flow 53.3 US gpm
Rated flow 2 53.3 US gpm
Rated head 603.7 ft
Rated head 2 603.7 ft
Rated power - P2 15 HP
Rated speed 3545 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.15
Shaft seal HQQV
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 16
Standard NEMA
Starting current 7.5
Type WEG
Type of connection PJE
Version A

Motor Curves

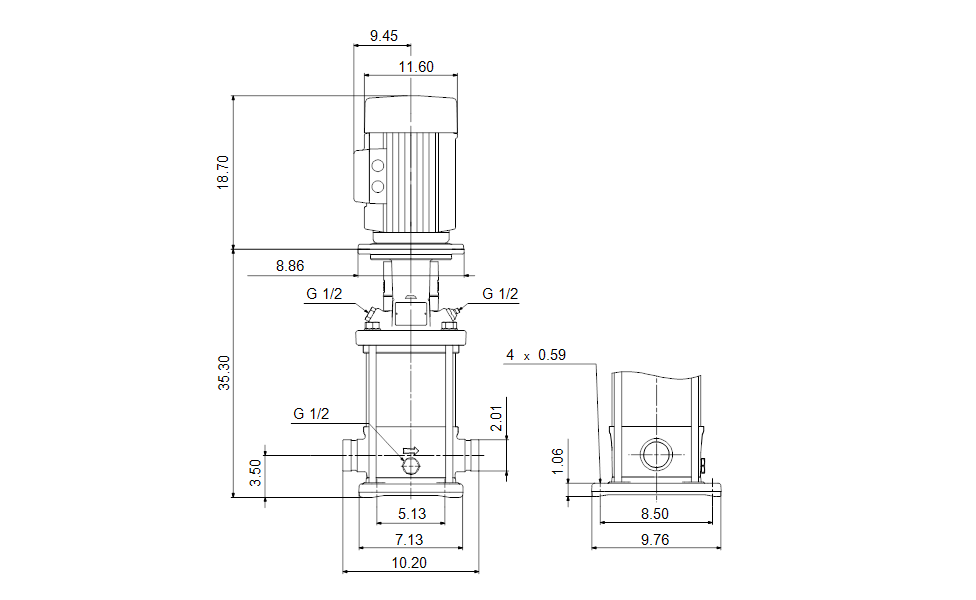

Dimensional Drawing

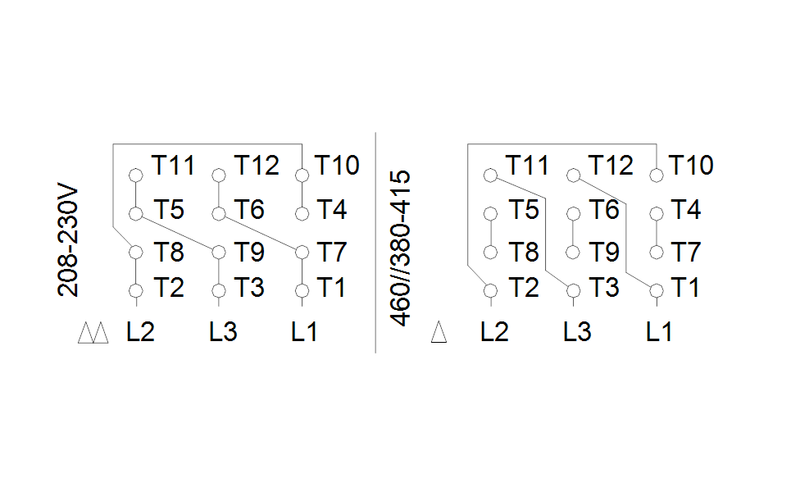

DWiring Diagram
