Grundfos 98161444 - CRN 10-16 A-P-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 98161444 - CRN 10-16 A-P-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure systems.

This model features a robust construction and is part of the CR series, known for its versatility and durability. It is suitable for various applications, including water supply, pressure boosting, and industrial processes. The CRN 10-16 A-P-A-E-HQQE is specifically designed to handle demanding conditions while ensuring optimal efficiency.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the 98161444. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5710629594648
Actual impeller diameter 3.66 in
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FF265
Frequency converter NONE
Gross weight 251.0 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 534.8 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF265
Motor efficiency at 1/2 load 89.6-88.4 %
Motor efficiency at 3/4 load 90.0-89.8 %
Motor efficiency at full load 1 89.2-89.2 %
Motor standard IEC
Motor type 132DA
Net weight 203.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 5.5 kW
Power factor 1 0.87-0.82
Pressure rating for connection PN 50
Pressure sensor N
Pump 5.5 kW
Pump speed on which pump data are based 2919 rpm
Pump version A
Pumped liquid Water
Rated current 19.0/11.0 A
Rated flow 44 US gpm
Rated head 424.6 ft
Rated power - P2 5.5 kW
Rated speed 2920-2940 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 16
Standard IEC
Starting current 1080-1180 %
Type 132DA
Type of connection PJE
Version A

Motor Curves

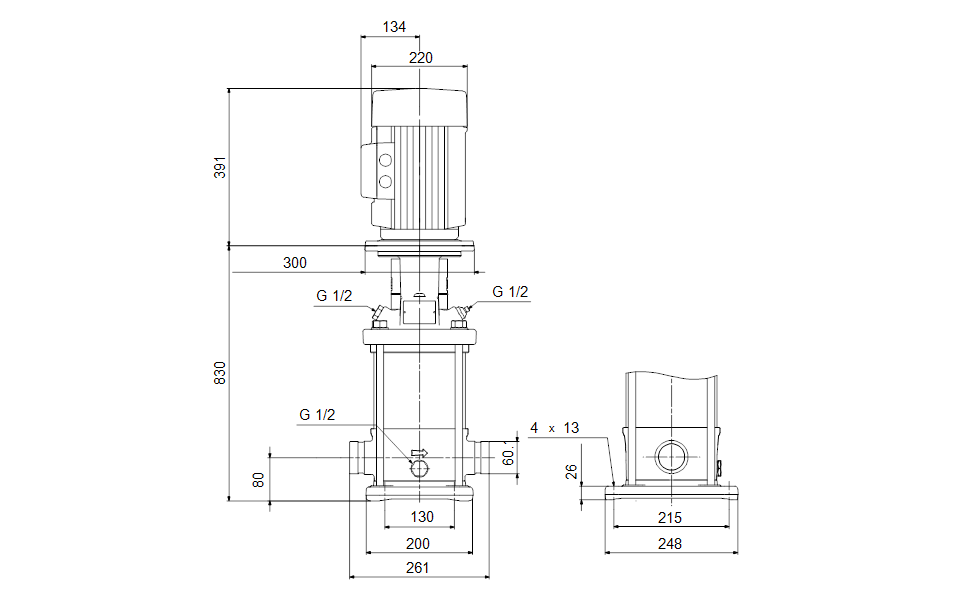

Dimensional Drawing

DWiring Diagram
