Grundfos 96126888 - CRN 10-16 A-FGJ-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $4,331.79
GRUNDFOSSKU: 96126888

Price:
Sale price$5,789.21 Regular price$10,121.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 96126888 - CRN 10-16 A-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 96126888 - CRN 10-16 A-FGJ-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure water transfer and circulation tasks.

This model features a robust construction that ensures durability and longevity, even in demanding environments. With its multistage design, the CRN 10-16 provides excellent pressure capabilities, making it suitable for various applications including water supply, irrigation, and industrial processes.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5700396999586
Applications Industrial applications
Actual impeller diameter 3.66 in
Approvals CE
Bearing 1 SIC
Code for rubber V
Code for shaft seal HQQV
Connect code FGJ
Connection DIN / ANSI / JIS
Connection 2 DN 50
Connection 3 DN 50
Connection 4 PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index CL 0.87
Flange rating inlet 300 lb
Flange size for motor 254TC
Frequency 60 HZ
Frequency converter NONE
Gross weight 236.0 lb
Impeller Stainless steel
Impellers 16
Liquid max temp 90°C
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum head 771 ft
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 254TC
Motor standard NEMA
n rpm 3444rpm
Net weight 121.0 lb
Number of reduced-diameter impellers 0
Pressure rating PN 25
Pressure rating for connection PN 25
Product family CRN 10
Pump housing Stainless steel
Pump inlet DN 50
Pump outlet DN 50
Pump version A
Pumped liquid Water
Rated flow 53.3 US gpm
Rated flow 2 53.3 US gpm
Rated head 603.7 ft
Rated head 2 603.7 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Shaft seal HQQV
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 16
Standard NEMA
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

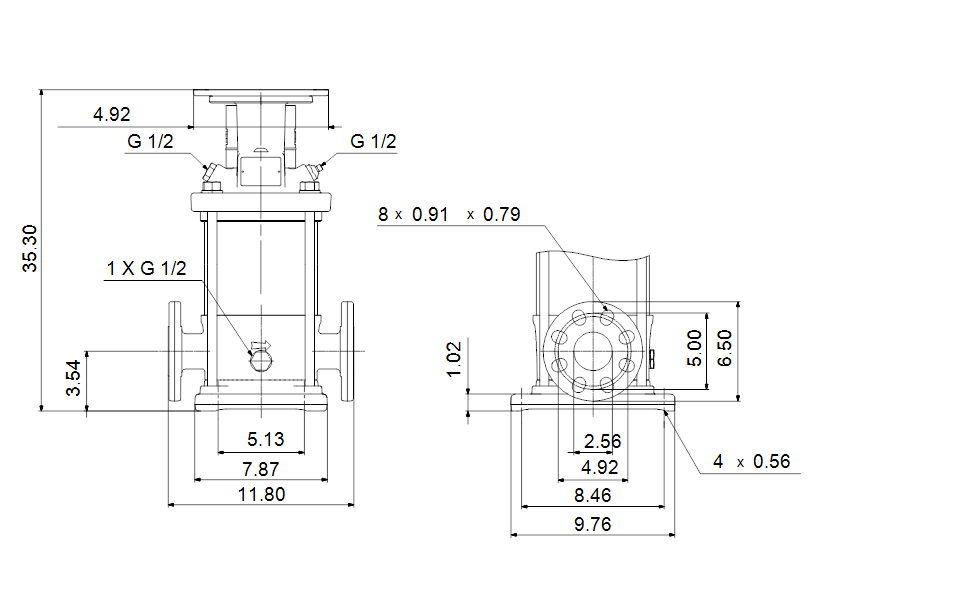

Dimensional Drawing
