Grundfos 99837188 - CRN 10-14 EF-FGJ-A-F-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 99837188

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRN 10-14 EF-FGJ-A-F-HQQE | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5713834977923
Actual impeller diameter 3.66 in
Approvals EAC
Built-in motor protection PTC
Code for rubber F
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 300 lb
Flange size for motor FF265
Frequency converter NONE
Gross weight 287.0 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 356 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 356 °F
Maximum ambient temperature 140 °F
Maximum head 469.2 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF265
Motor efficiency at 1/2 load 89.6-88.4 %
Motor efficiency at 3/4 load 90.0-89.8 %
Motor efficiency at full load 1 89.2-89.2 %
Motor standard IEC
Motor type 132DA
Net weight 225.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 5.5 kW
Power factor 1 0.87-0.82
Pressure rating for connection PN 25
Pressure sensor N
Pump 5.5 kW
Pump speed on which pump data are based 2919 rpm
Pump version EF
Pumped liquid Water
Rated current 0.4583333333333333
Rated flow 44 US gpm
Rated head 375.3 ft
Rated power - P2 5.5 kW
Rated speed 2920-2940 rpm
Rated voltage 3 x 380-415D V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber F
Selected liquid temperature 68 °F
Size of inlet connection DN 40
Size of outlet connection DN 40
Stages 14
Standard IEC
Starting current 1080-1180 %
Type 132DA
Type of connection DIN / ANSI / JIS
Version EF

Motor Curves

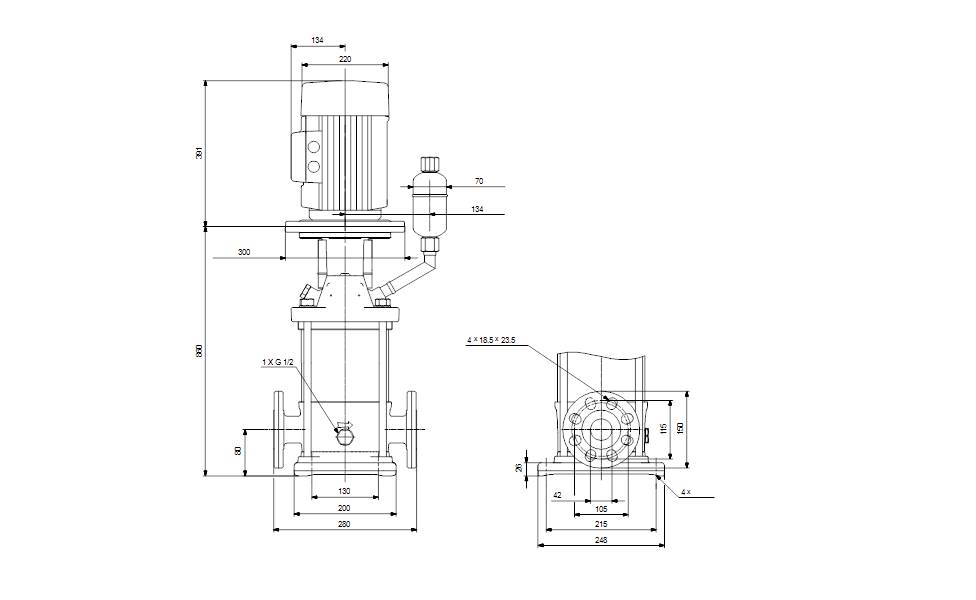

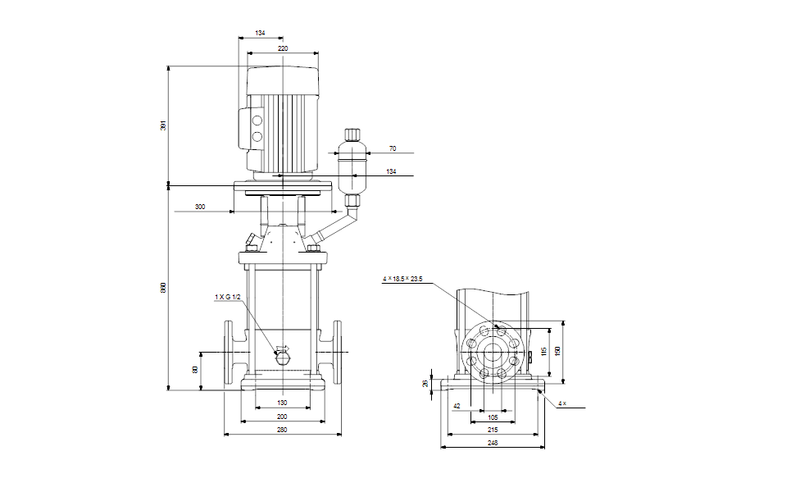

Dimensional Drawing

DWiring Diagram
