Grundfos 97737794 - CRN 10-14 H-GA-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $3,834.45
GRUNDFOSSKU: 97737794

Price:
Sale price$5,124.55 Regular price$8,959.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97737794 - CRN 10-14 H-GA-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for boosting water pressure and handling various fluid transfer tasks.

This model features a robust construction and advanced design, ensuring optimal performance in demanding environments. The CRN series is known for its versatility and is suitable for both horizontal and vertical installations, providing flexibility in system design.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team. We are here to help you find the perfect solution for your pumping needs.

Approvals on nameplate CE
Bearing 1 SIC
Code for rubber V
Code for shaft seal HQQV
Connect code GA
Connection PN 25
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 269.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum head 657.2 ft
Maximum operating pressure 362.59 psi
Model A
Motor 254TC
Motor standard NEMA
n rpm 3470rpm
Net weight 148.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump Y
Pump version H
Rated flow 52.8 US gpm
Rated head 490.5 ft
Rubber V
Sales region USA
Shaft Product name:CRN 10-14 H-GA-A-V-HQQV
Shaft seal HQQV
Stages 14
Standard NEMA
Version H

Motor Curves

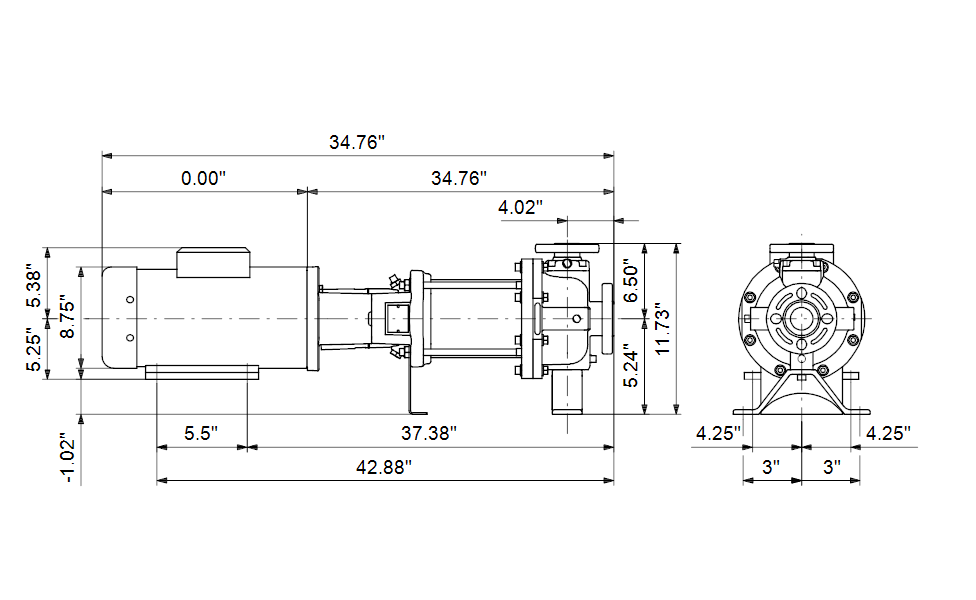

Dimensional Drawing
