Grundfos 99917331 - CRN 10-12 A-P-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $6,185.46
GRUNDFOSSKU: 99917331

Price:
Sale price$8,266.54 Regular price$14,452.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99917331 - CRN 10-12 A-P-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver exceptional efficiency and reliability in demanding environments.

This model features a robust construction that ensures durability and longevity, making it an ideal choice for high-pressure applications. The CRN series is known for its versatility and adaptability, allowing it to be used in various settings, including water supply, irrigation, and process industries.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the 99917331 to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715114121347
Applications Industrial applications
Actual impeller diameter 3.66 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PJE
Connection 2 DN 50
Connection 3 DN 50
Connection 4 PN 50
Cooling IC 411
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) IP55
Eta 1/1 0.865
Flange size for motor 213TC
Frequency 60 HZ
Frequency converter NONE
Full load SF current 42.5/43.8 A
Gross weight 278.0 lb
IE efficiency 0.865
Impeller Stainless steel
Impellers 12
Insulation F
Insulation class (IEC 85) F
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 580.7 ft
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 213TC
Motor efficiency at 1/2 load 0.815
Motor efficiency at 3/4 load 0.855
Motor efficiency at full load 1 0.865
Motor protec NONE
Motor standard NEMA
Motor type WEG
n rpm 3510rpm
Net weight 256.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 HP 10 HP
P2 kW 7.5kW
Phase 1
Power (P2) required by pump 10 HP
Power factor 1 0.99
Pressure rating PN 50
Pressure rating for connection PN 50
Product family CRN 10
Pump 10 HP
Pump housing Stainless steel
Pump inlet DN 50
Pump outlet DN 50
Pump version A
Pumped liquid Water
Rated current 42.5-38.1 A
Rated flow 53.3 US gpm
Rated flow 2 53.3 US gpm
Rated head 462 ft
Rated head 2 462 ft
Rated power - P2 10 HP
Rated speed 3510 rpm
Rated voltage 1 x 208-230 V
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Shaft seal HQQE
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 12
Standard NEMA
Starting current 720-720 %
Type WEG
Type of connection PJE
Version A

Motor Curves

Dimensional Drawing

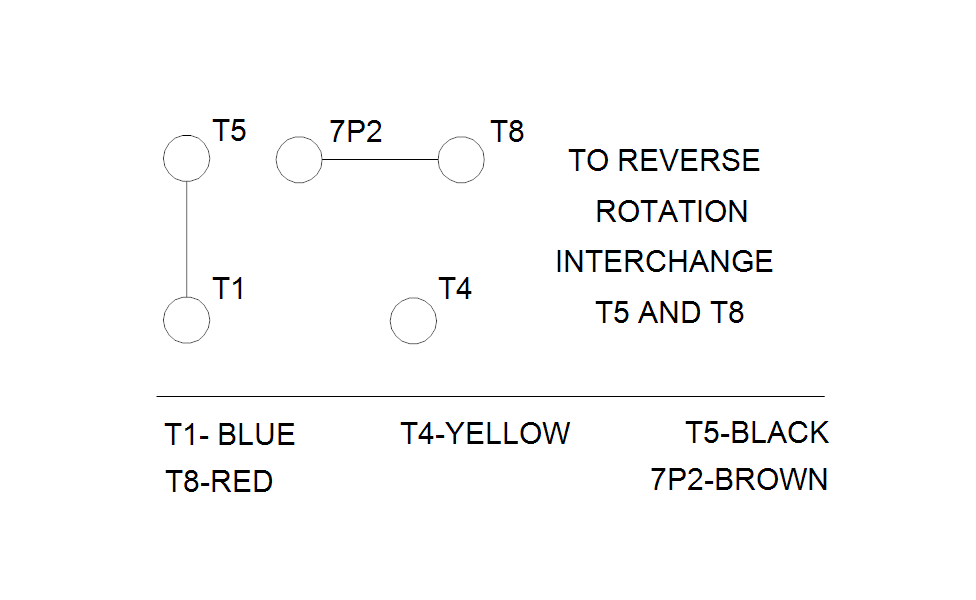

DWiring Diagram
