Grundfos 92511164 - CRN 10-12 A-CX-A-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92511164

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 92511164 - CRN 10-12 A-CX-A-V-HQQV is a vertical multistage centrifugal pump assembly intended for industrial and commercial high-pressure fluid handling. It suits service and repair applications where a reliable replacement pump is needed.

Key features

  • Manufactured for industrial service use and workshop replacement
  • Configured as a vertical, in-line multistage centrifugal design for high-pressure applications
  • Provides dependable pressure boosting and repeatable performance for system maintenance and repairs

Applications

Typical uses include boiler feed, pressure boosting, industrial process circulation, and other high-pressure vertical multistage duties where compact footprint and staged pressure are required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92511164

EAN 5715115534566
Actual impeller diameter 3.66 in
Approvals CURUS
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code CX
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) 54 Dust/Splashing
Flange size for motor 213TC
Frequency converter NONE
Gross weight 295.0 lb
IE efficiency IE3 91%
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 104 °F
Maximum head 577.5 ft
Maximum operating pressure 25 bar
Model A
Motor 213TC
Motor efficiency at full load 1 0.91
Motor standard NEMA
Motor type BALDOR
Net weight 276.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 7.5 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 7.5 kW
Pump speed on which pump data are based 3470 rpm
Pump version A
Pumped liquid Water
Rated current 24.8-23.8/11.9 A
Rated flow 53.3 US gpm
Rated head 446.5 ft
Rated power - P2 7.5 kW
Rated speed 3525 rpm
Rated voltage 3 x 208-230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 12
Standard NEMA
Type BALDOR
Type of connection TriClamp
Version A

Motor Curves

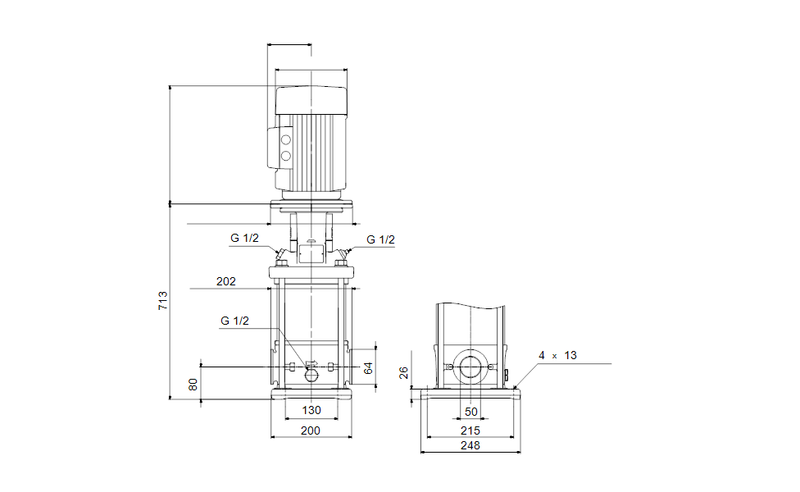

Dimensional Drawing

DWiring Diagram
