Grundfos 98160711 - CRN 1-9 A-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $1,578.24
GRUNDFOSSKU: 98160711

Price:
Sale price$1,709.76 Regular price$3,288.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98160711 - CRN 1-9 A-FGJ-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver exceptional efficiency and reliability in demanding environments.

This model is part of the CRN series, known for its robust construction and versatility. It is ideal for high-pressure applications and is suitable for both single and multi-stage operations. The CRN 1-9 A-FGJ-A-E-HQQE is specifically tagged as a Service Special, making it a perfect choice for those seeking dependable performance in critical systems.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our knowledgeable team is here to help!

Explore our extensive range of centrifugal pumps, including options for high pressure, inline, and vertical multistage configurations. Trust Grundfos for quality and performance in your pumping solutions.

EAN 5710629587794
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange rating inlet 300 lb
Flange size for motor FT85
Frequency converter NONE
Gross weight 56.1 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 183.7 ft
Maximum operating pressure 25 bar
Model A
Motor FT85
Motor standard IEC
Net weight 50.1 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.55 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 0.55 kW
Pump speed on which pump data are based 2856 rpm
Pump version A
Pumped liquid Water
Rated flow 7.93 US gpm
Rated head 140.8 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 9
Standard IEC
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

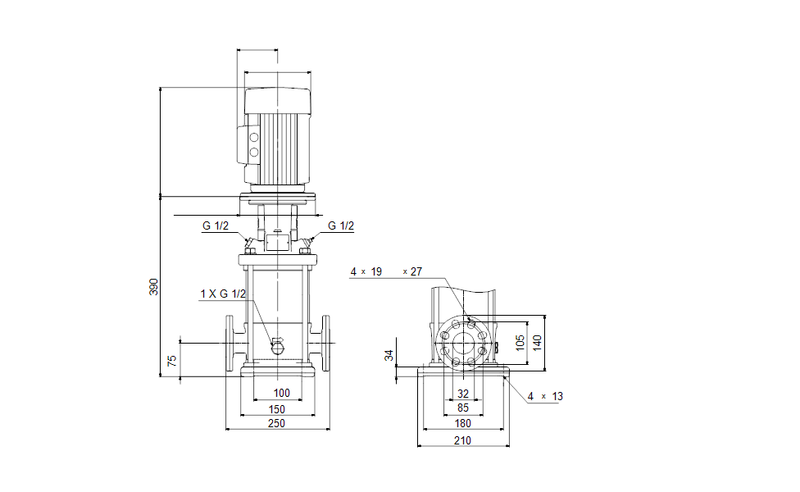

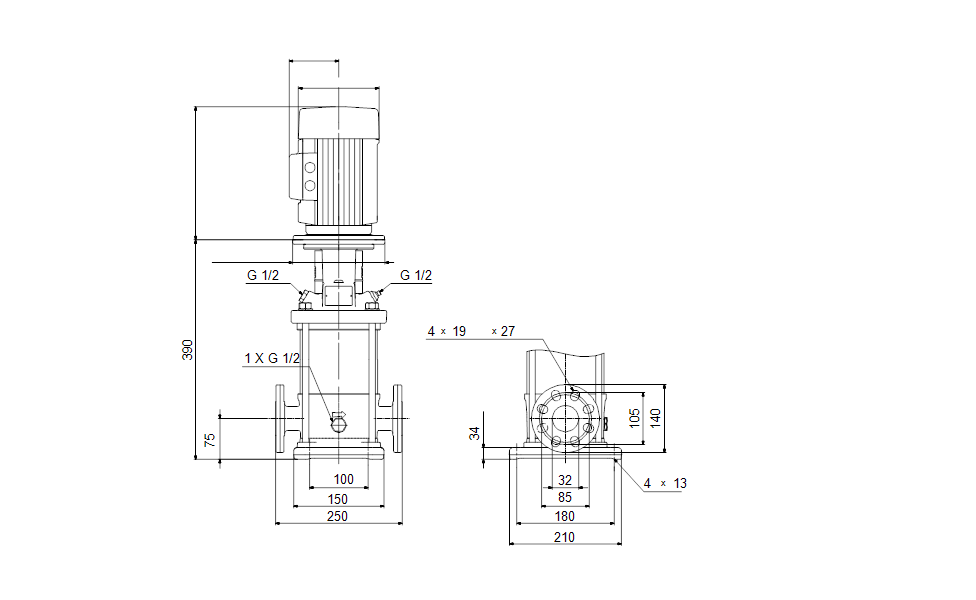

Dimensional Drawing
