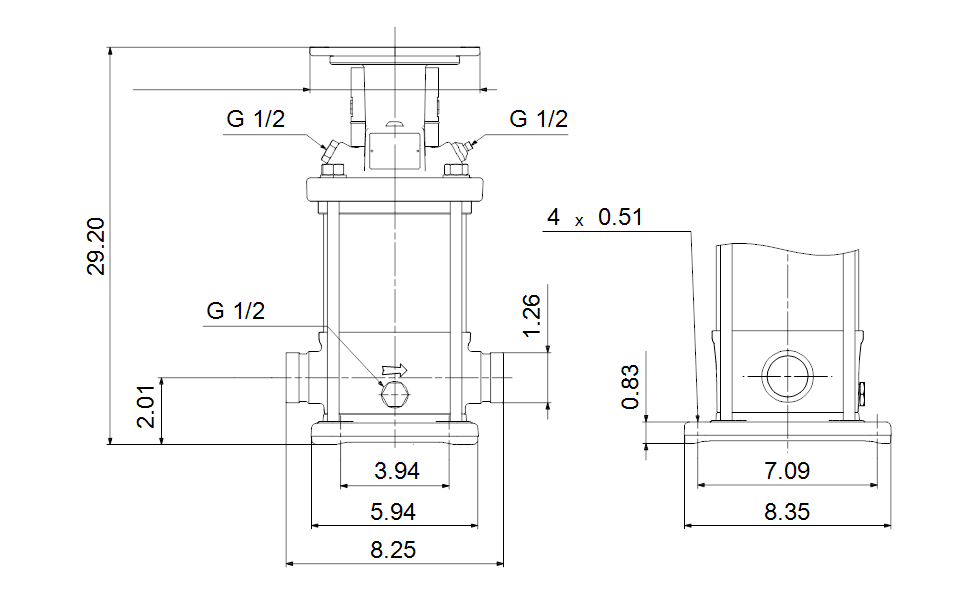

Image shown may not be actual product
Grundfos 96082774 - CRN 1-27 A-P-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline
Grundfos 96082774 - CRN 1-27 A-P-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline
Roll over image to zoom in Click on image to zoom
Grundfos 96082774 - CRN 1-27 A-P-A-V-HQQV | Multistage | Centrifugal | Vertical | InlineGrundfos 96082774 - CRN 1-27 A-P-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline
Grundfos Pumps & Systems

Grundfos 96082774 - CRN 1-27 A-P-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

GrundfosSKU: 96082774
Price:
$6,467.00

Build to order – stocked components, typically available in 5 days

or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CRN 1-27 A-P-A-V-HQQV · Vertical Multistage Centrifugal Pump — All Stainless
CRN

The Grundfos 96082774 (CRN 1-27 A-P-A-V-HQQV) is a Vertical Multistage Centrifugal Pump — All Stainless. All wetted parts in stainless steel EN 1.4401 (316). For food, beverage, pharmaceutical, and chemical applications where iron contamination must be avoided.

Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

All Stainless Steel Construction

Every wetted component — impeller, chambers, shaft, head — is stainless steel EN 1.4401 (316). No iron contact with the pumped fluid under any condition.

Corrosion-Resistant for Aggressive Fluids

316 stainless resists chlorides, mild acids, and alkaline cleaning agents. CRN is the preferred selection for food processing, pharmaceutical, and chemical dosing systems.

Cartridge Mechanical Seal

Factory-set cartridge seal eliminates field adjustment on installation. Seal options cover standard water through aggressive chemical service.

Dual Flange Standard — DIN, ANSI, JIS

CRN ships with combined DIN/ANSI/JIS flange connections. One pump fits piping standards across North American and international installations.

3-A and FDA-Compliant Options

Selected CRN configurations are 3-A certified for dairy and food processing. FDA-compliant elastomers available on request.

Wide Pressure Range

CRN series covers up to 60 bar operating pressure across pump sizes. Confirm your system maximum working pressure before selecting.

Model Information — CRN 1-27 A-P-A-V-HQQV
Series: CRN
Model Code: CRN 1-27 A-P-A-V-HQQV
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, V FKM O-ring
Technical Specifications
Model Number 96082774
Product Series CRN
Series Description Vertical Multistage Centrifugal Pump — All Stainless
Seal Code HQQV
Seal Description Cartridge seal — H rubber bellows, QQ SiC/SiC faces, V FKM O-ring
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation.
Temperature limits Do not exceed max fluid temperature per nameplate. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CRN pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CRN Series
✓ Product Data Sheet — CRN 1-27 A-P-A-V-HQQV
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Grundfos — 96082774 · CRN 1-27 A-P-A-V-HQQVAuthorized Grundfos Distributor · pump-stop.com
EAN
5700395175127
Applications
Industrial applications
Approvals
CE
Bearing 1
SIC
Code for rubber
V
Code for shaft seal
HQQV
Connect code
P
Connection
PJE
Connection 2
DN 32
Connection 3
DN 32
Connection 4
PN 50
Curve tolerance
ISO9906:2012 3B
Density
62.29 lb/ft³
Flange size for motor
182TC
Flange standard
PJE
Frequency
60 HZ
Frequency converter
NONE
Gross weight
68.2 lb
Impeller
Stainless steel
Impellers
27
Liquid max temp
90°C
Liquid temperature range
-4 .. 194 °F
Low NPSH
N
Material code
A
Material Pricing Group
6
Max pressure at stated temp
363 psi / 194 °F
Maximum head
787.1 ft
Maximum operating pressure
362.59 psi
Maximum permissible operating pressure
25bar
Model
A
Motor
182TC
Motor standard
NEMA
n rpm
3461rpm
Net weight
50.3 lb
Number of reduced-diameter impellers
0
Power (P2) required by pump
3 HP
Pressure rating
PN 50
Pressure rating for connection
PN 50
Product family
CRN 1
Pump
3 HP
Pump housing
Stainless steel
Pump inlet
DN 32
Pump outlet
DN 32
Pump version
A
Pumped liquid
Water
Rated flow
9.69 US gpm
Rated flow 2
9.69 US gpm
Rated head
582.4 ft
Rated head 2
582.4 ft
Real Time
Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber
V
Selected liquid temperature
68 °F
Shaft seal
HQQV
Size of inlet connection
DN 32
Size of outlet connection
DN 32
Stages
27
Standard
NEMA
Type of connection
PJE
Version
A
