Grundfos 92568205 - CRN 1-25 A-FGJ-A-K-HQQK | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 92568205

Price:
Sale price$13,784.72
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRN 1-25 A-FGJ-A-K-HQQK Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges.

EAN 5715116396187
Approvals CE
Code for rubber K
Code for shaft seal HQQK
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 182TC
Frequency converter NONE
Gross weight 75.5 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range 32 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 731 ft
Maximum operating pressure 25 bar
Model A
Motor 182TC
Motor standard NEMA
Net weight 57.5 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3461 rpm
Pump version A
Rated flow 9.69 US gpm
Rated head 544 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber K
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 25
Standard NEMA
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

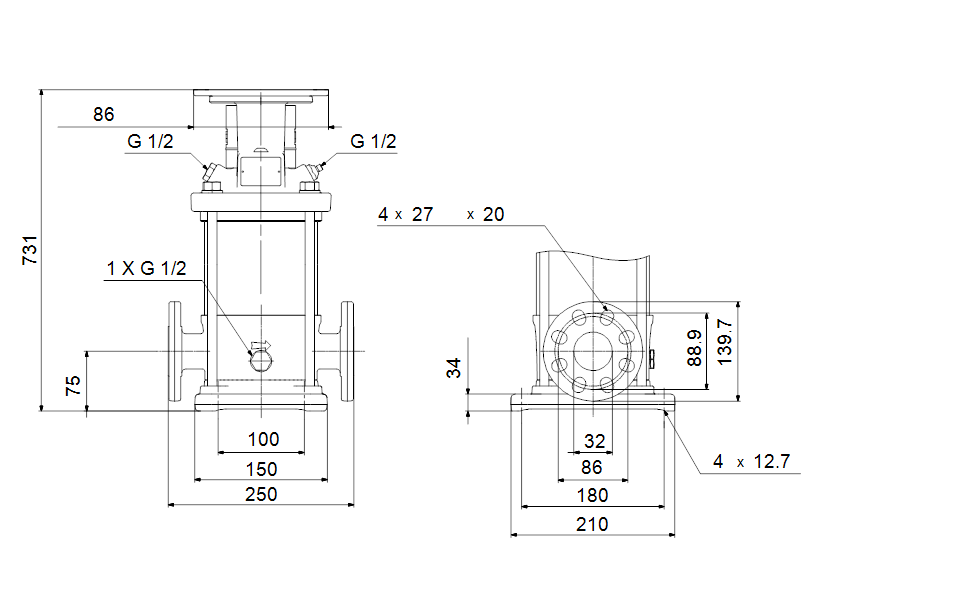

Dimensional Drawing
