Grundfos 98160676 - CRN 1-13 A-P-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $2,019.84
GRUNDFOSSKU: 98160676

Price:
Sale price$2,188.16 Regular price$4,208.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98160676 - CRN 1-13 A-P-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 98160676 - CRN 1-13 A-P-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure systems.

This model is part of the CRN series, known for its robust construction and versatility. It is suitable for various service special applications and is categorized under centrifugal pumps, including both single and multi-stage options. The CRN 1-13 A-P-A-V-HQQV is particularly effective in high-pressure scenarios, ensuring optimal fluid transfer in demanding environments.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5710629587442
Code for rubber V
Code for shaft seal HQQV
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FT100
Frequency converter NONE
Gross weight 58.4 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum head 264.8 ft
Maximum operating pressure 25 bar
Model A
Motor FT100
Motor standard IEC
Net weight 52.1 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.75 kW
Pressure rating for connection PN 50
Pressure sensor N
Pump 0.75 kW
Pump speed on which pump data are based 2864 rpm
Pump version A
Pumped liquid Water
Rated flow 7.93 US gpm
Rated head 201.1 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 13
Standard IEC
Type of connection PJE
Version A

Motor Curves

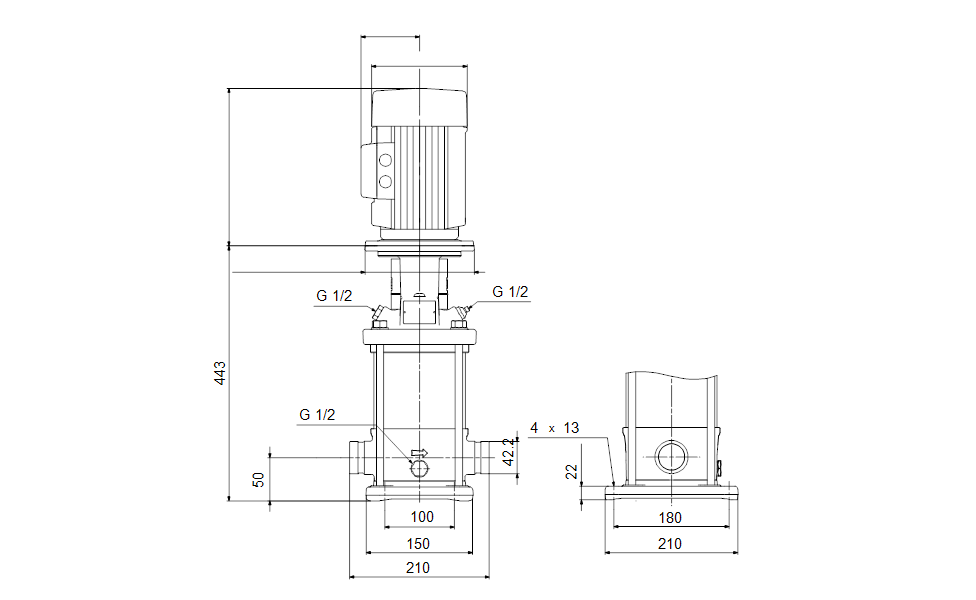

Dimensional Drawing
